ETS-Lindgren Open Boundary Quad-Ridged Horn Antennas

Product Features

Frequency range: 300MHz-18GHz
3164-05: 2 GHz to 18 GHz — Linear or Circular Polarization (With Hybrid); Low Side Lobes Compact Design; Flat Gain for Upper 2/3 of Range
3164-06: 300 MHz to 6 GHz — Linear or Circular Polarization (With Hybrid); Compact Design; Flat Gain for Upper 2/3 of Range
3164-08: 700 MHz to 10 GHz — Linear or Circular Polarization (With Hybrid); Low VSWR with Improved Gain; Compact Design
3164-10: 400 MHz to 10 GHz — Excellent Gain Over Entire Range; Dual Polarization; Compact, Lightweight Design
3164-11: 1 GHz to 18 GHz — Flat Gain for Upper 80% of Range; Dual Linearly Polarized Compact Design; Flexible Mounting Schemes
Official ETS-Lindgren product
Enquire for quotation and configuration

Model 3164-05 3164-06 3164-08 3164-10 3164-11

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

ETS-Lindgren Open Boundary Quad-Ridged Horn Antennas

ETS-Lindgren open boundary quad-ridged horns are dual linearly polarized broadband horns that measure two orthogonal polarizations simultaneously, for EMC, microwave and antenna pattern measurements.

Models

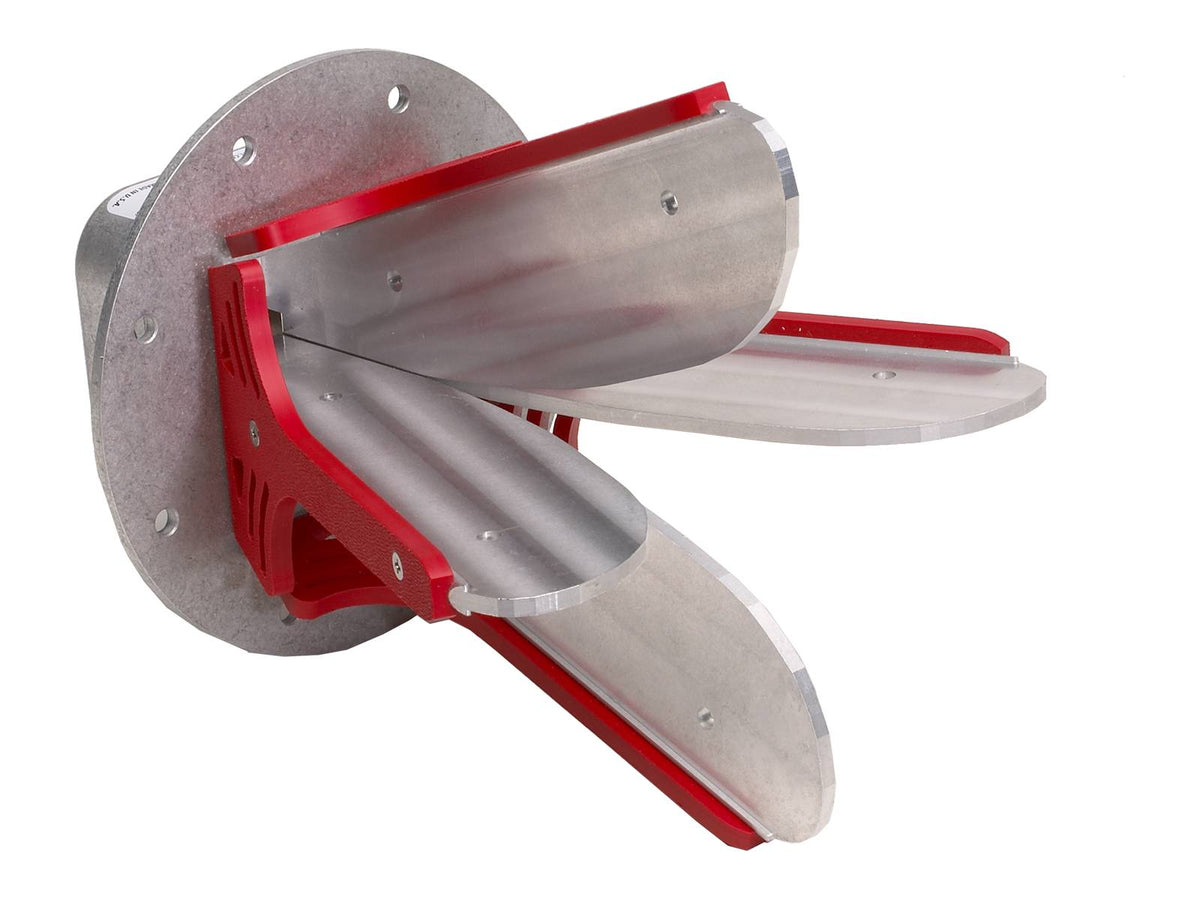

3164-05 Open Boundary Quad-Ridged Horn — Model 3164-05 Open Boundary Quad-ridged Horn has an open boundary design, making this antenna unique in appearance and performance. Frequency range: 2 GHz to 18 GHz.

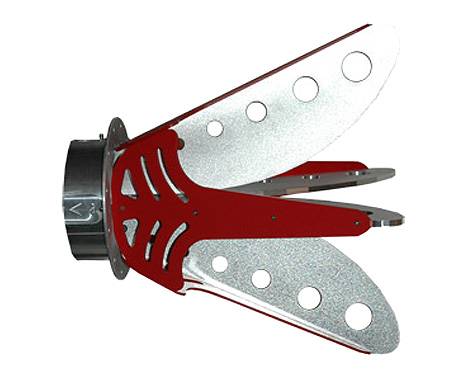

3164-06 Open Boundary Quad-Ridged Horn — The Model 3164-06 Open Boundary Quad-ridged Horn Antenna’s open boundary design is similar to two double-ridged waveguide antennas placed orthogonally to each other, and its surprisingly compact size offers improved pattern and gain when compared with enclosed quad-ridged horns of similar dimensions. Frequency range: 300 MHz to 6 GHz.

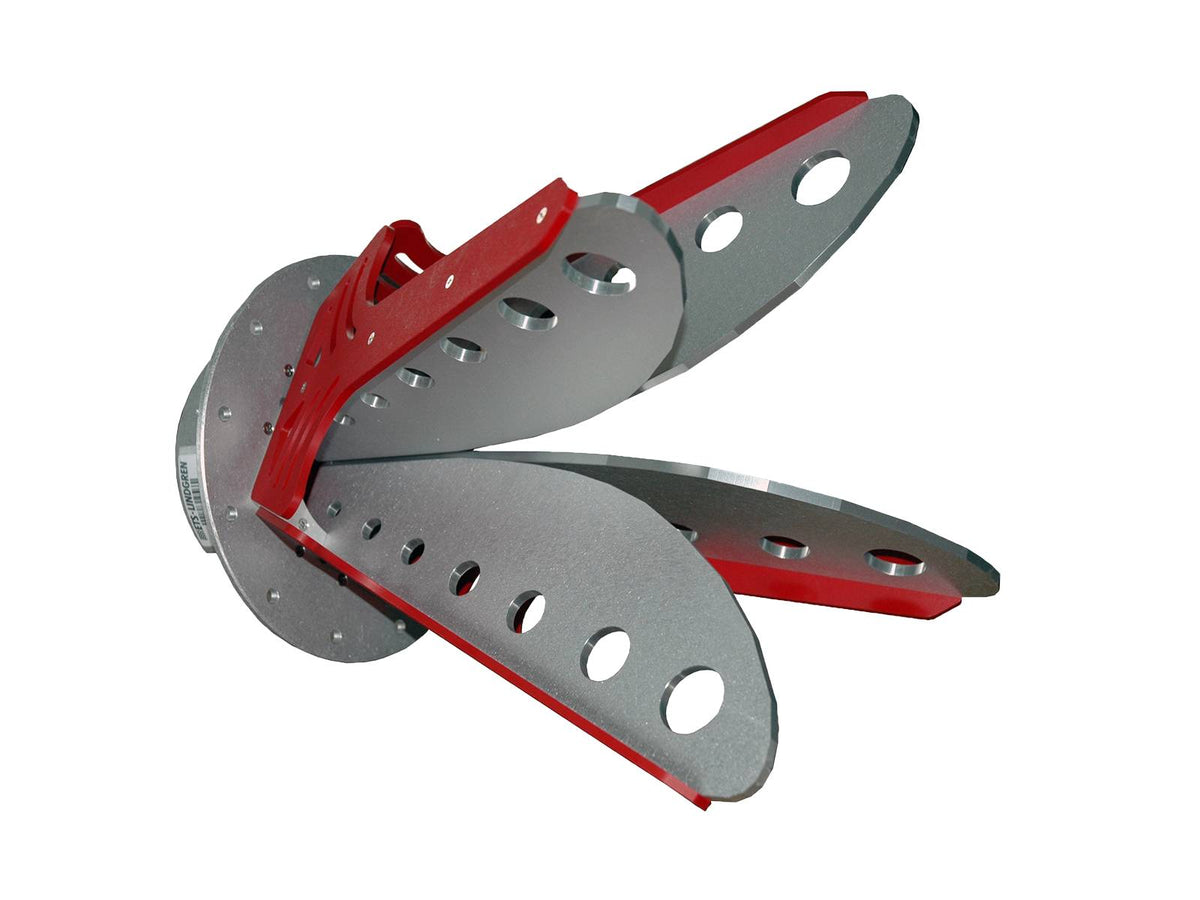

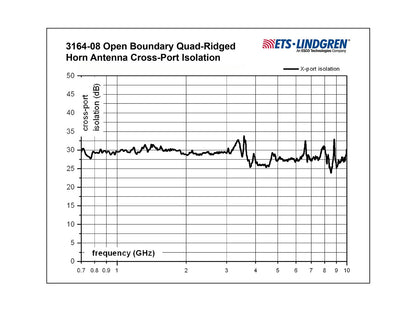

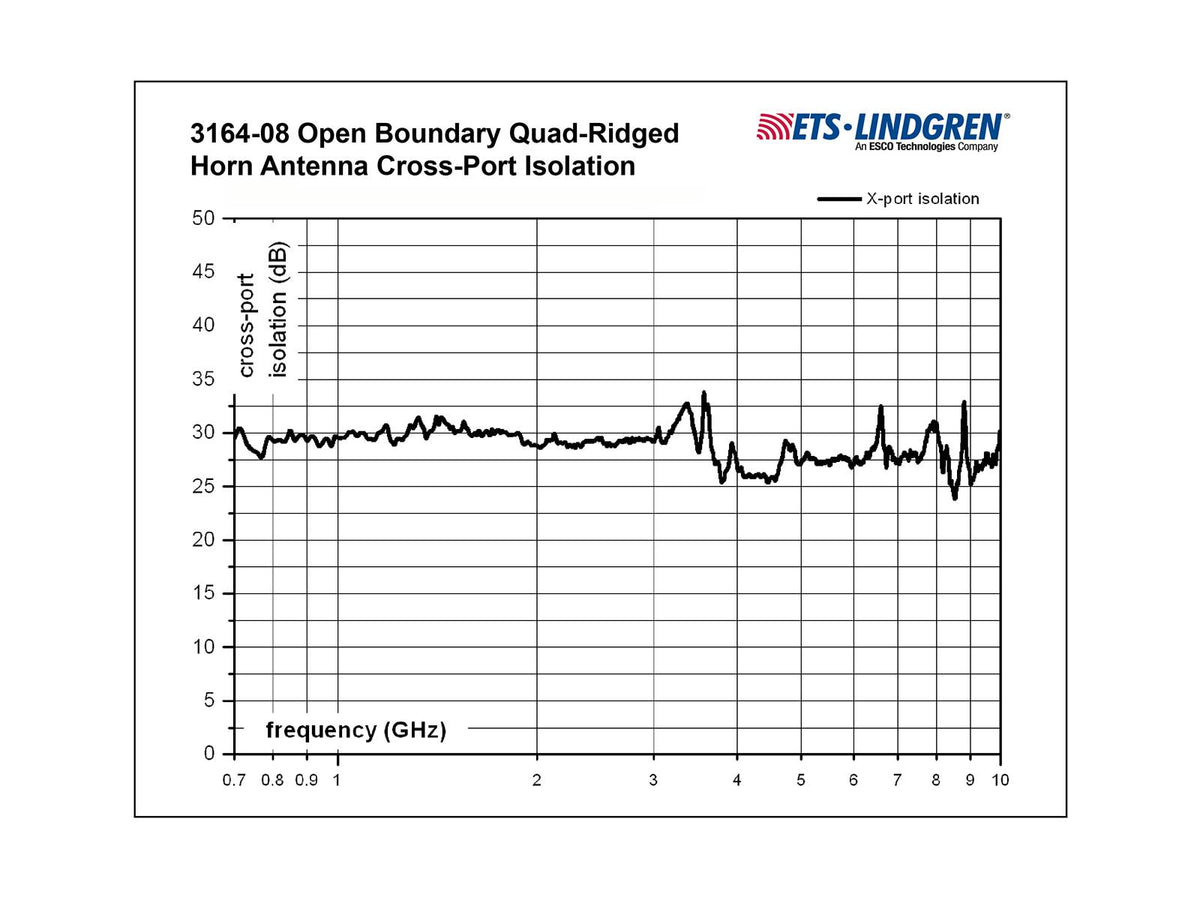

3164-08 Open Boundary Quad-Ridged Horn — Model 3164-08 Open Boundary Quad-Ridged Horn’s open boundary design makes this antenna unique in both appearance and performance. Frequency range: 700 MHz to 10 GHz.

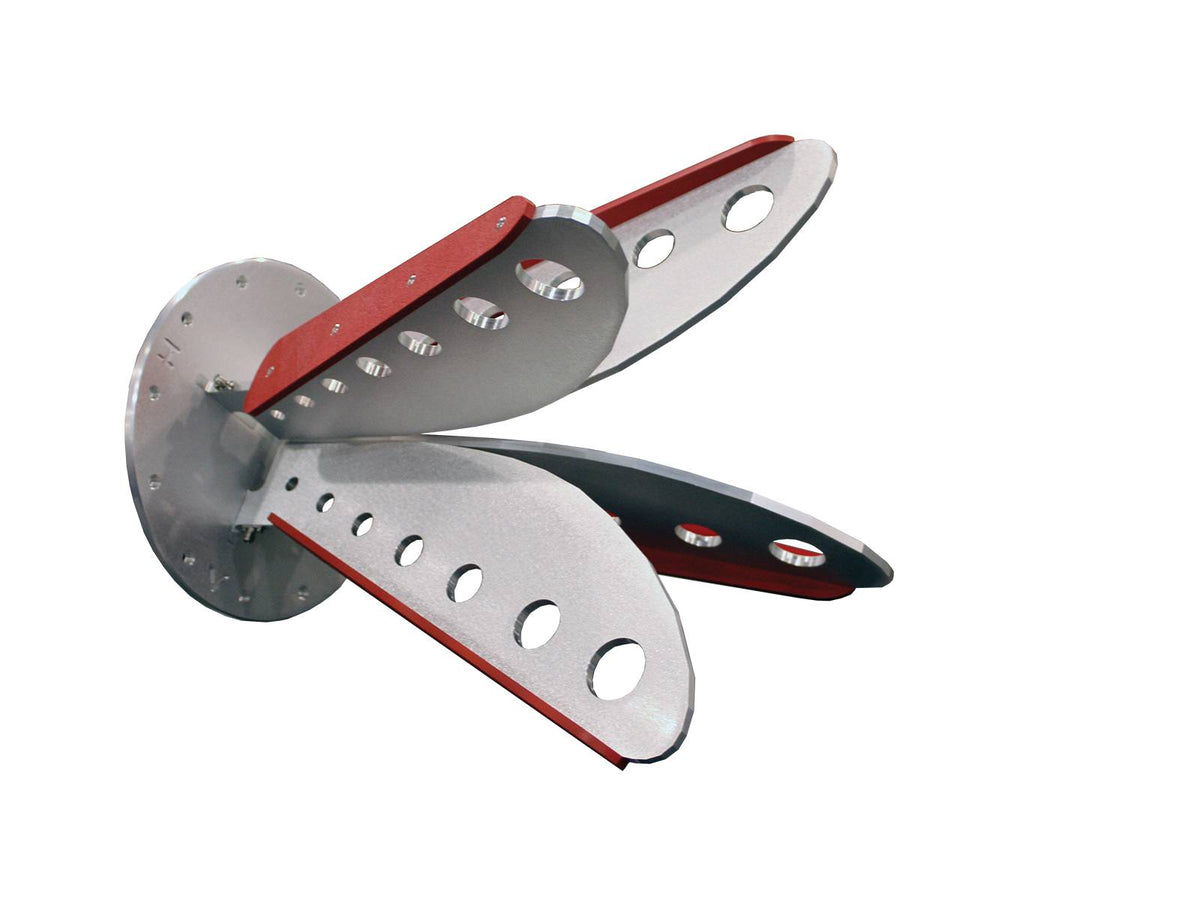

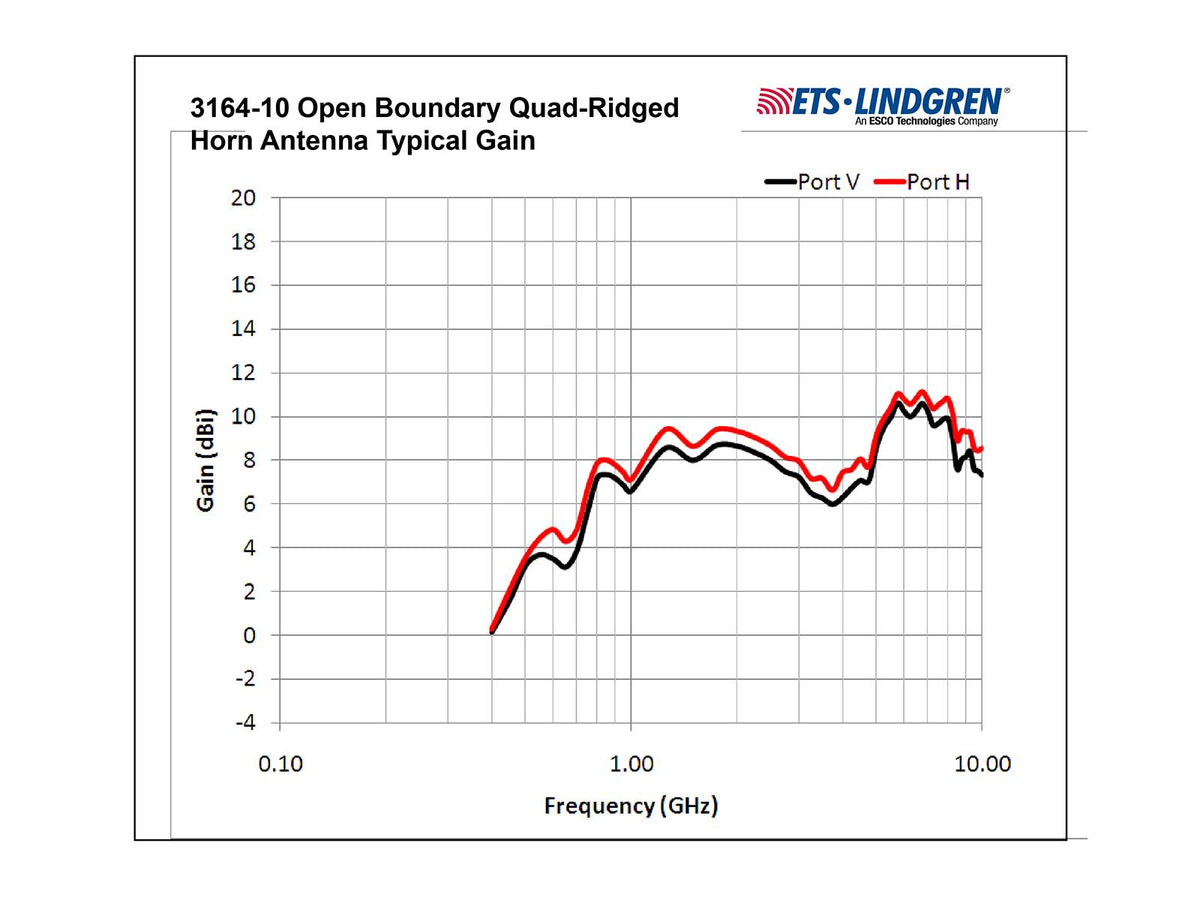

3164-10 Open Boundary Quad-Ridged Horn — The Model 3164-10 Open Boundary Quad-ridged Horn Antenna’s design makes this antenna unique in both appearance and performance. Frequency range: 400 MHz to 10 GHz.

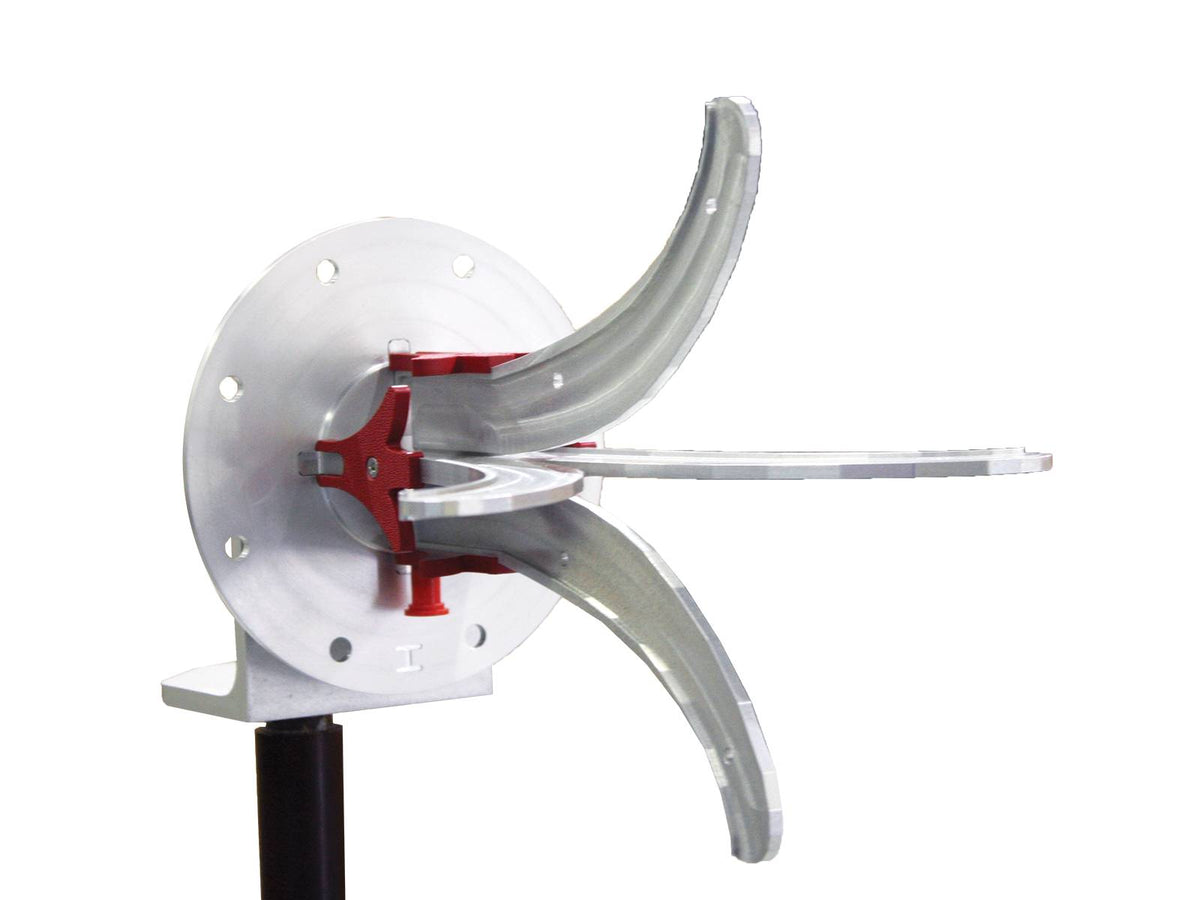

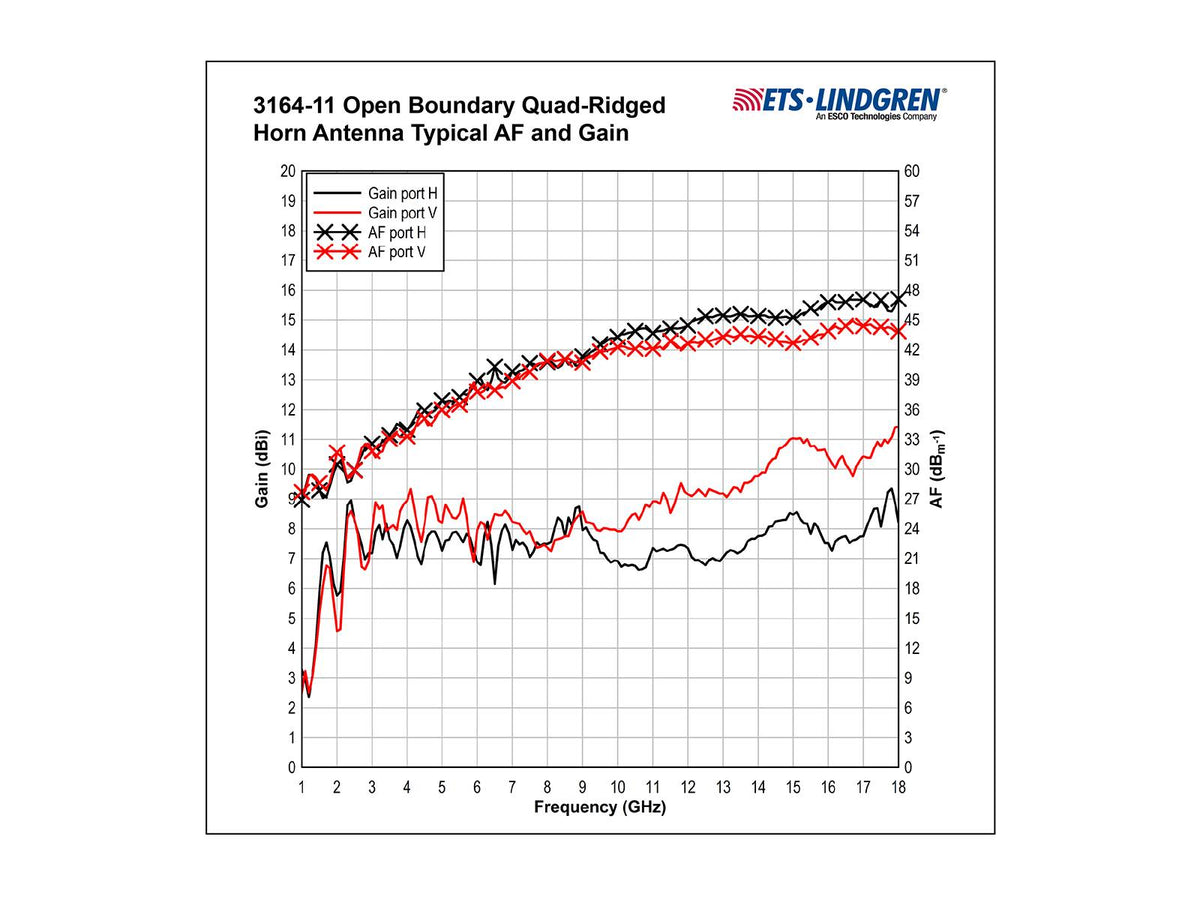

3164-11 Open Boundary Quad-ridged Horn — The Model 3164-11 Open Boundary Quad-ridged Horn is an antenna that’s unique in both appearance and performance. Frequency range: 1 GHz to 18 GHz.

Key Features

3164-05: Linear or Circular Polarization (With Hybrid); Low Side Lobes Compact Design; Flat Gain for Upper 2/3 of Range; Flexible Mounting Schemes; Flange for Wall Mounting
3164-06: Linear or Circular Polarization (With Hybrid); Compact Design; Flat Gain for Upper 2/3 of Range
3164-08: Linear or Circular Polarization (With Hybrid); Low VSWR with Improved Gain; Compact Design; Flexible Mounting Schemes; Standard Tripod Mounting Flange
3164-10: Excellent Gain Over Entire Range; Dual Polarization; Compact, Lightweight Design
3164-11: Flat Gain for Upper 80% of Range; Dual Linearly Polarized Compact Design; Flexible Mounting Schemes; Flange for Wall Mounting; Bracket for Tripod Mounting

Frequency range: 300MHz-18GHz

Official product pages: 3164-05 | 3164-06 | 3164-08 | 3164-10 | 3164-11
