ETS-Lindgren Loop & Coil Antennas

Product Features

Frequency range: 20Hz-30MHz
6502: 9 kHz to 30 MHz — Individually Calibrated per ANSI C63.5; Saturation Indicator
6507: 1 kHz to 30 MHz — Individually Calibrated per ANSI C63.5; Saturation Indicator
6509: 1 kHz to 30 MHz — Individually Calibrated; Switchable Four-Band Transformer; Two Year Warranty
6511: 20 Hz to 5 MHz — Individually Calibrated per ANSI C63.5; Two Year Warranty
6512: 9 kHz to 30 MHz — Individually Calibrated per ANSI C63.5; Two Year Warranty
7604: 20 Hz to 500 kHz — Built to Exact Specifications of MIL-STD 4620; Two Year Warranty
7605 / 7606B: 30 Hz to 100 kHz — Ideal MIL-STD 461G, Method RS101; Recommended for ISO 11452-8
Official ETS-Lindgren product
Enquire for quotation and configuration

Model 6502 6507 6509 6511 6512 7604 7605 7606B

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

ETS-Lindgren Loop & Coil Antennas

ETS-Lindgren loop and coil antennas measure and generate magnetic fields from 20 Hz to 30 MHz for EMC emissions and immunity testing, including MIL-STD 461 RE101/RS101, ISO 11452-8 and CISPR 16 applications.

Models

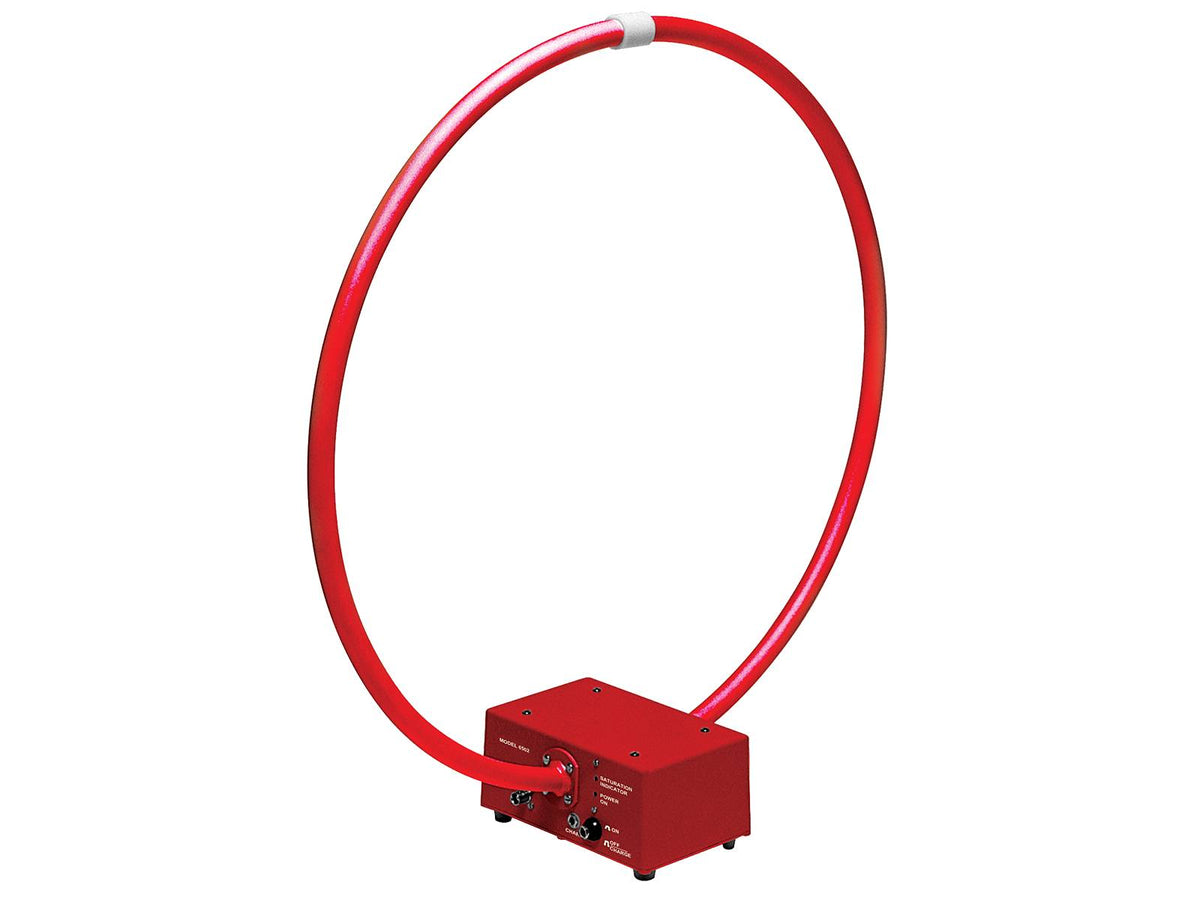

6502 Active Shielded Loop Antenna — The Model 6502 is an active receiving loop antenna specifically designed to perform commercial emissions standards testing, such as CISPR 16-1-4, and can also be used for any magnetic testing (MIL-STD-461B). Frequency range: 9 kHz to 30 MHz.

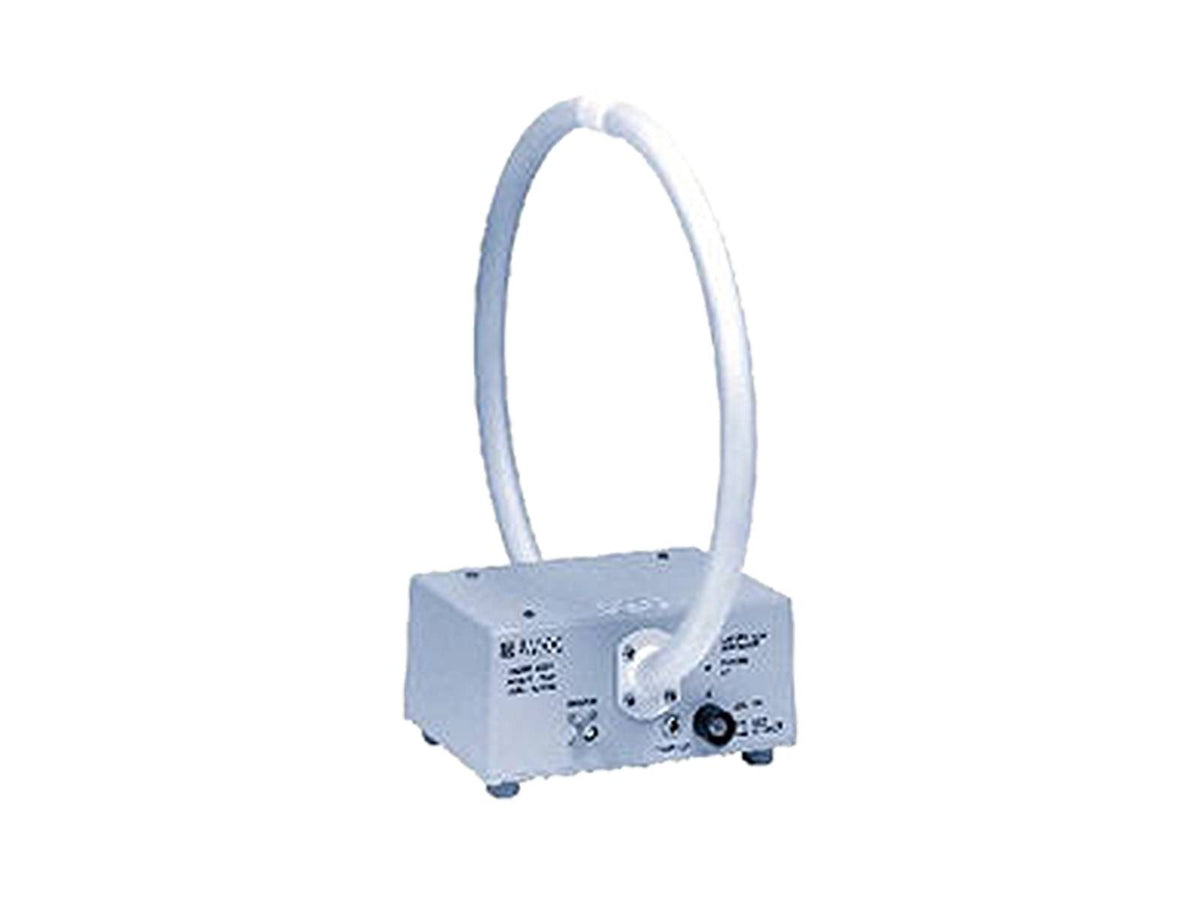

6507 Active Shielded Loop — The Model 6507 Active Shielded Loop Antenna produces good sensitivity and almost constant antenna factors, when testing for EMC applications. Frequency range: 1 kHz to 30 MHz.

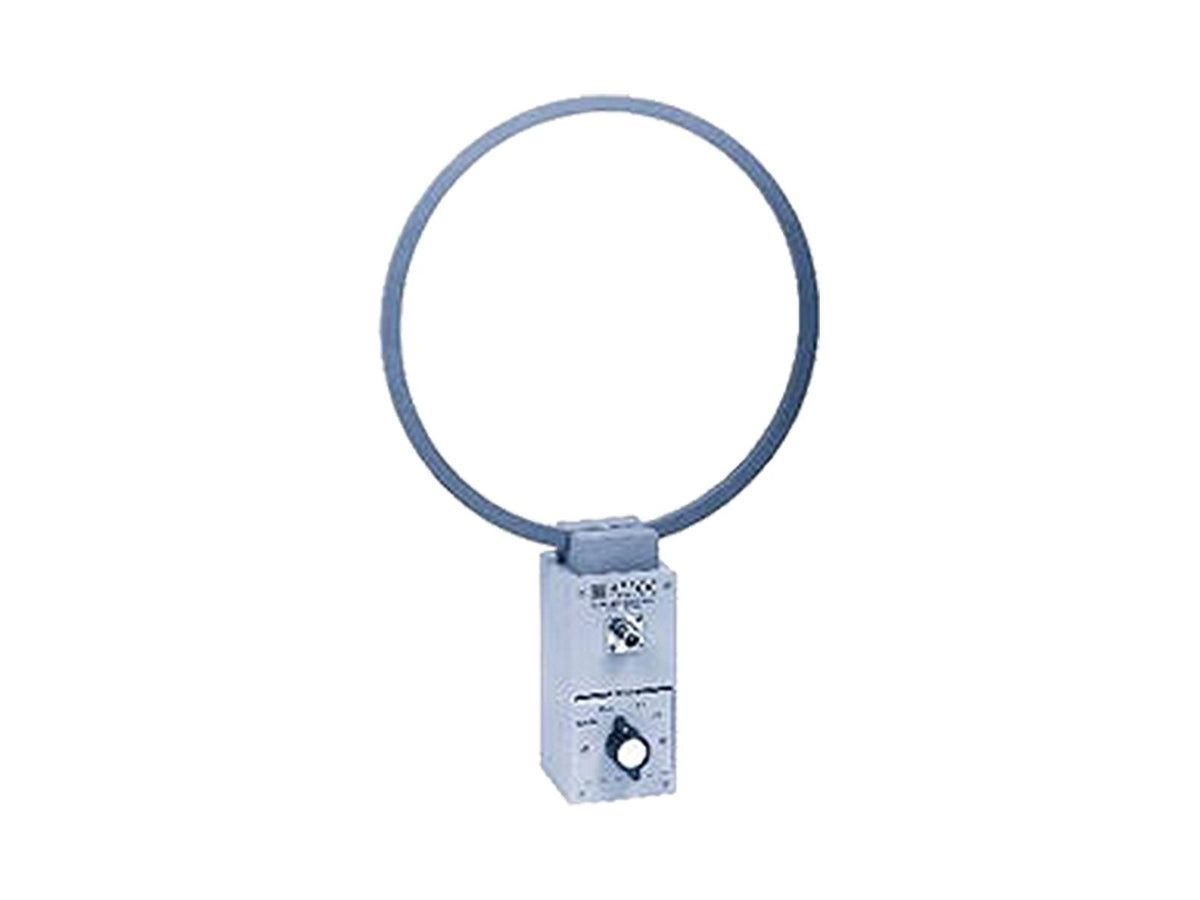

6509 Loop Antenna — The Model 6509 Passive Loop Antenna is designed for shielding effectiveness and EMC immunity testing. Frequency range: 1 kHz to 30 MHz.

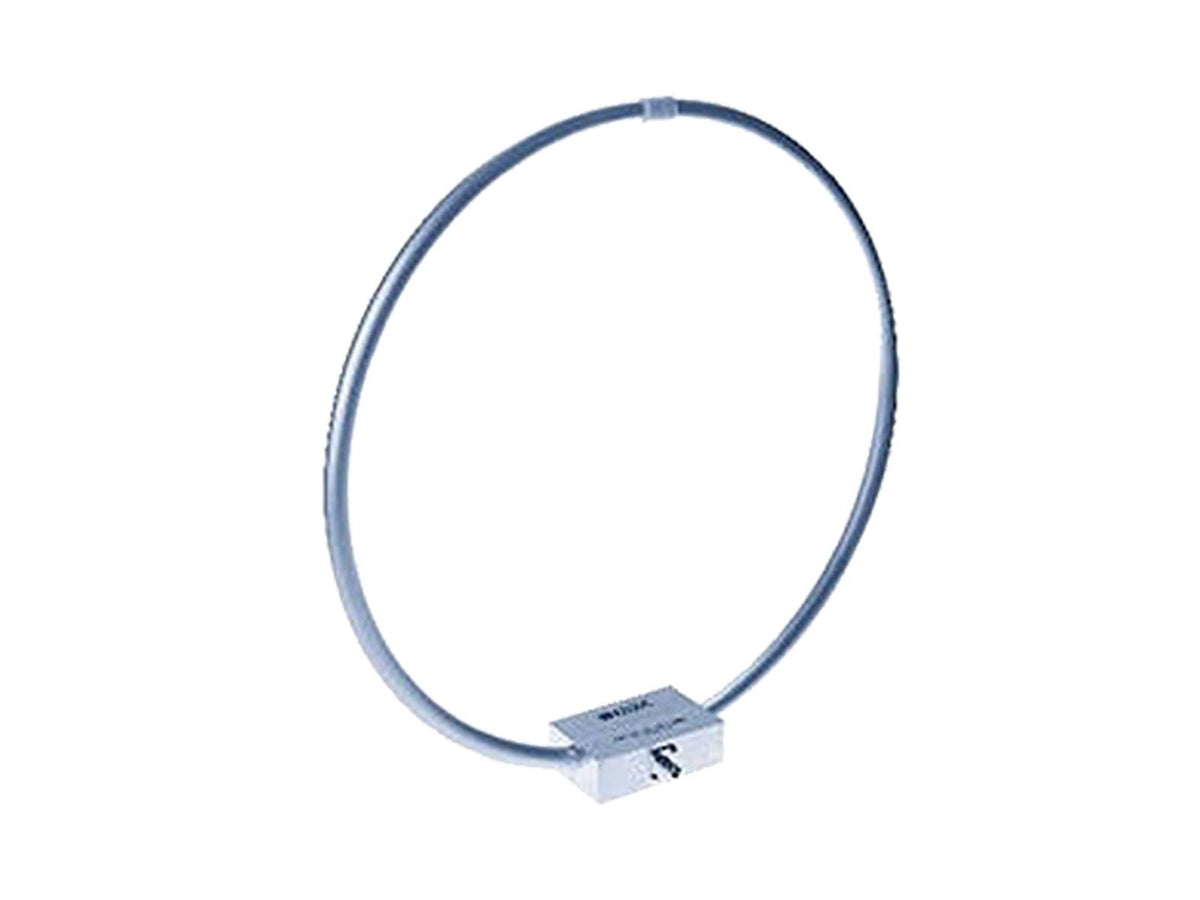

6511 Shielded Loop Antenna — The Model 6511 Passive Loop Antenna is designed for both EMC emissions and EMC immunity tests. Frequency range: 20 Hz to 5 MHz.

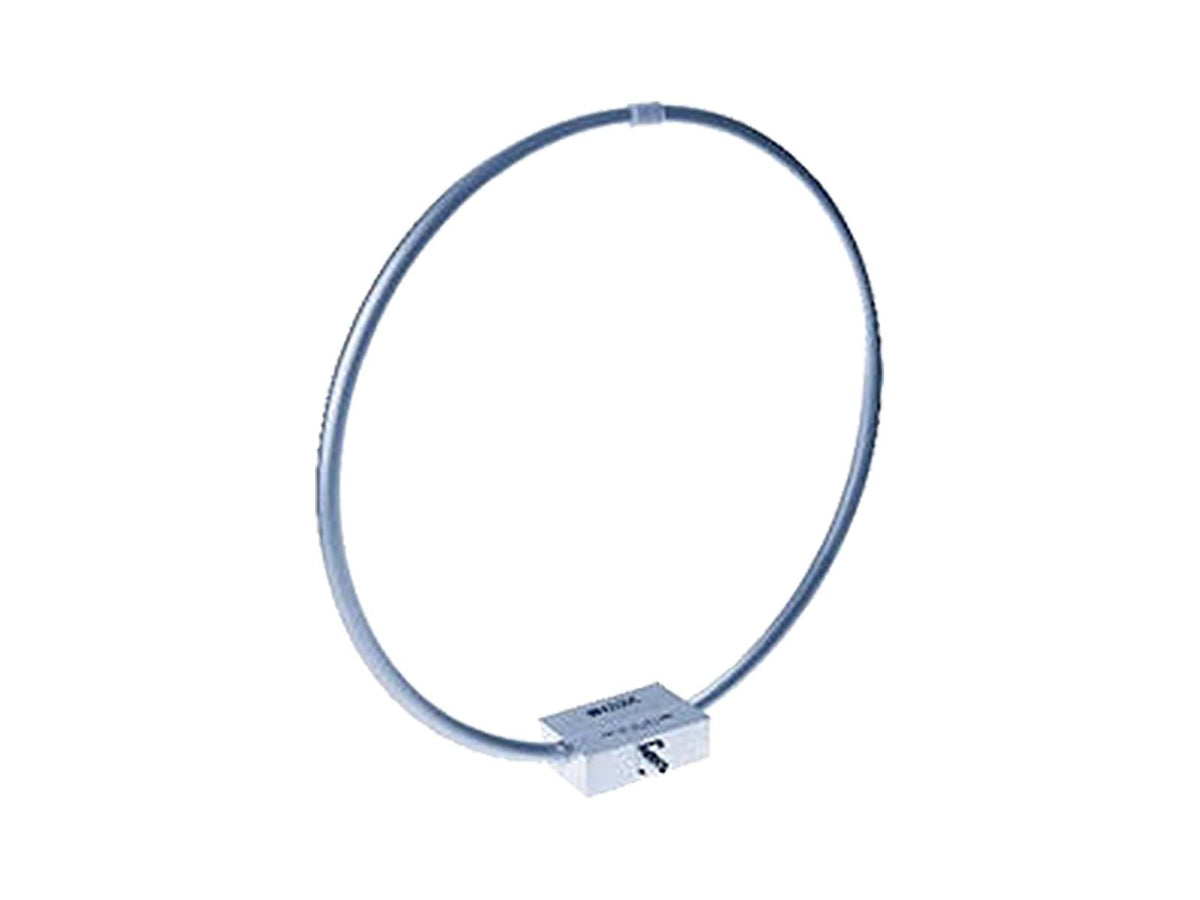

6512 Shielded Loop Antenna — The Model 6512 is a passive loop antenna designed for both EMC emissions and EMC immunity tests. Frequency range: 9 kHz to 30 MHz.

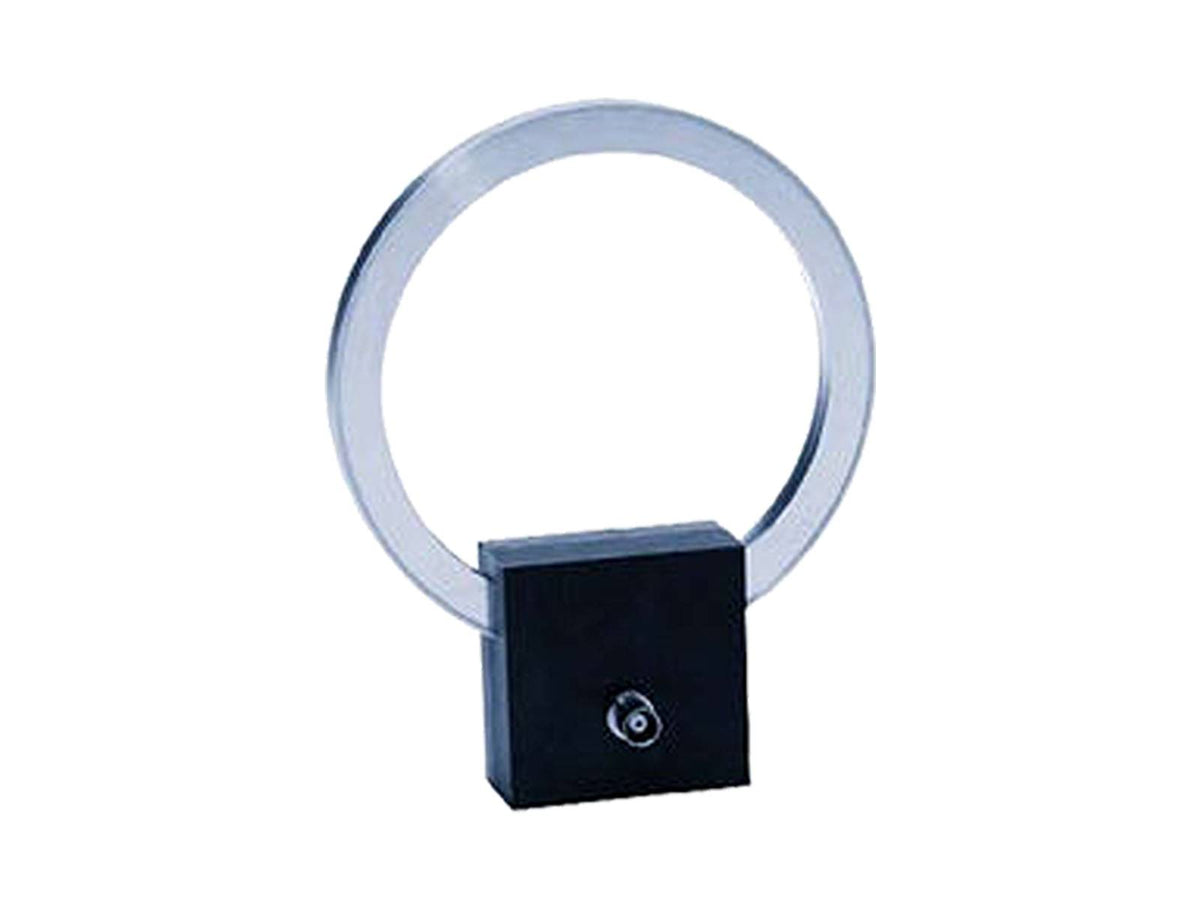

7604 Shielded Coil Antenna — Model 7604 is a magnetic field pick-up coil antenna with a loop constructed of aluminum and a coil wound with 36 turns of 7 strands of 41 gauge Litz wire. Frequency range: 20 Hz to 500 kHz.

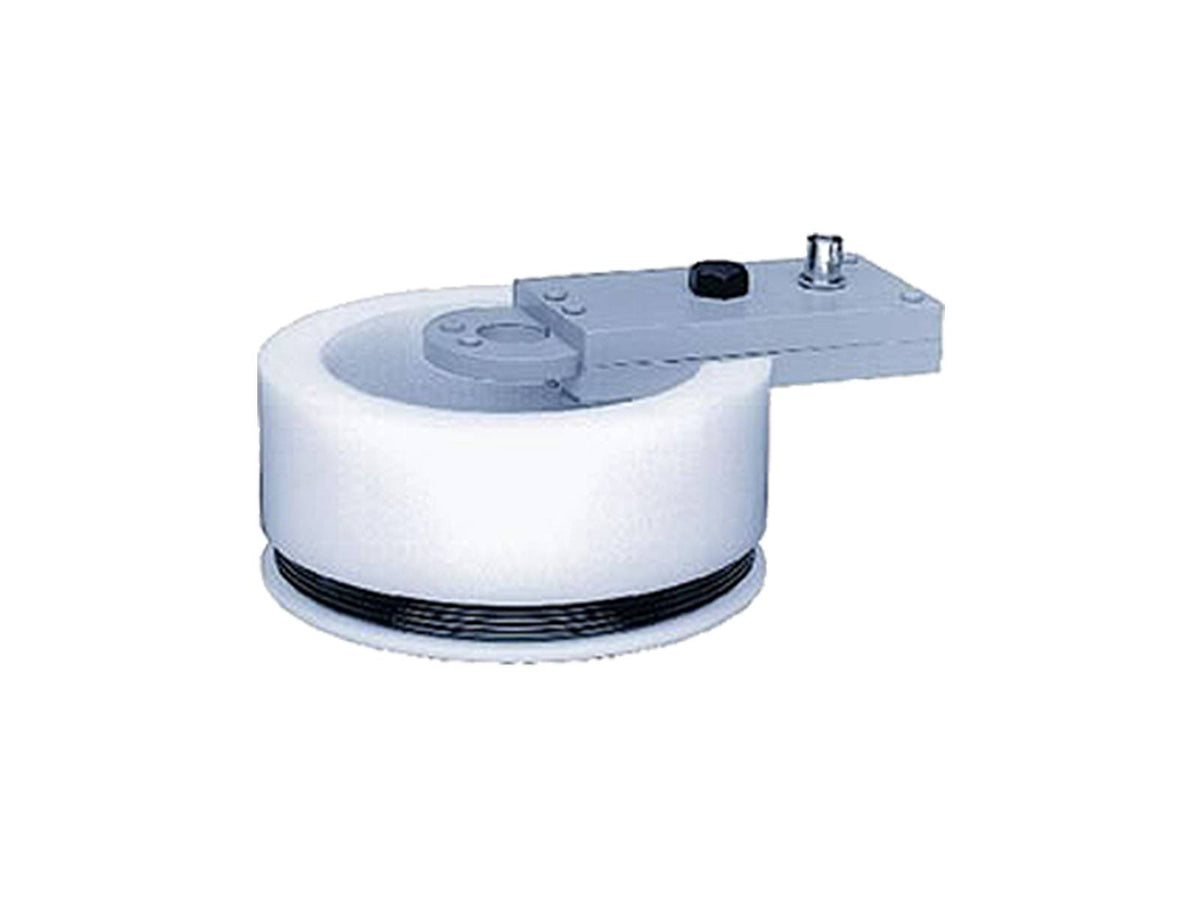

7605/7606 Coil Antenna/Shielded Coil (7605, 7606B) — The Model 7605 Radiating Loop and 7606B Sensing Loop Antennas are precision-built to the exact specifications as described in MIL-STD 461G for Method RS101. Both models are used as part of a system to verify the ability of an EUT to withstand radiating magnetic fields. Frequency range: 30 Hz to 100 kHz.

Key Features

6502: Individually Calibrated per ANSI C63.5; Saturation Indicator
6507: Individually Calibrated per ANSI C63.5; Saturation Indicator
6509: Individually Calibrated; Switchable Four-Band Transformer; Two Year Warranty
6511: Individually Calibrated per ANSI C63.5; Two Year Warranty
6512: Individually Calibrated per ANSI C63.5; Two Year Warranty
7604: Built to Exact Specifications of MIL-STD 4620; Two Year Warranty
7605-7606: Ideal MIL-STD 461G, Method RS101; Recommended for ISO 11452-8
