ETS-Lindgren Field Generating & TEM Horn Antennas
ETS-Lindgren field generating and TEM horn antennas generate high, homogeneous fields for radiated immunity testing, including automotive radar pulse immunity (GMW 3097, Ford) and close-proximity immunity per IEC/EN 61000-4-39.
Models

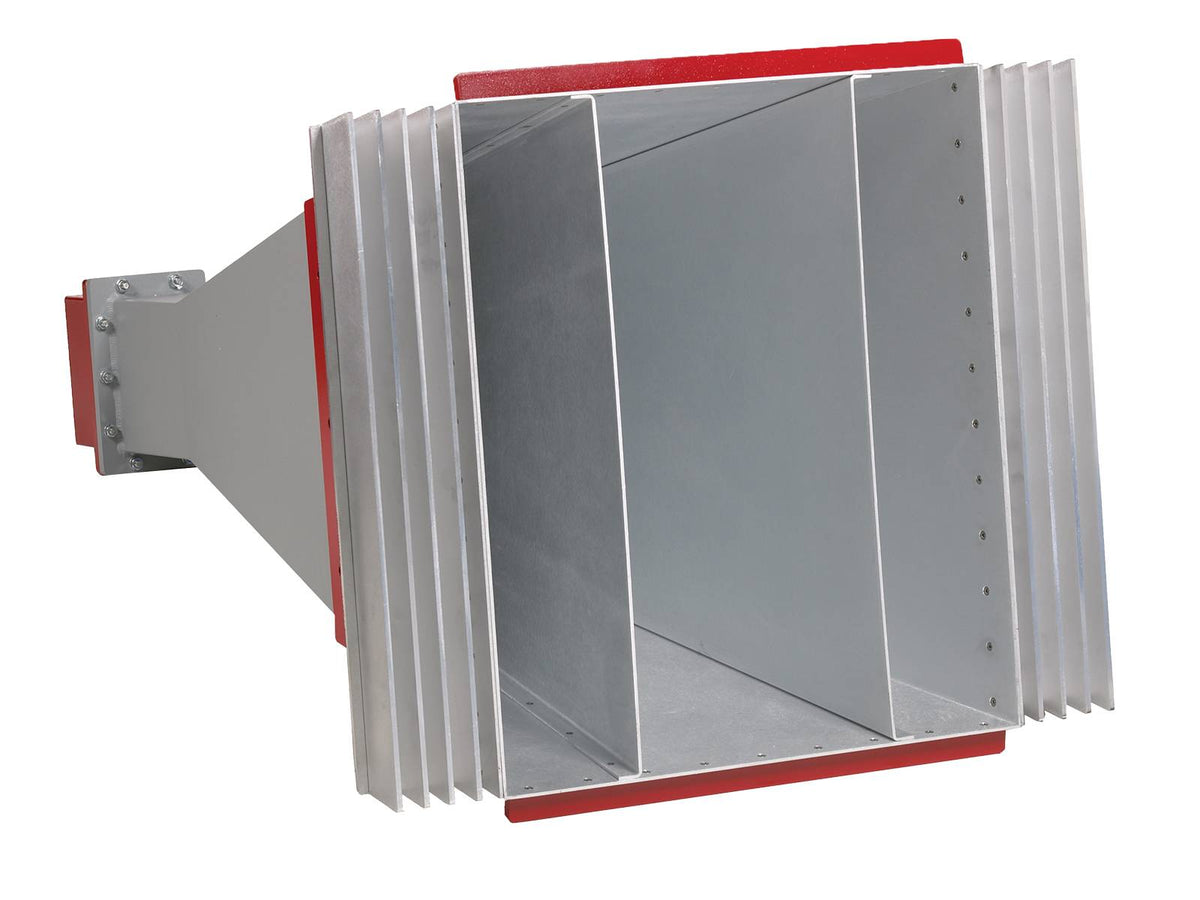

- 3162-01 Field Generating Antenna — The Model 3162-01 Field Generating Pyramidal High Gain Horn is specially engineered for automotive radar pulse immunity testing, meeting the stringent requirements of GMW 3097 and Ford ES-XW7T-1A278-AC specifications. Frequency range: 1.1 GHz to 1.5 GHz.

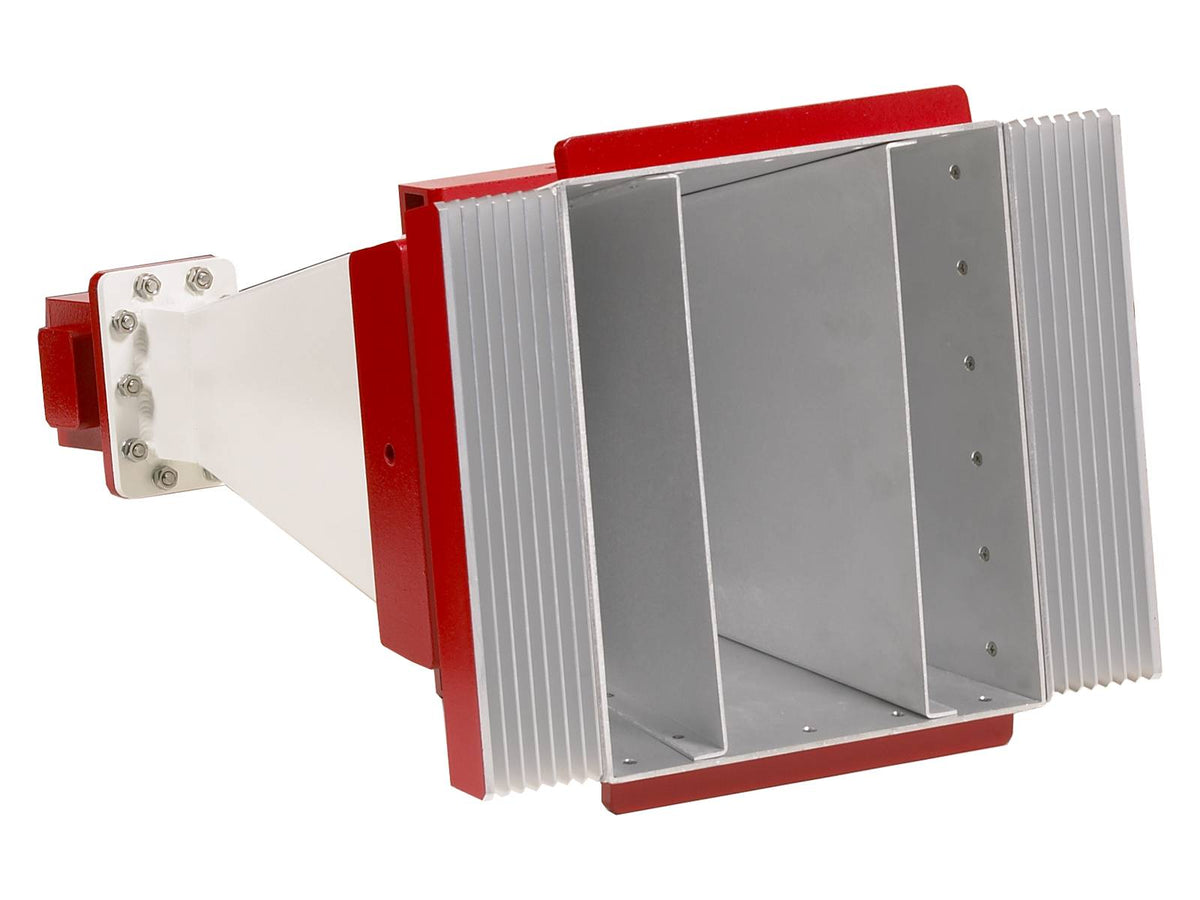

- 3162-02 Field Generating Antenna — Model 3162-02 Field Generating Pyramidal High Gain Horn is purpose-built for automotive radar pulse immunity testing, specifically designed to meet the demanding requirements of Ford ES-XW7T-1A278-AC. Frequency range: 2.7 GHz to 3.1 GHz.

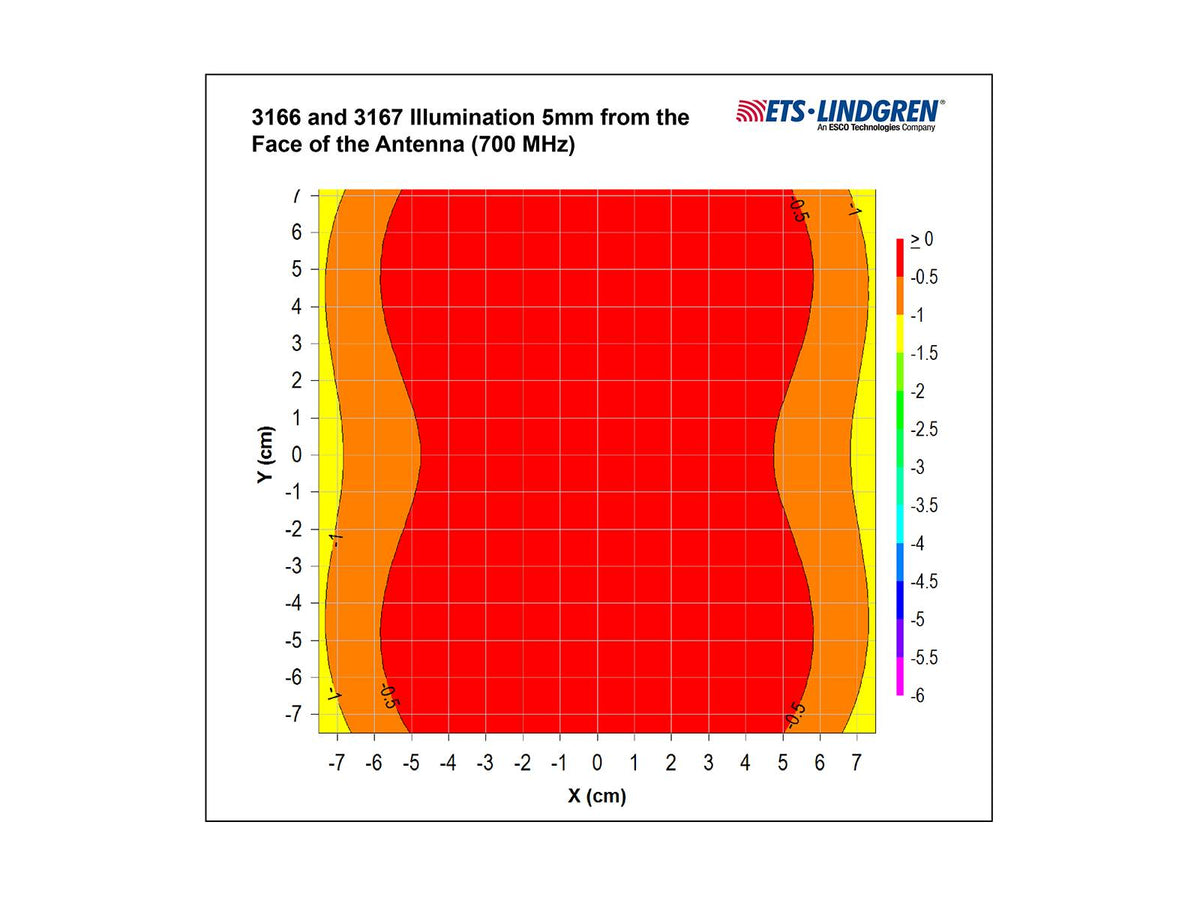

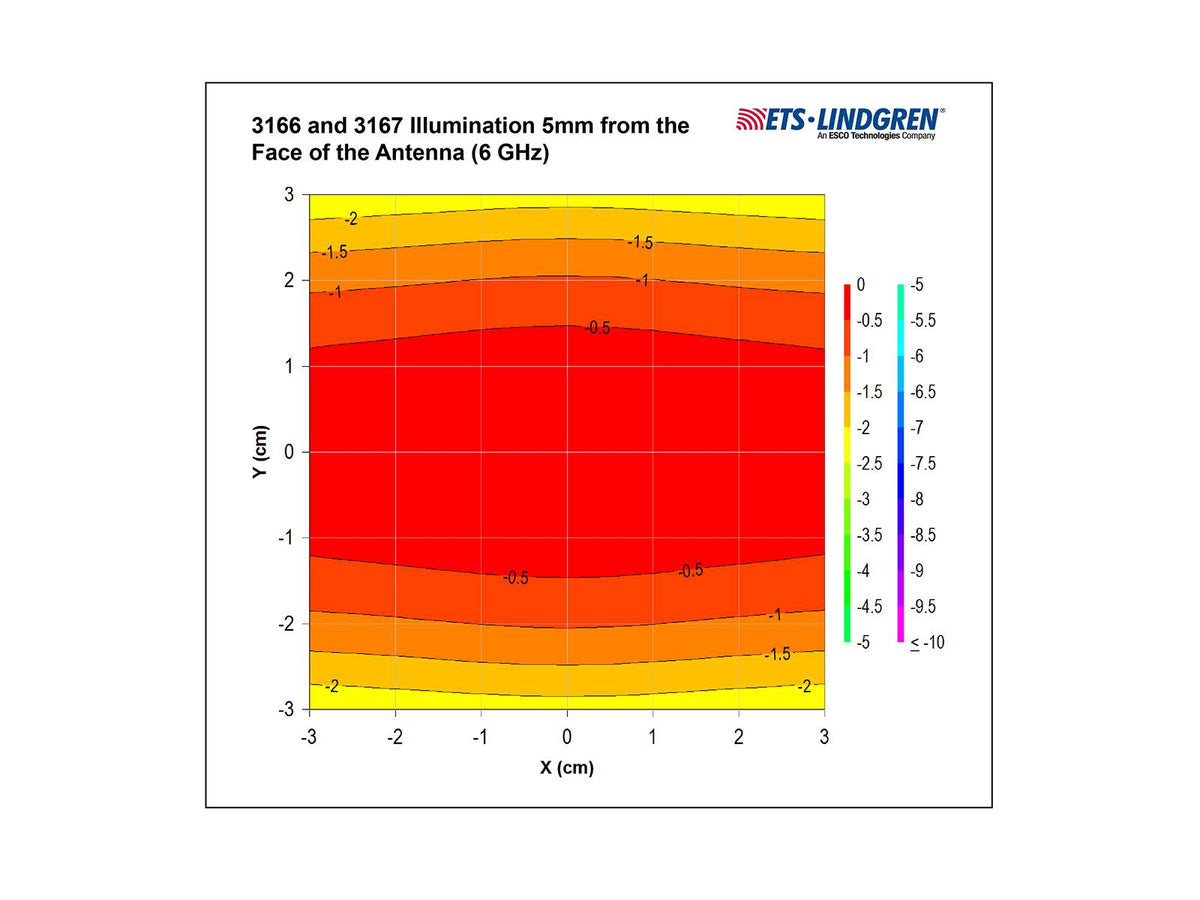

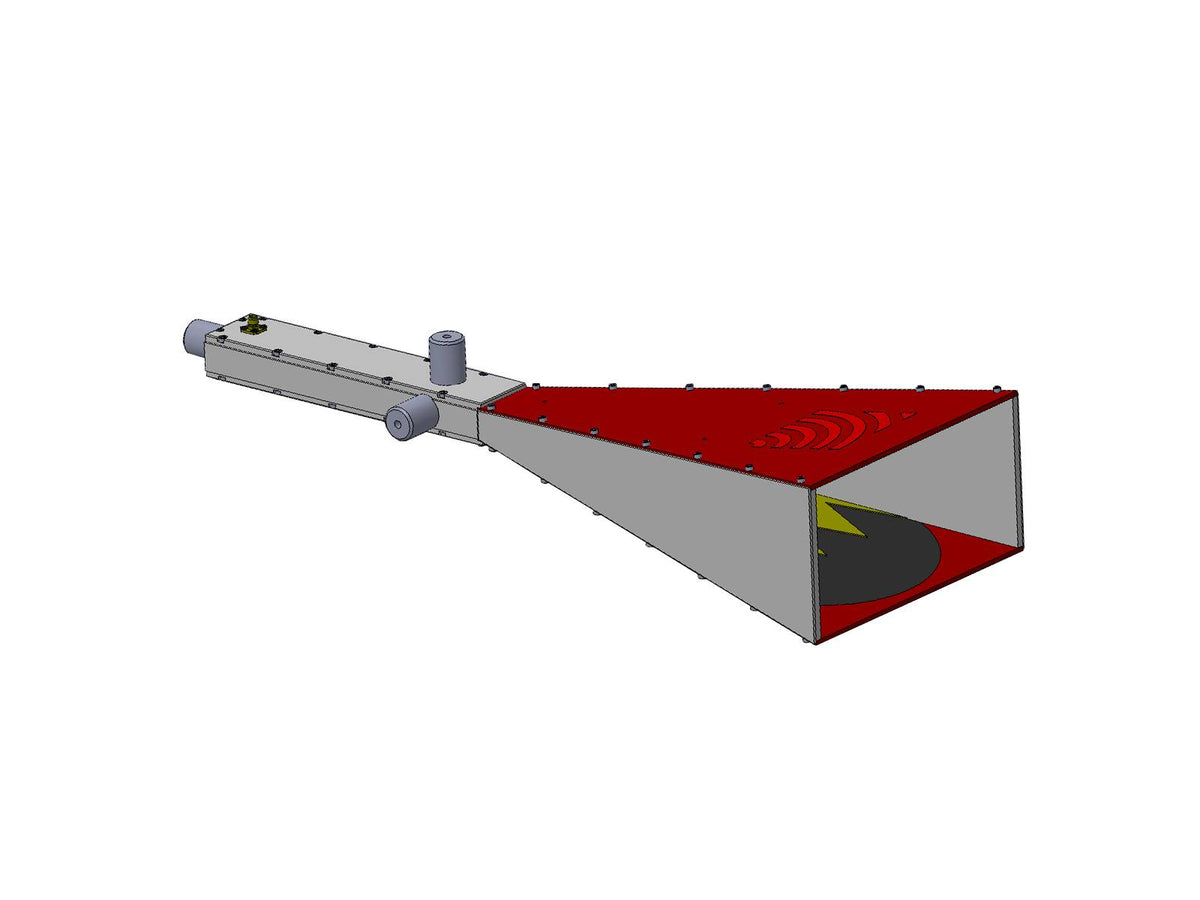

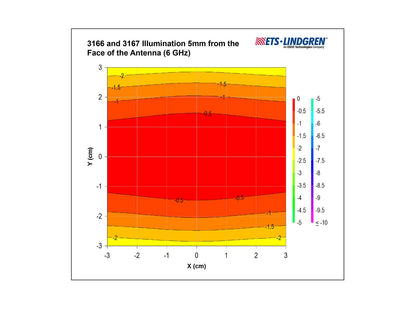

- 3166 & 3167 TEM Horn Antennas (3166, 3167) — The Model 3166 and 3167 TEM Horn Antennas generate homogenous fields in the frequency range 380 MHz to 6 GHz specifically for immunity testing in close proximity as per the IEC/EN 61000-4-39 standard. Frequency range: 380 MHz to 6 GHz (3166: 380 MHz to 3 GHz; 3167: 3 GHz to 6 GHz).
Key Features

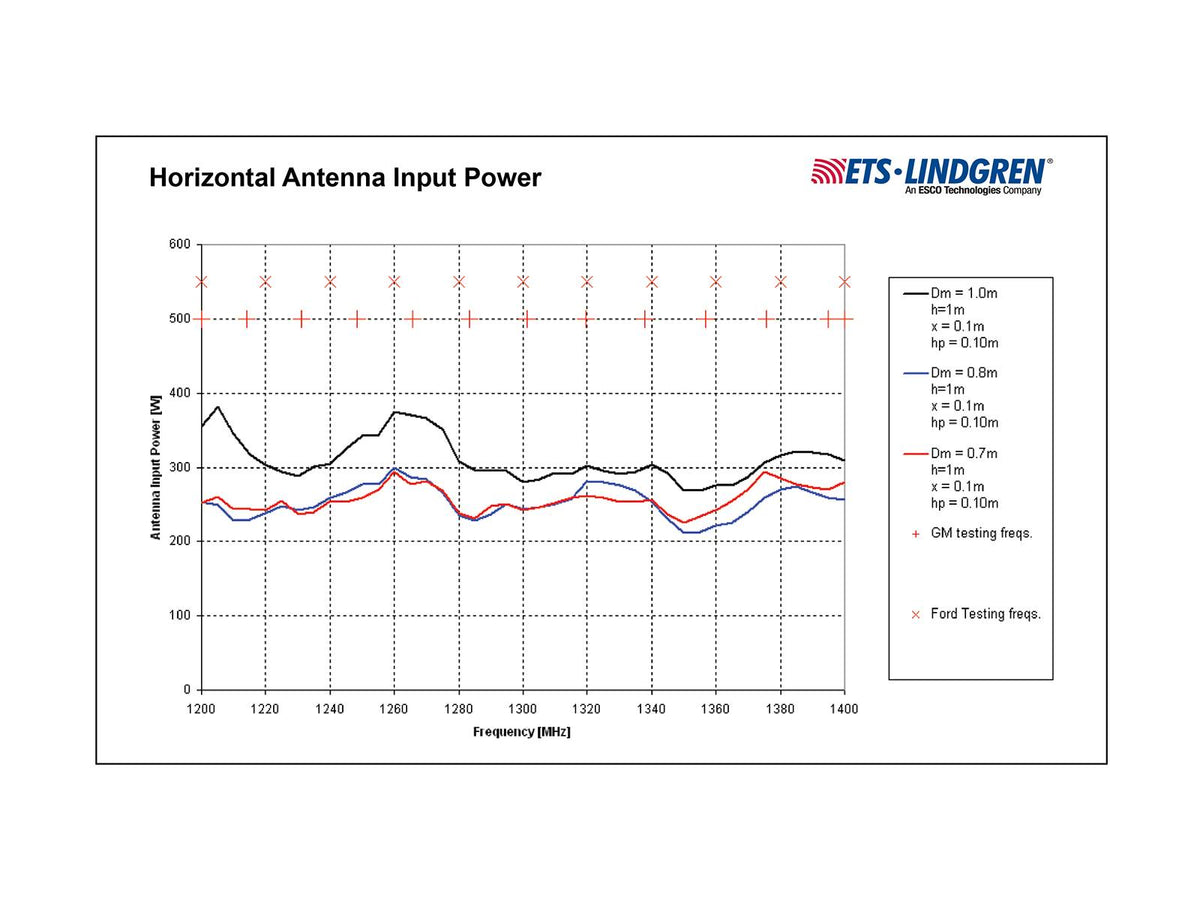

- 3162-01: Generates 600 V/m with < 500 W; Meets Specs for: GMW 3097; ES-XW7T-1A278-AC
- 3162-02: Generates 600 V/m with <300 W; Meets Specs for ES-XW7T-1A278-AC
- 3166: Generates Homogenous Fields for Immunity Testing; Close Proximity Immunity Testing; IEC/EN 61000-4-39
Frequency range: 380MHz-6GHz
