ETS-Lindgren Double-Ridged Waveguide Horn Antennas

Models

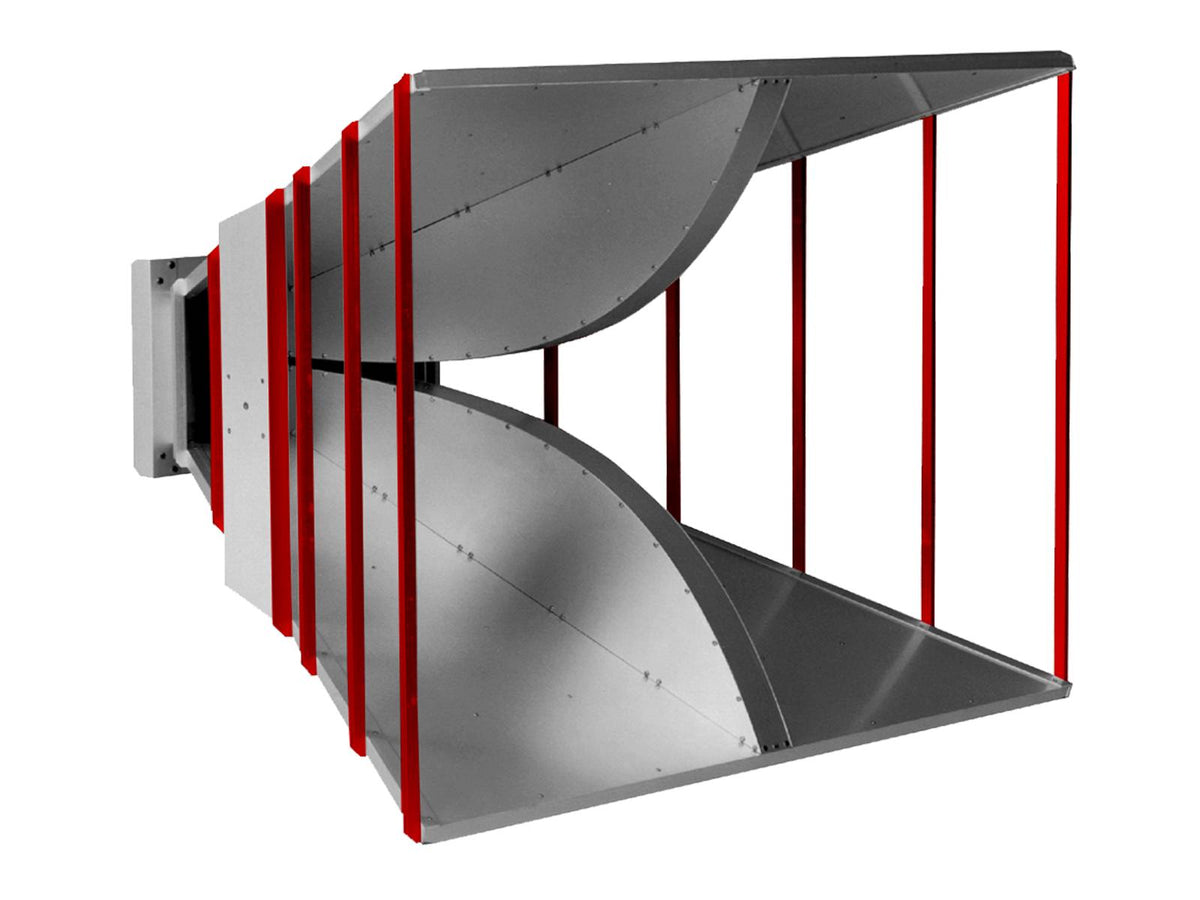

• 3106B Double-Ridged Guide Antenna — The 3106B Double-Ridged Guide Antenna is an antenna effective for generating high electromagnetic fields with relatively low power input. Frequency range: 200 MHz to 2.5 GHz.

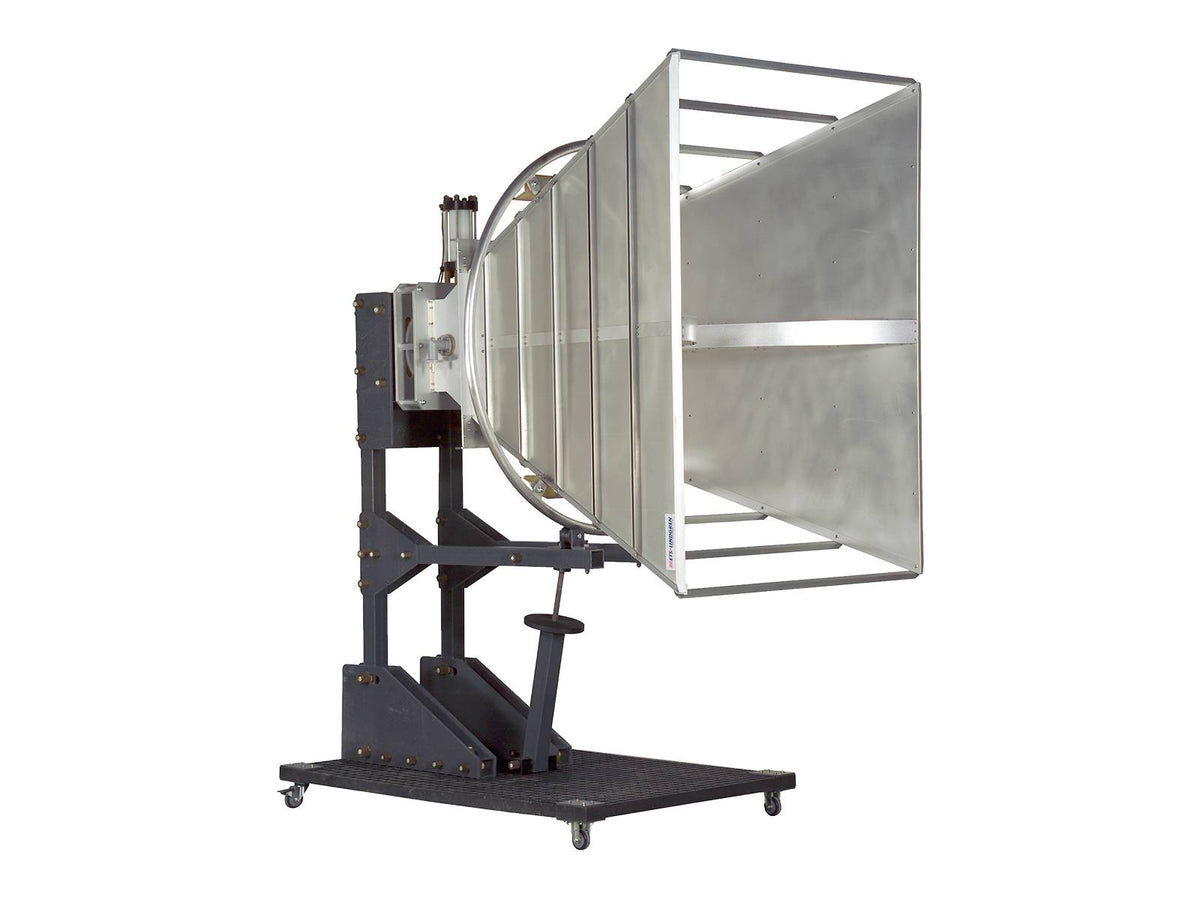

• 3112 Double-Ridged Guide Antenna — The Model 3112 Double-Ridged Waveguide Horn is a linearly polarized broadband antenna providing high gain and excellent VSWR characteristics over a broadband frequency. Frequency range: 100 MHz to 1 GHz.

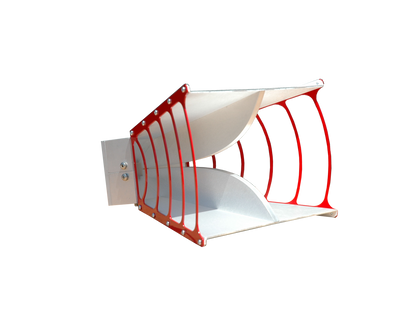

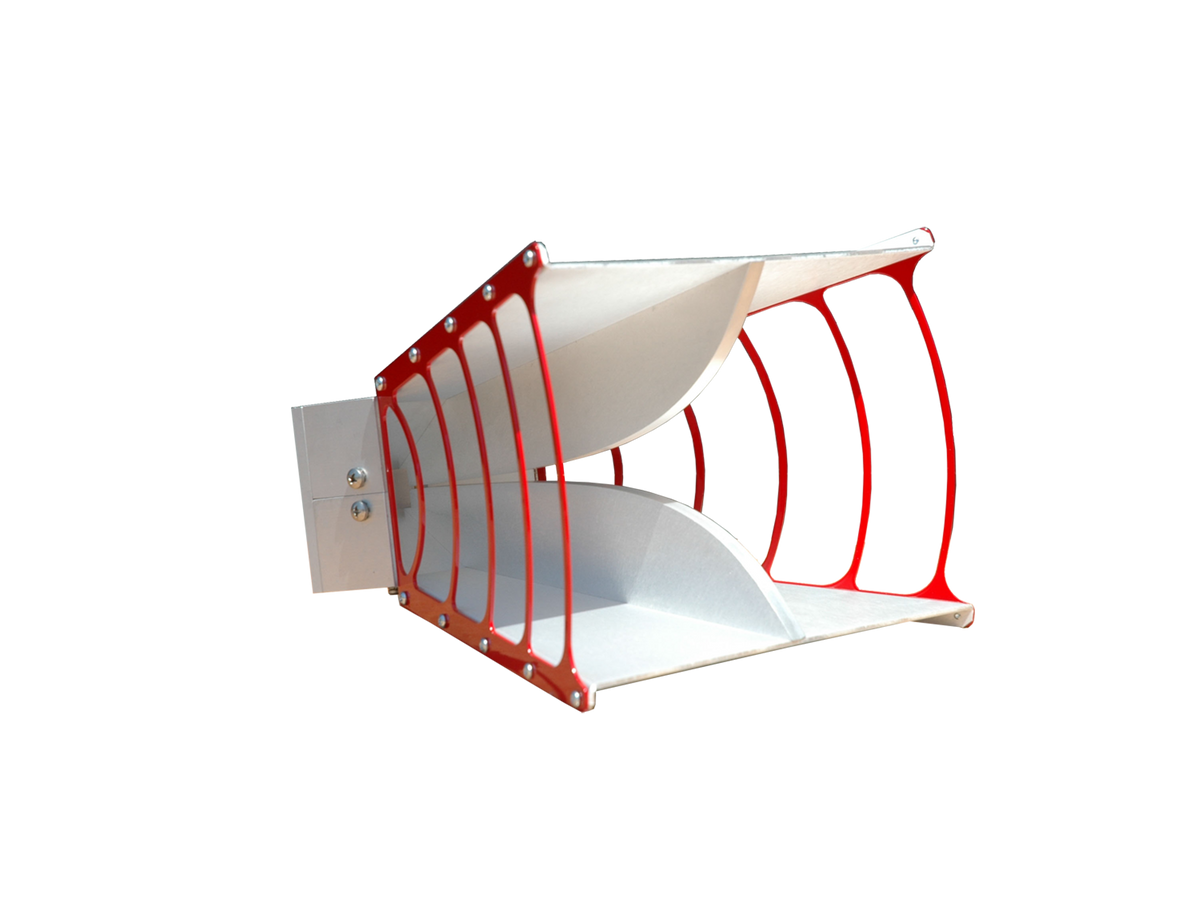

• 3115 Double-Ridged Guide Antenna — The Model 3115 Double-Ridged Guide Horn Antenna delivers uniform, low-VSWR performance in a compact, individually calibrated design ideal for automated test environments. Frequency range: 750 MHz to 18 GHz.

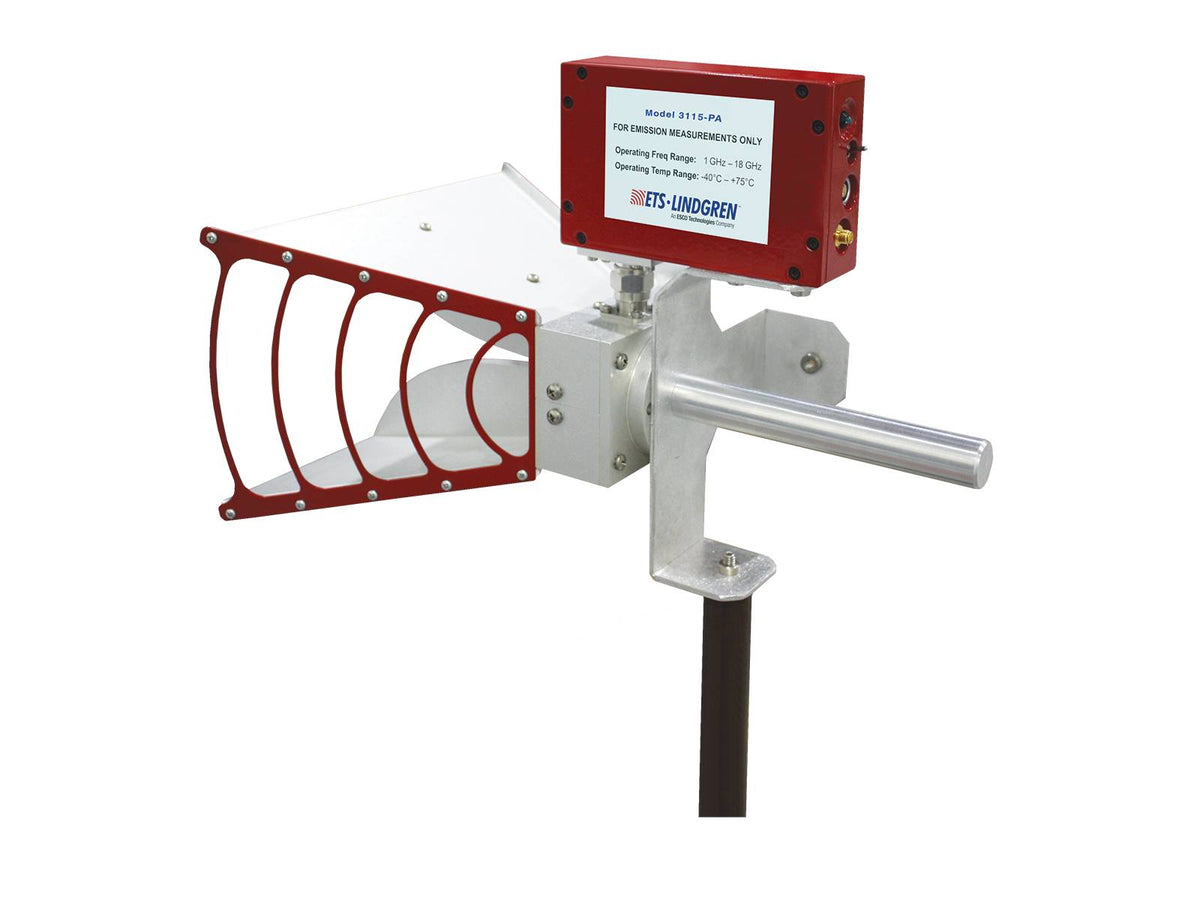

• 3115-PB Double-Ridged Waveguide Horn with Pre-Amp Package — The Model 3115-PB is a specially calibrated version of the Model 3115 Double-Ridged Waveguide Horn Antenna with an integrated pre-amplifier designed to account for antenna-pre-amplifier mismatches, but not intended for RSE testing of intentional radiators. Frequency range: 1 GHz to 18 GHz.

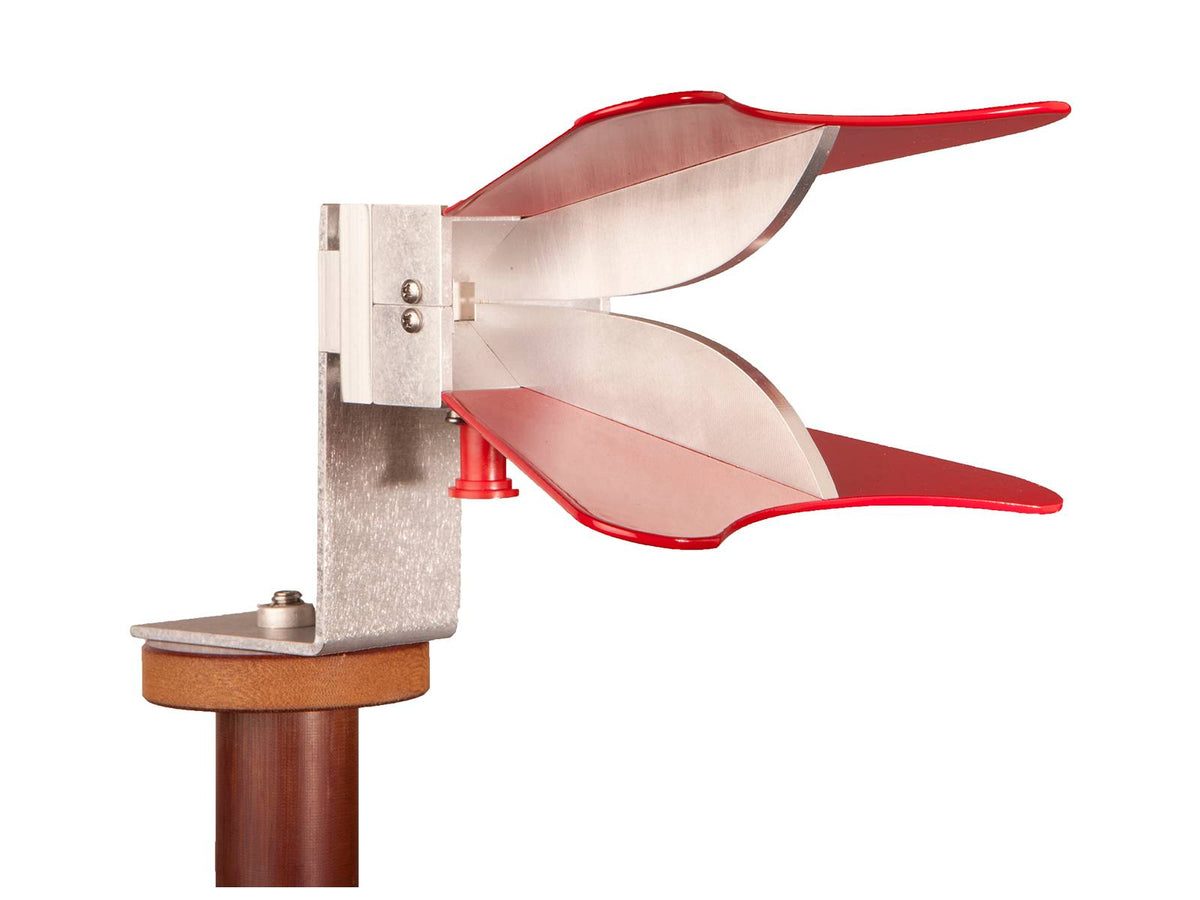

• 3116C Double-Ridged Waveguide Horn — The 3116C Double-Ridged Waveguide Horn Antenna corrects the lower gain at the upper end of the frequency range that is commonly found in ridged waveguide antennas. Frequency range: 10 GHz to 40 GHz.

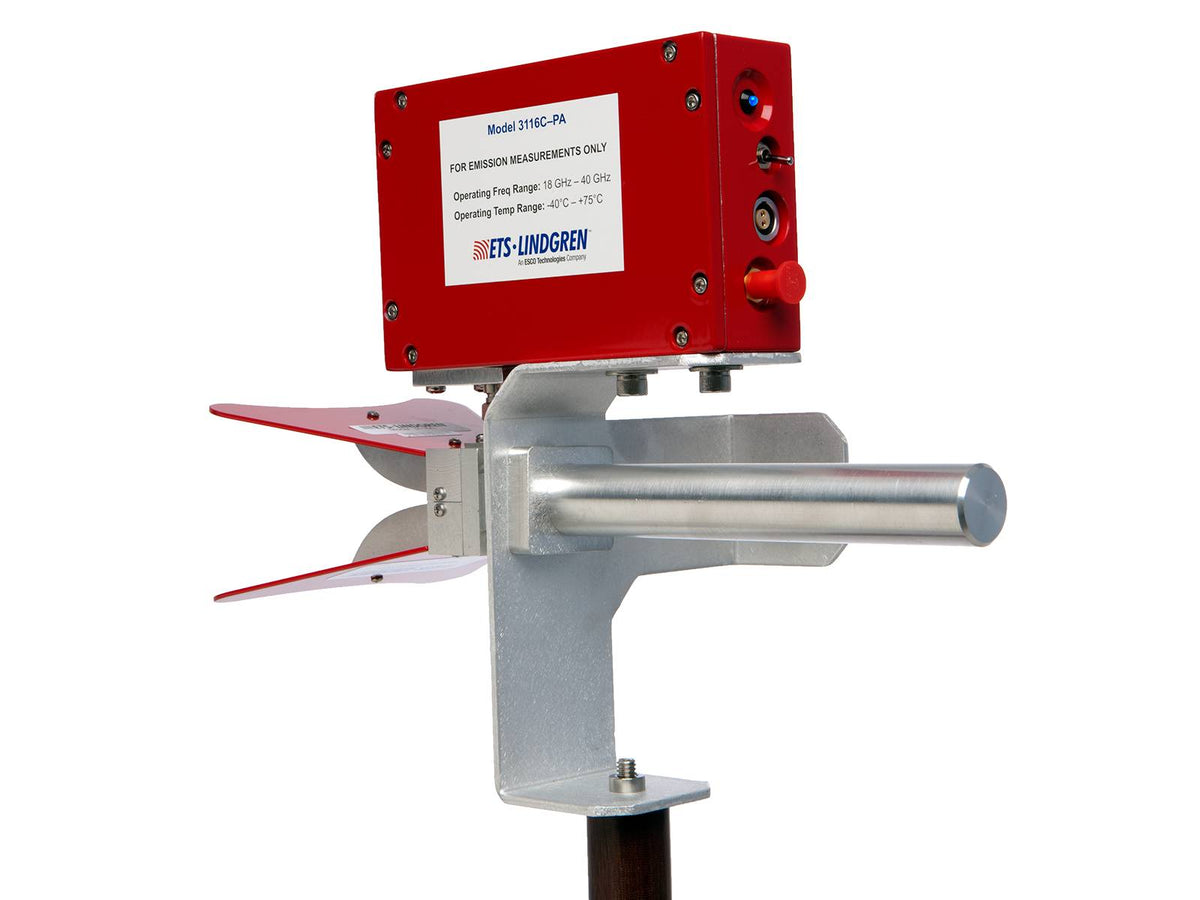

• 3116C-PA Double-Ridged Waveguide Horn with Pre-Amplifier — The Model 3116C-PA is a specially calibrated version of the Model 3116C Double-Ridged Waveguide Horn Antenna with an integrated pre-amplifier, designed to account for antenna-pre-amplifier mismatches, but not intended for RSE testing of intentional radiators. Frequency range: 18 GHz to 40 GHz.

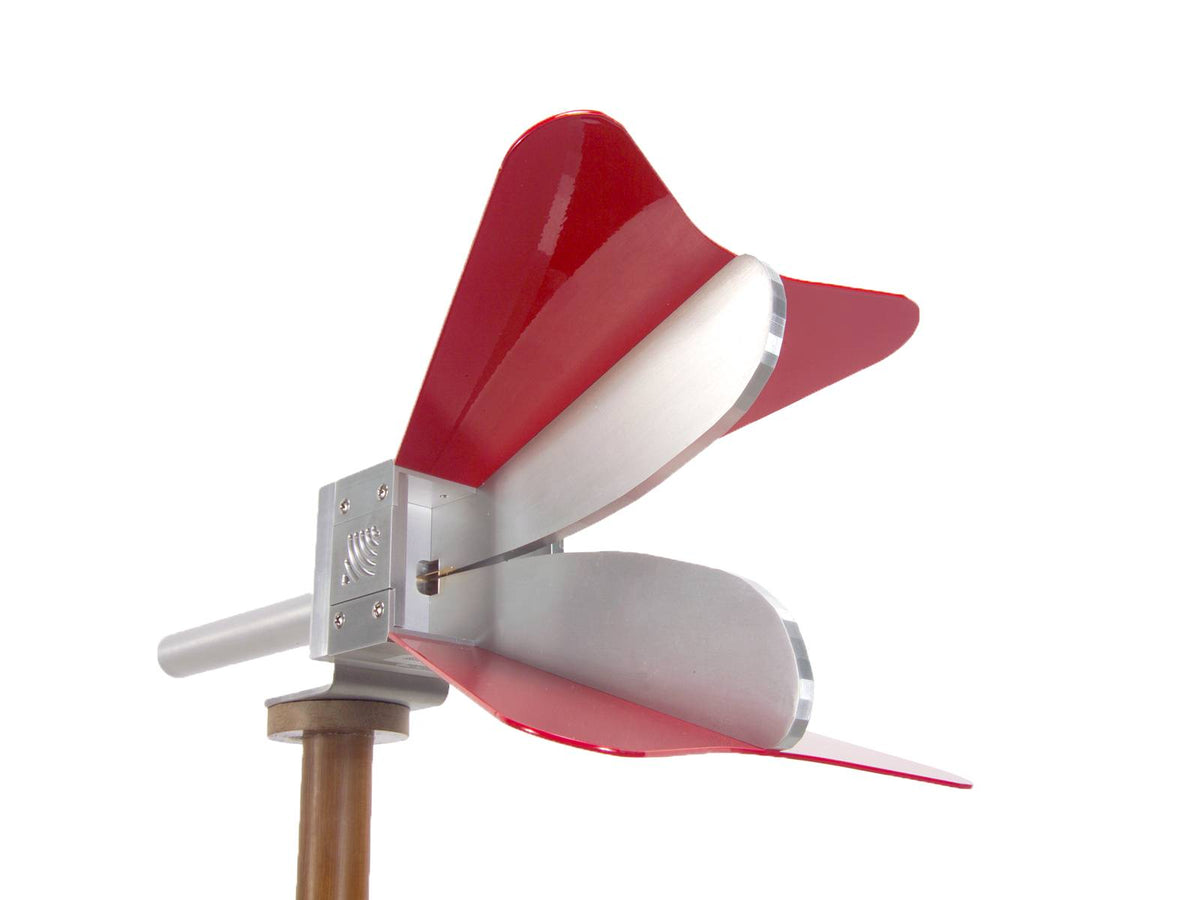

• 3117 Double-Ridged Guide Antenna — The Model 3117 Double-Ridged Waveguide Antenna corrects the lower gain at the upper end of the frequency range that is commonly found in ridged waveguide antennas. It has uniform illumination of target surfaces, accurate gain measurement, and low VSWR. Frequency range: 1 GHz to 18 GHz.

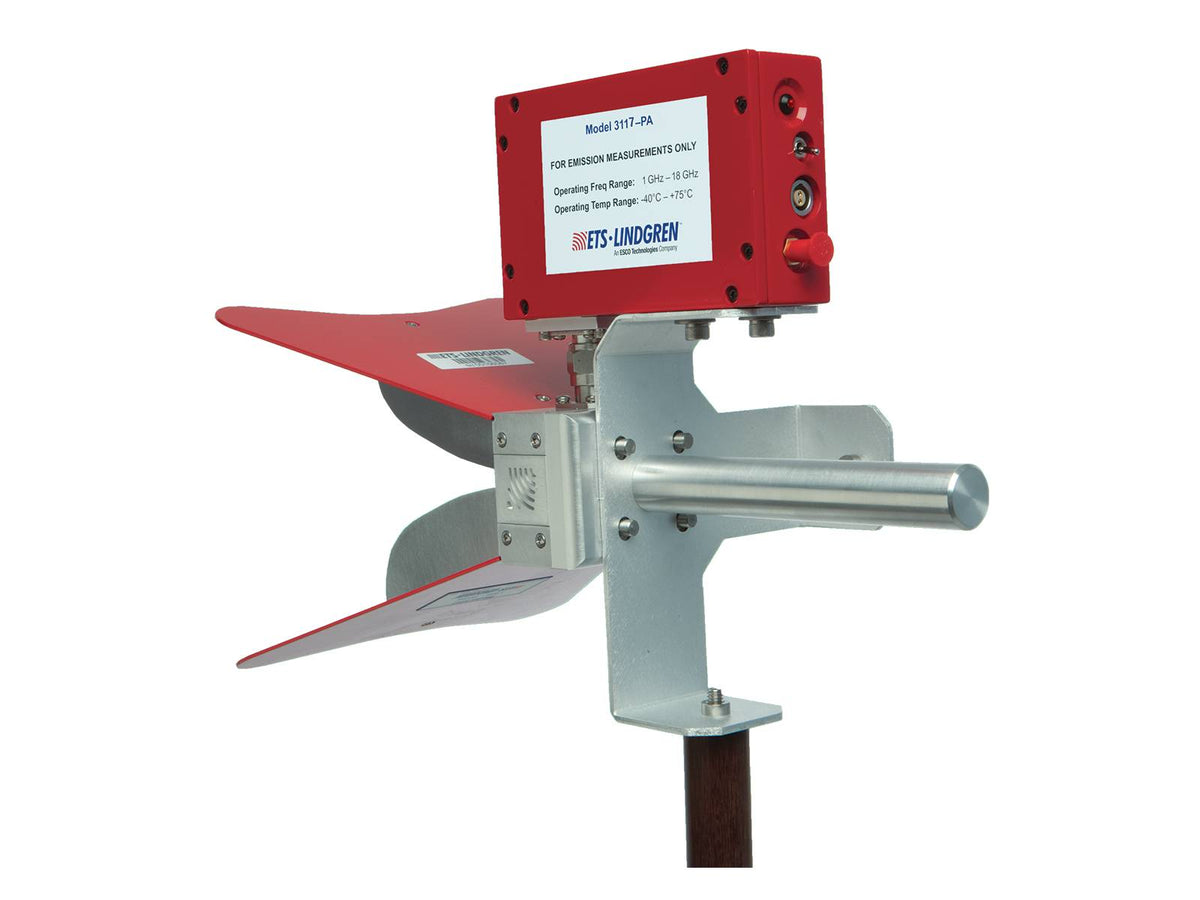

• 3117-PB Double-Ridged Waveguide Horn with Pre-Amplifier — The Model 3117-PB is a specially calibrated version of the Model 3117 Double-Ridged Waveguide Antenna with an integrated pre-amplifier, designed to account for antenna-pre-amplifier mismatches, but not intended for RSE testing of intentional radiators. Frequency range: 1 GHz to 18 GHz.

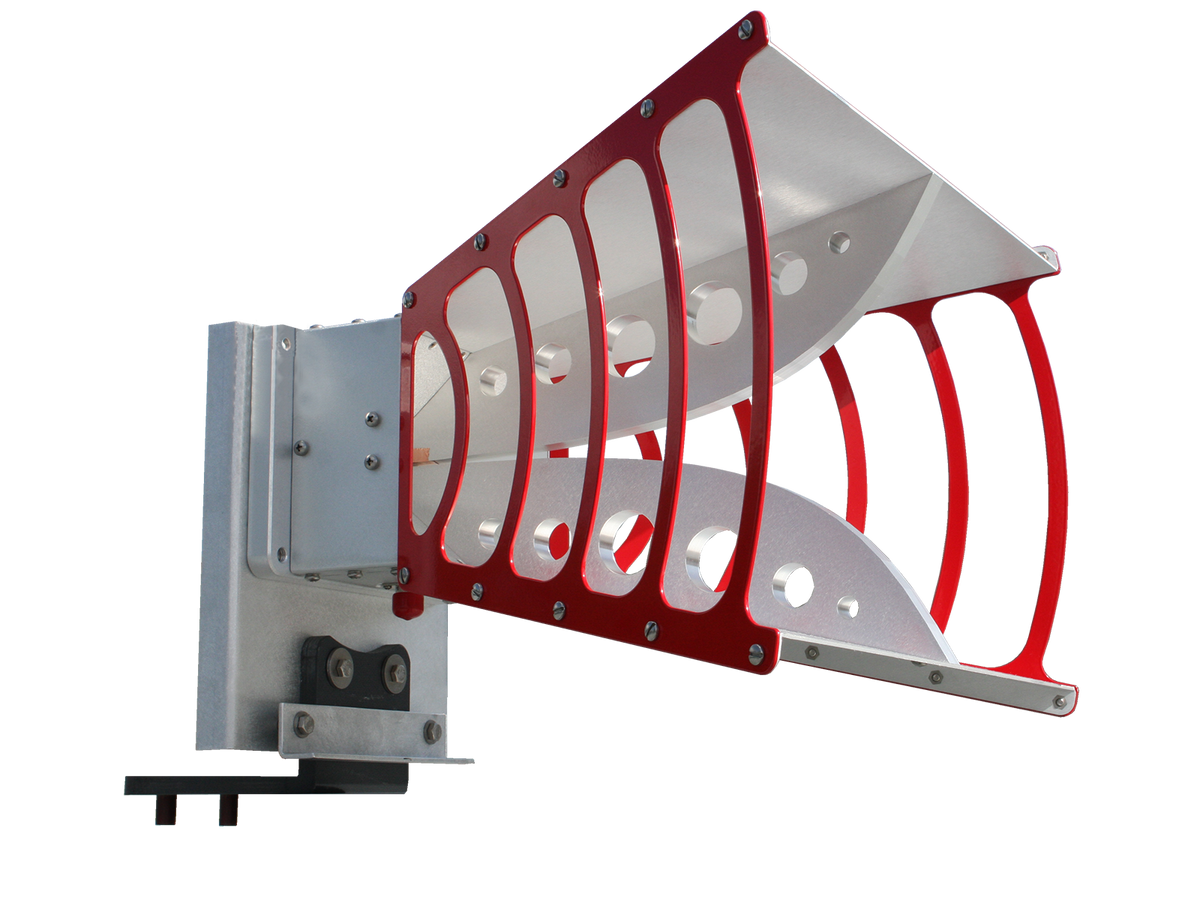

• 3119B Double-Ridged Waveguide Horn — The Model 3119B Double-Ridged Waveguide Horn Antenna is an ultra-broadband antenna and the latest addition to our family of double-ridged waveguides for wireless and EMC measurement. Frequency range: 400 MHz to 6 GHz.

Key Features

• 3106B: Uniform Gain; Low VSWR; Individually Calibrated; Integral Mounting
• 3112: Low VSWR; Uniform Gain; Continuous Power Handling: Up to 800 W
• 3115: Uniform Gain; Individually Calibrated; Low VSWR; Continuous Power Handling Capability: 300 W
• 3115-PB: Designed for MIL-STD 461; Fitted with a Pre-Amplifier for Increased Sensitivity; Extremely Low Antenna Factor; Flexible Mounting; Calibrated as a Single Unit
• 3116C: Power Handling Capability: 20 W; Low VSWR; Uniform Gain; Individually Calibrated
• 3116C-PA: Maintains Single Lobe Radiation, Allowing Accurate Measurement of Gains and Emissions; Fitted with a Pre-Amplifier for Increased Sensitivity; Extremely Low Antenna Factor: Less than 15 dB (1/m) for entire frequency range; Flexible Mounting
• 3117: Continuous Power Input Capacity: 300 W; Maintains Single Lobe Radiation Pattern Over Frequency; Uniform Gain; Low VSWR
• 3117-PB: Maintains Single Lobe Radiation, Allowing Accurate Measurement of Gains and Emissions; Fitted with a Pre-Amplifier for Increased Sensitivity; Extremely Low Antenna Factor; Flexible Mounting
• 3119B: Power Input Capacity: 1500 W; Optimized High Frequency Gain; Low VSWR; Flexible Mounting

Frequency range: 100MHz-40GHz

Official product pages: 3106B | 3112 | 3115 | 3115-PB | 3116C | 3116C-PA | 3117 | 3117-PB | 3119B
