ETS-Lindgren Broadband Mini-Bicon Antennas

Product Features

Frequency range: 30MHz-40GHz
3180D: 30 MHz to 1 GHz — Omnidirectional Pattern Ideal for: Chamber Characterization; Broadband Spectrum Monitoring; Field Measurements
3181: 500 MHz to 18 GHz — Ideal For: Chamber Characterization; Broadband Spectrum Monitoring; Omnidirectional Pattern
3183B: 1 GHz to 18 GHz — Input Power: Up to 20 W
3184: 1 GHz to 18 GHz — Omnidirectional Radiation Pattern Ideal For: Broadband Spectrum Monitoring; Harmonics Level Measurement IEC 61000-4-3 Weatherizing Kit
3185: 18 GHz to 40 GHz — Single Vertically Polarized Antenna; Low VSWR Across the Operating Frequency Range; Omnidirectional H-Plane Performance
Official ETS-Lindgren product
Enquire for quotation and configuration

Model 3180D 3181 3183B 3184 3185

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

ETS-Lindgren Broadband Mini-Bicon Antennas

ETS-Lindgren broadband mini-bicon antennas are compact omnidirectional antennas for chamber characterization and validation (FSNSA, CISPR 16-1-4 site VSWR), field surveys and spectrum monitoring from 30 MHz up to 40 GHz.

Models

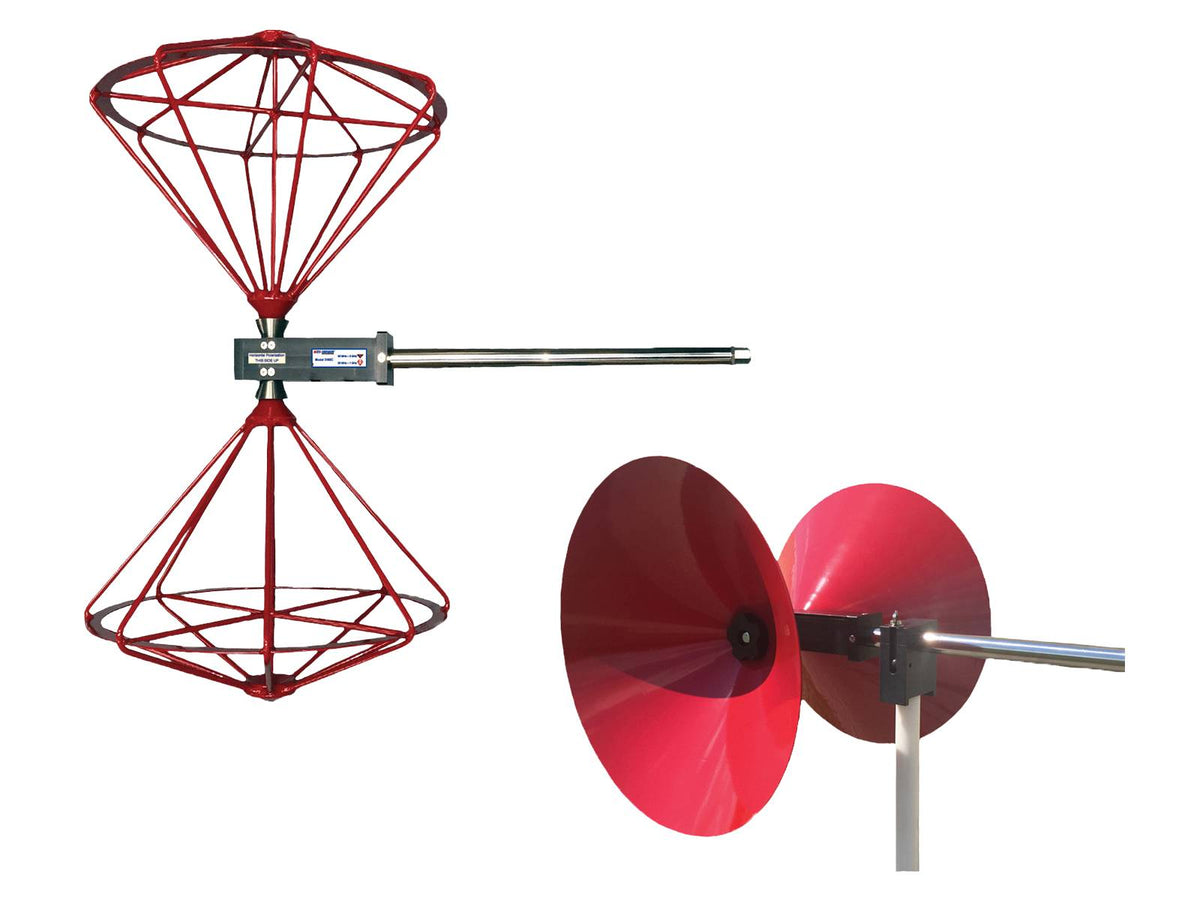

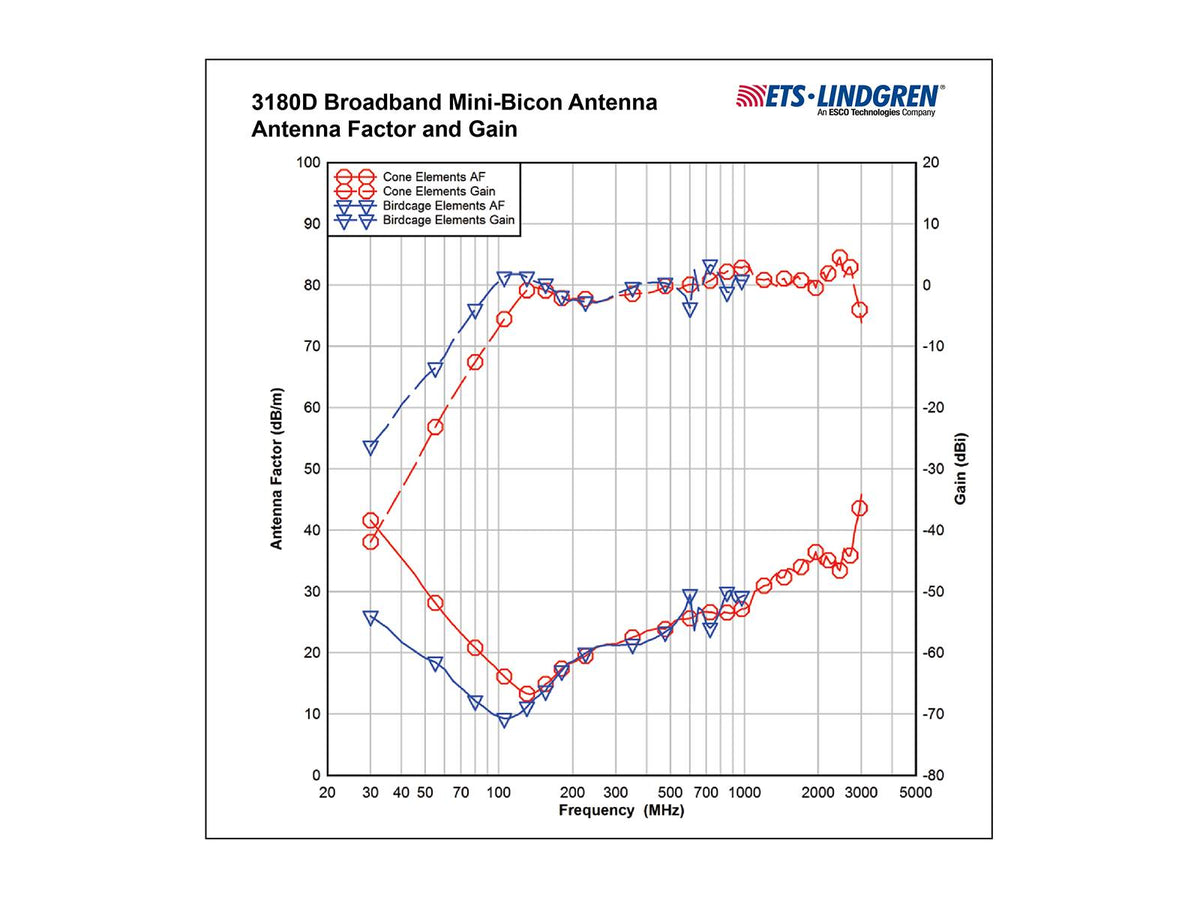

3180D Broadband Mini-Bicon Antenna — The Model 3180D Broadband Mini-Bicon Antenna has unique design elements that provide an omnidirectional pattern and is ideal for free space NSA (FSNSA) tests for fully anechoic rooms. Frequency range: 30 MHz to 1 GHz.

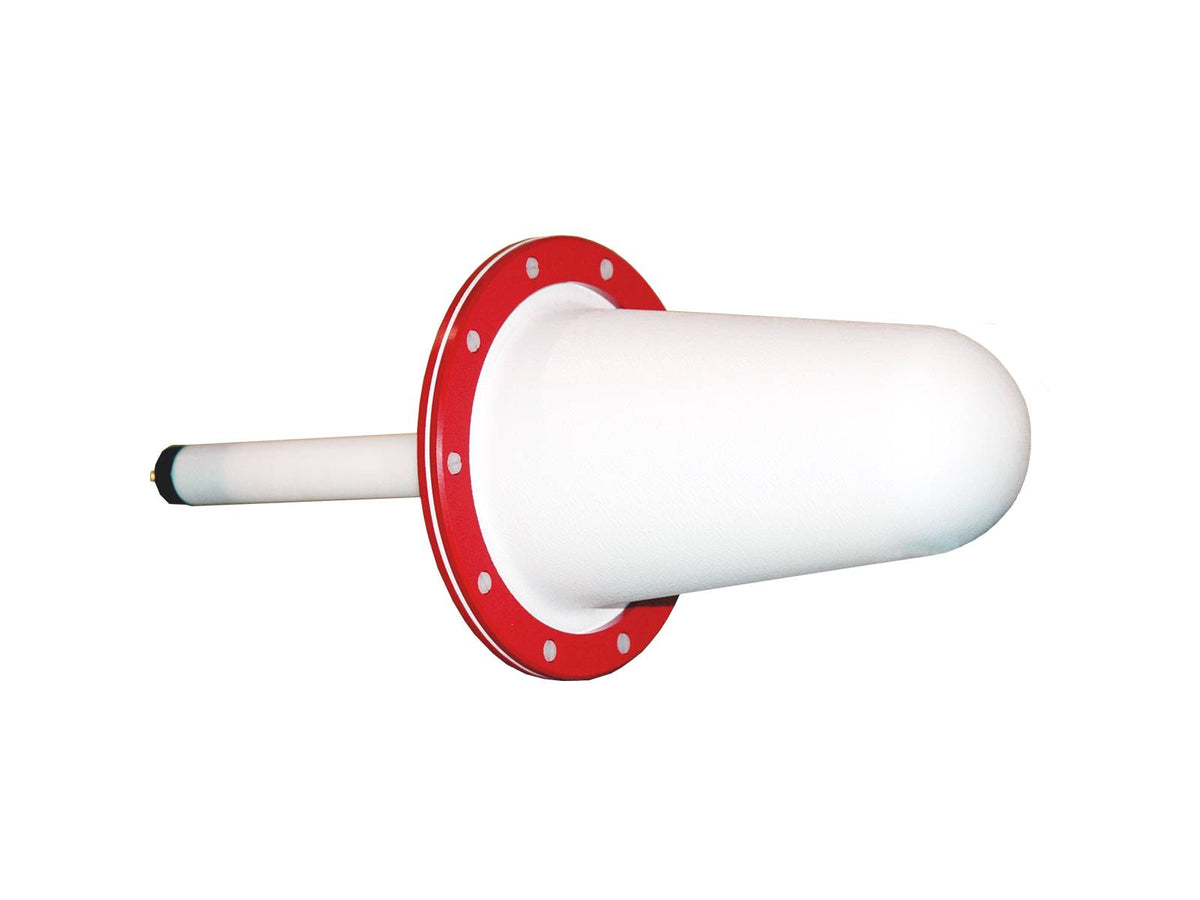

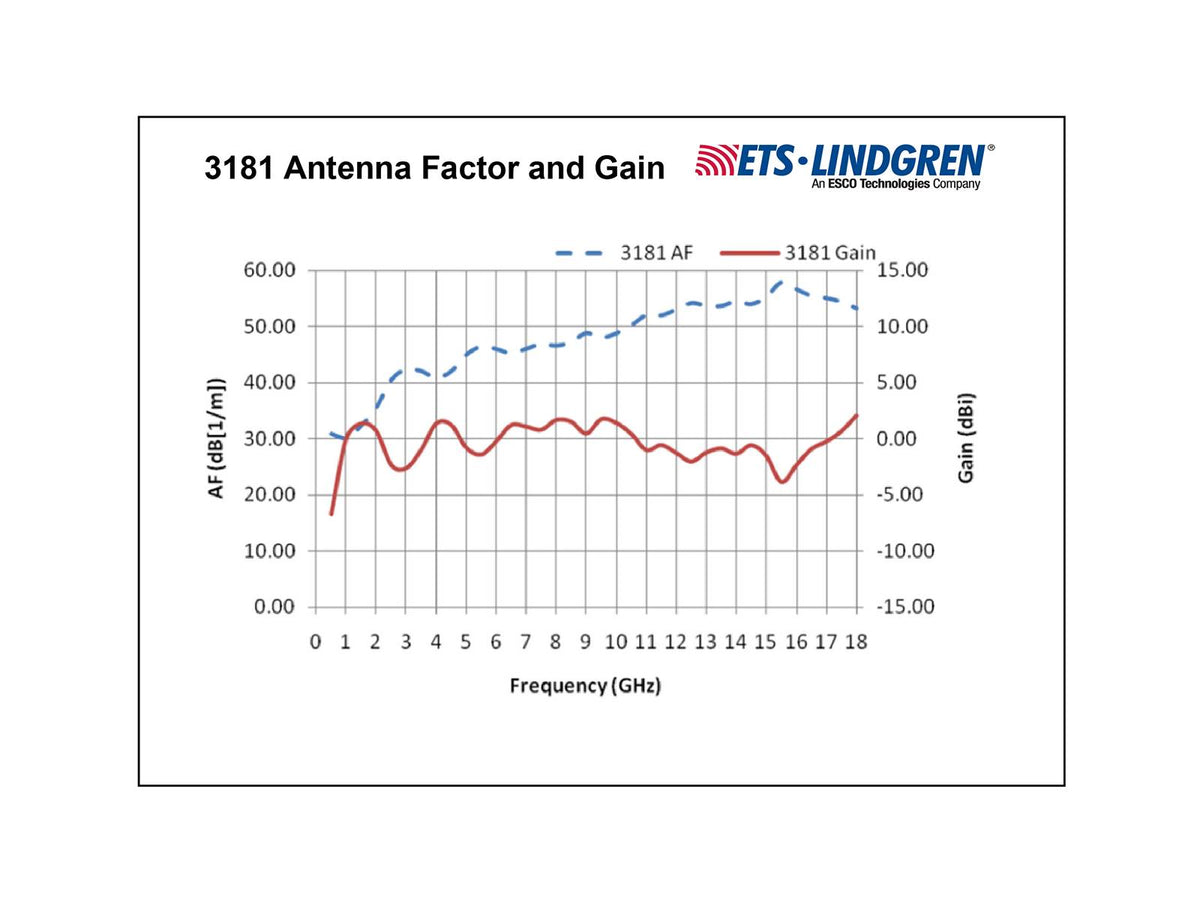

3181 Broadband Mini-Bicon Antenna — The Model 3181 Broadband Mini-Bicon Antenna delivers lightweight, omnidirectional performance for CISPR-compliant chamber characterization and portable spectrum monitoring. Frequency range: 500 MHz to 18 GHz.

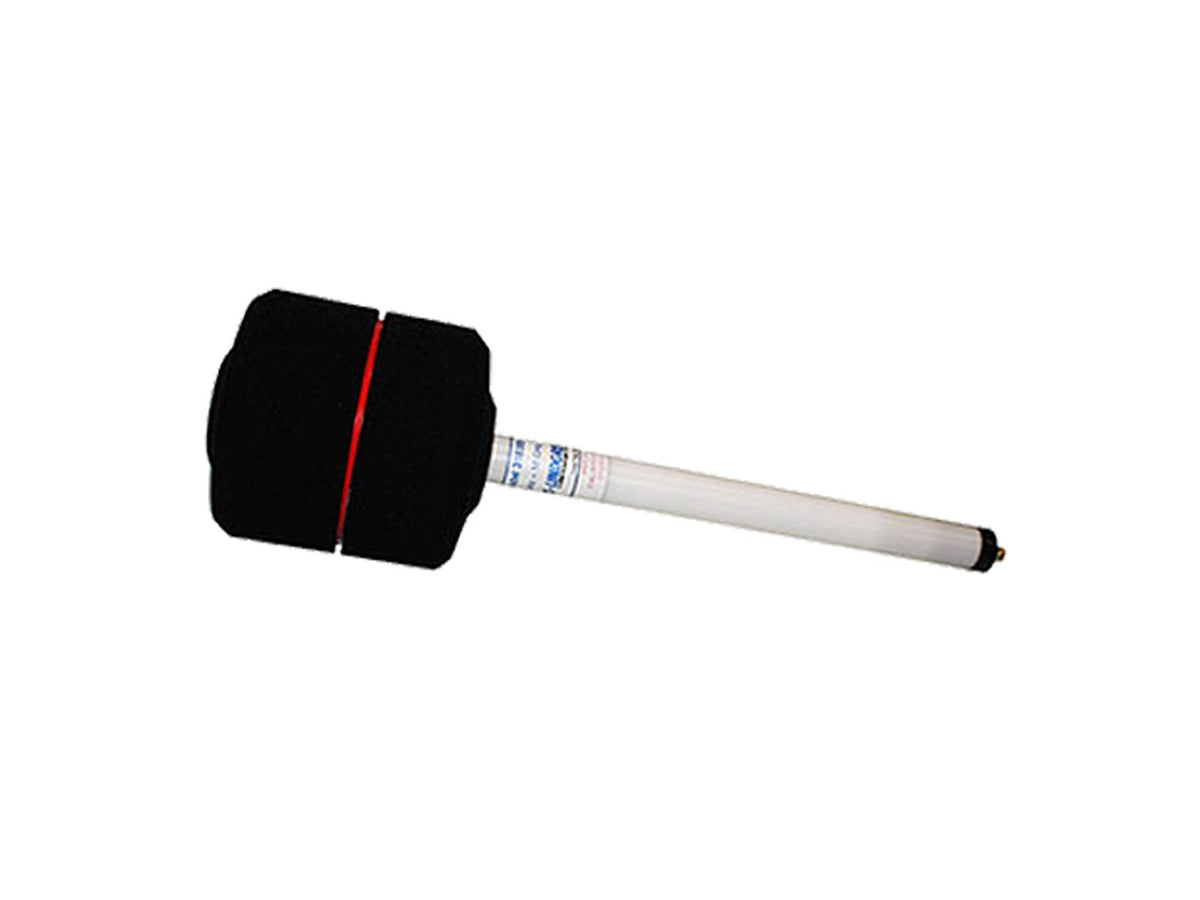

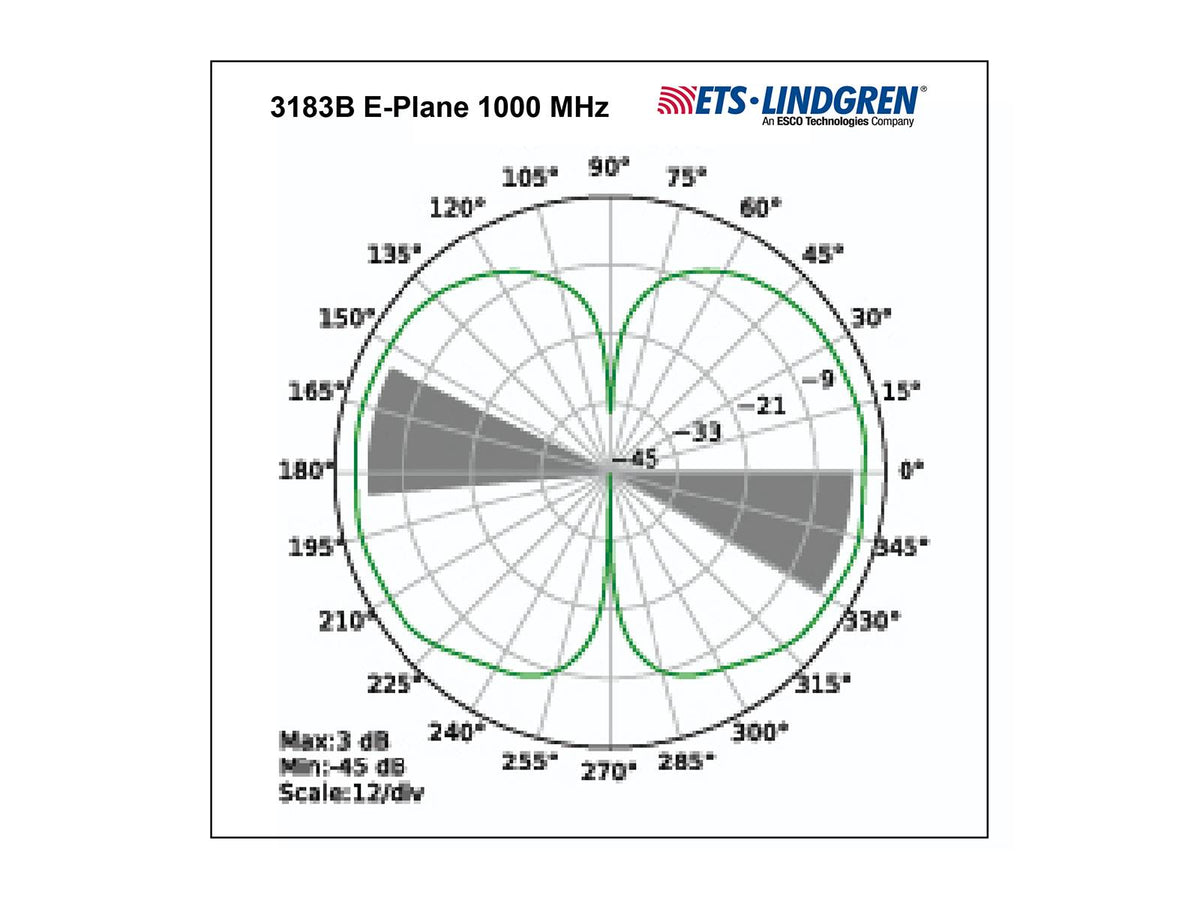

3183B Broadband Mini-Bicon Antenna — The Model 3183B Broadband Mini-Bicon Antenna provides compact, omnidirectional performance for CISPR chamber characterization, site VSWR verification, and portable field surveying applications. Frequency range: 1 GHz to 18 GHz.

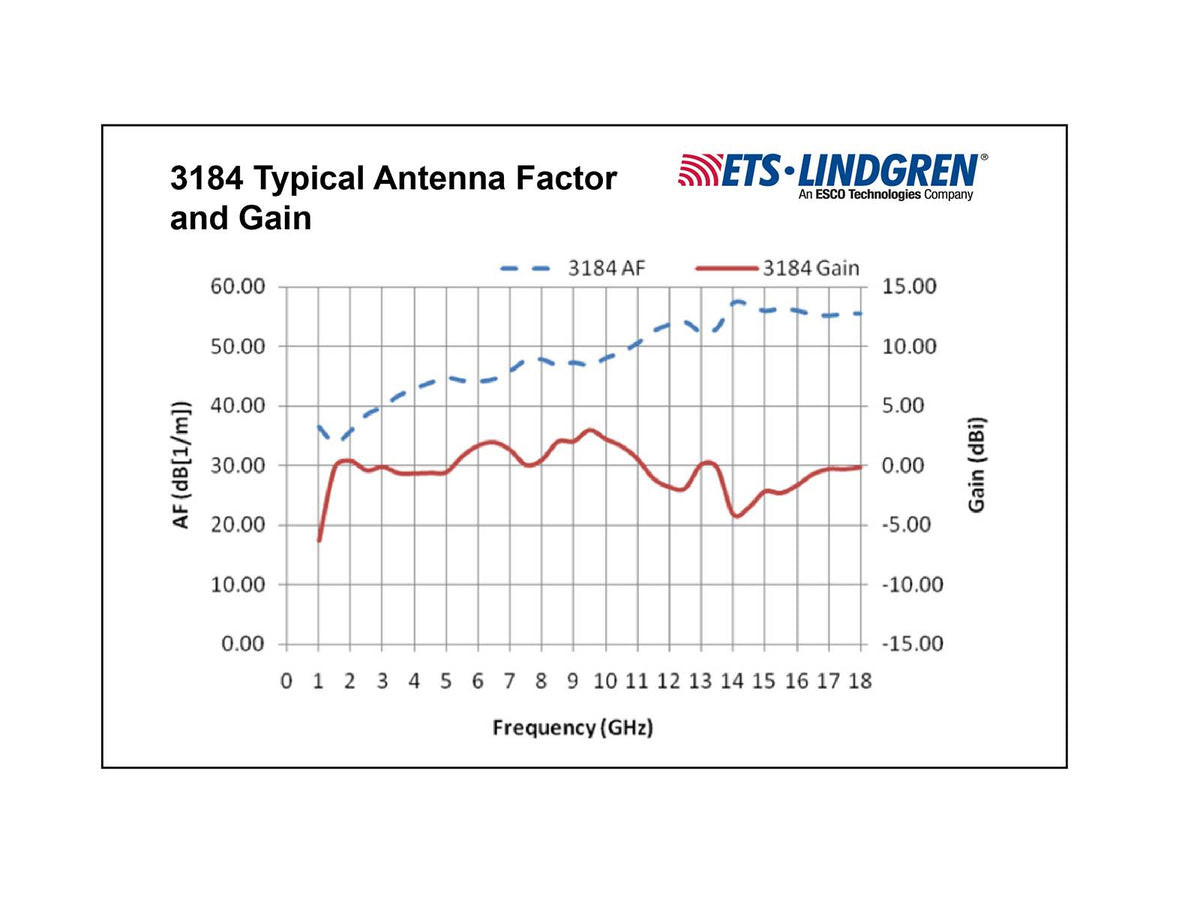

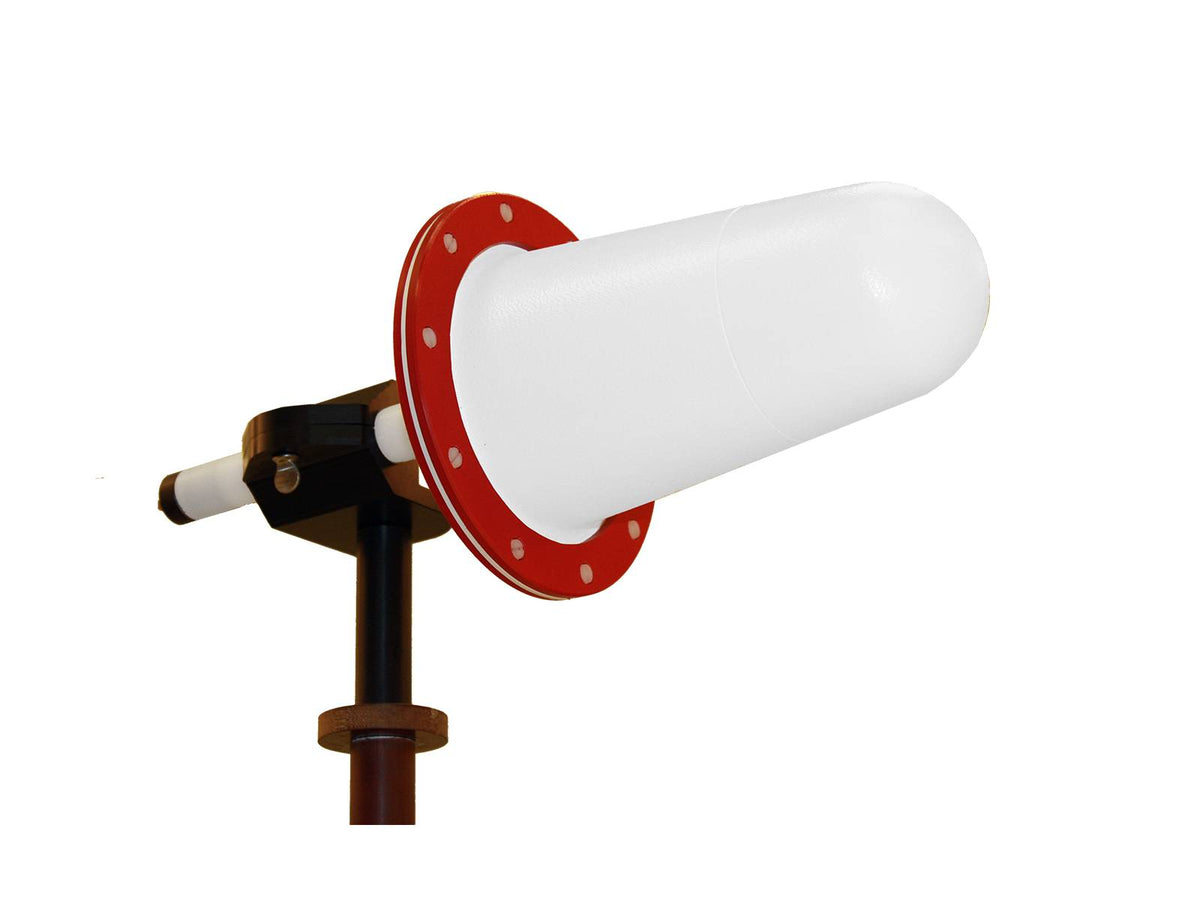

3184 Broadband Mini-Bicon Antenna — The Model 3184 Broadband Mini-Bicon Antenna delivers omnidirectional, low-VSWR performance in a compact, radome-protected design for EM field surveying, spectrum monitoring, and harmonic measurements. Frequency range: 1 GHz to 18 GHz.

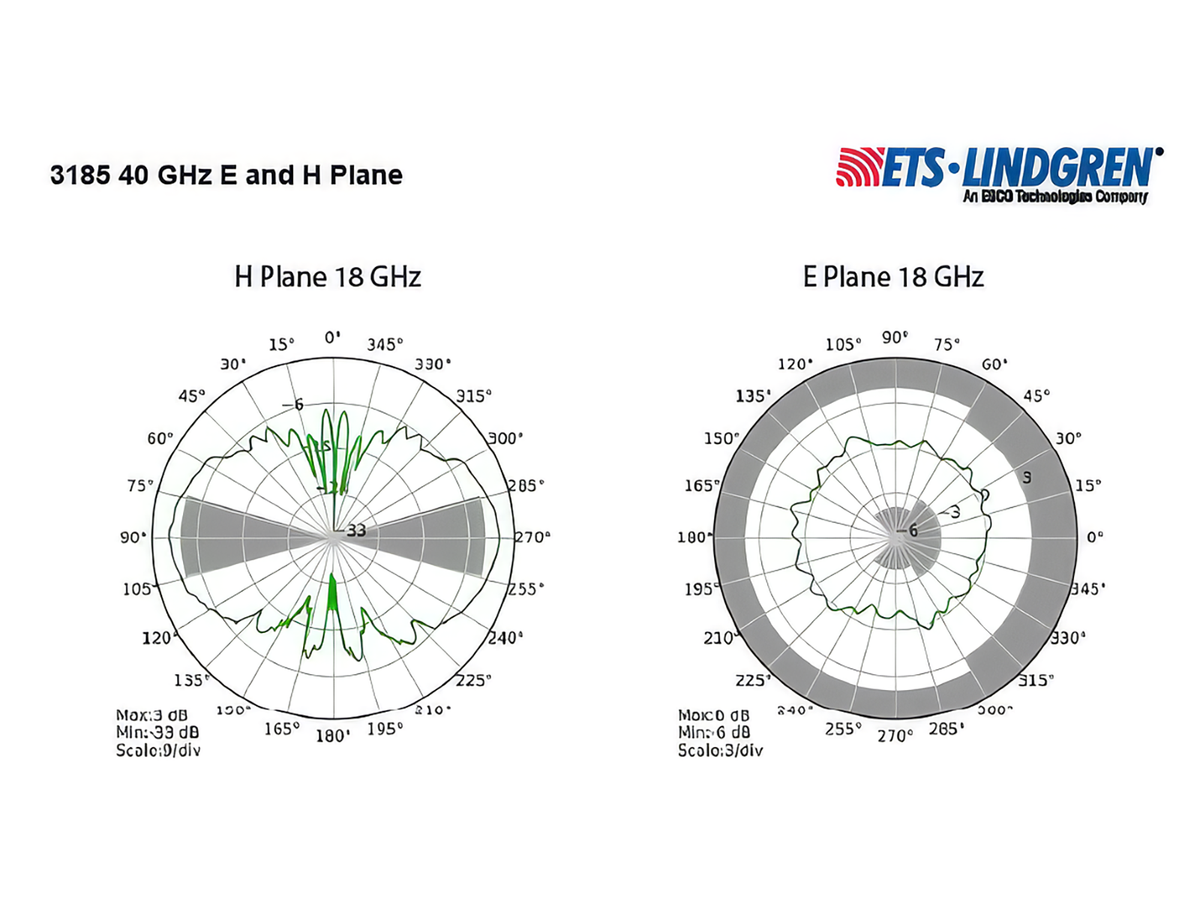

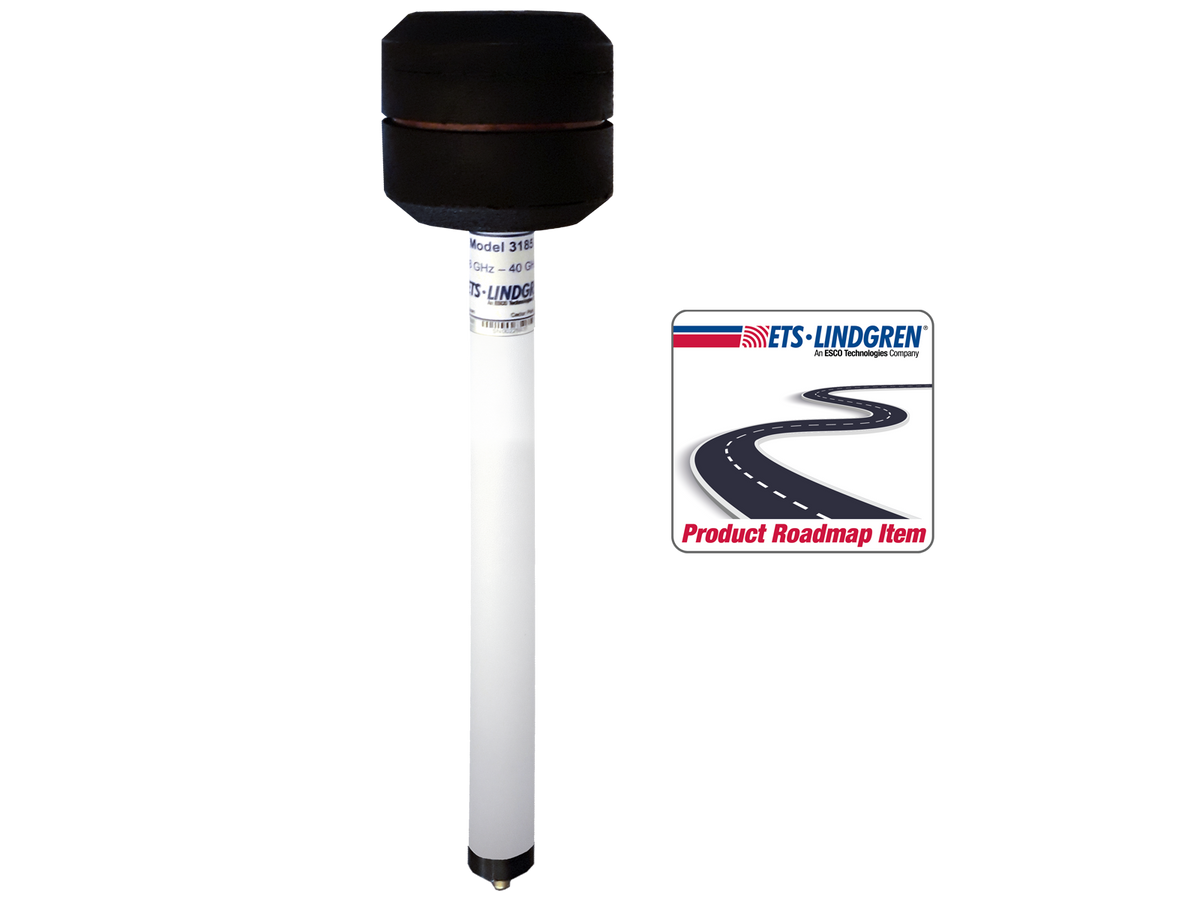

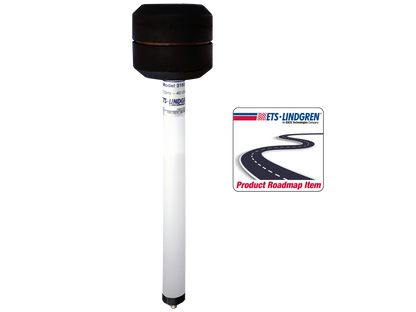

3185 Mini-Bicon Antenna — The Model 3185 Broadband Mini-Bicon Antenna provides continuous 18 GHz to 40 GHz coverage in a single vertically polarized antenna, eliminating the need for multiple antennas during high-frequency chamber validation. Engineered with low VSWR and stable omnidirectional H-plane performance, it supports accurate, repeatable measurements for CISPR 16-1-4 and emerging ANSI C63.25.3 chamber validation. Frequency range: 18 GHz to 40 GHz. (Product roadmap item — planned release Q4 2026; specifications preliminary.)

Key Features

3180D: Omnidirectional Pattern Ideal for: Chamber Characterization; Broadband Spectrum Monitoring; Field Measurements; Flexible Mounting
3181: Ideal For: Chamber Characterization; Broadband Spectrum Monitoring; Omnidirectional Pattern; CISPR 16/EN55016
3183B: Input Power: Up to 20 W
3184: Omnidirectional Radiation Pattern Ideal For: Broadband Spectrum Monitoring; Harmonics Level Measurement IEC 61000-4-3 Weatherizing Kit
3185: Single Vertically Polarized Antenna; Low VSWR Across the Operating Frequency Range; Omnidirectional H-Plane Performance; Supports CISPR 16-1-4 and Emerging ANSI C63.25.3 Chamber Validation

Frequency range: 30MHz-40GHz

Official product pages: 3180D | 3181 | 3183B | 3184 | 3185
