ETS-Lindgren BiConiLog Hybrid Antennas
ETS-Lindgren BiConiLog hybrid antennas combine a biconical (bowtie) element with a log-periodic dipole array, covering the traditional EMC frequency range in a single sweep for both radiated emissions and immunity testing.
Models

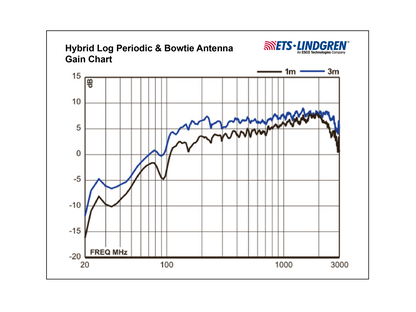

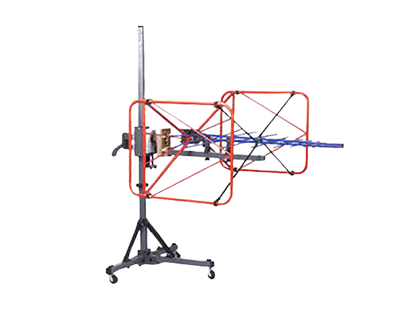

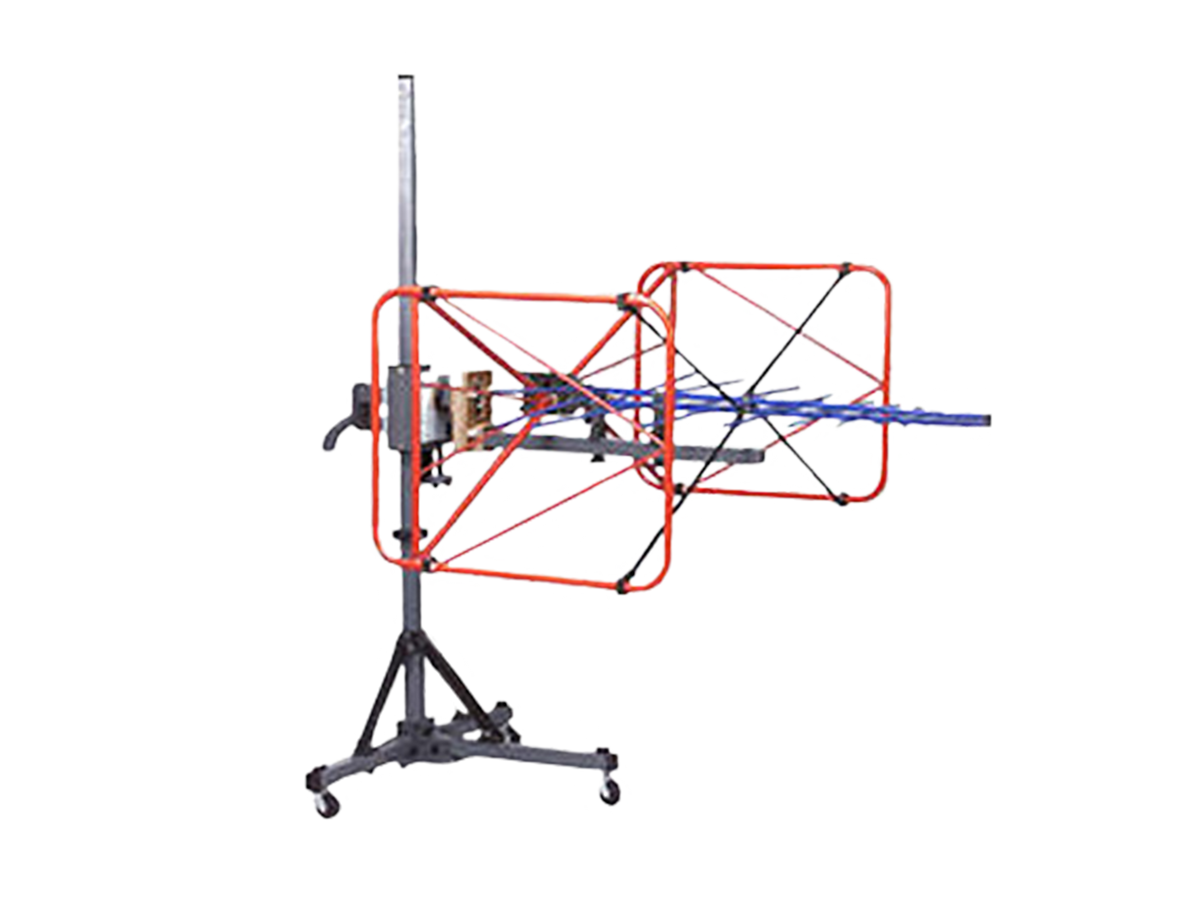

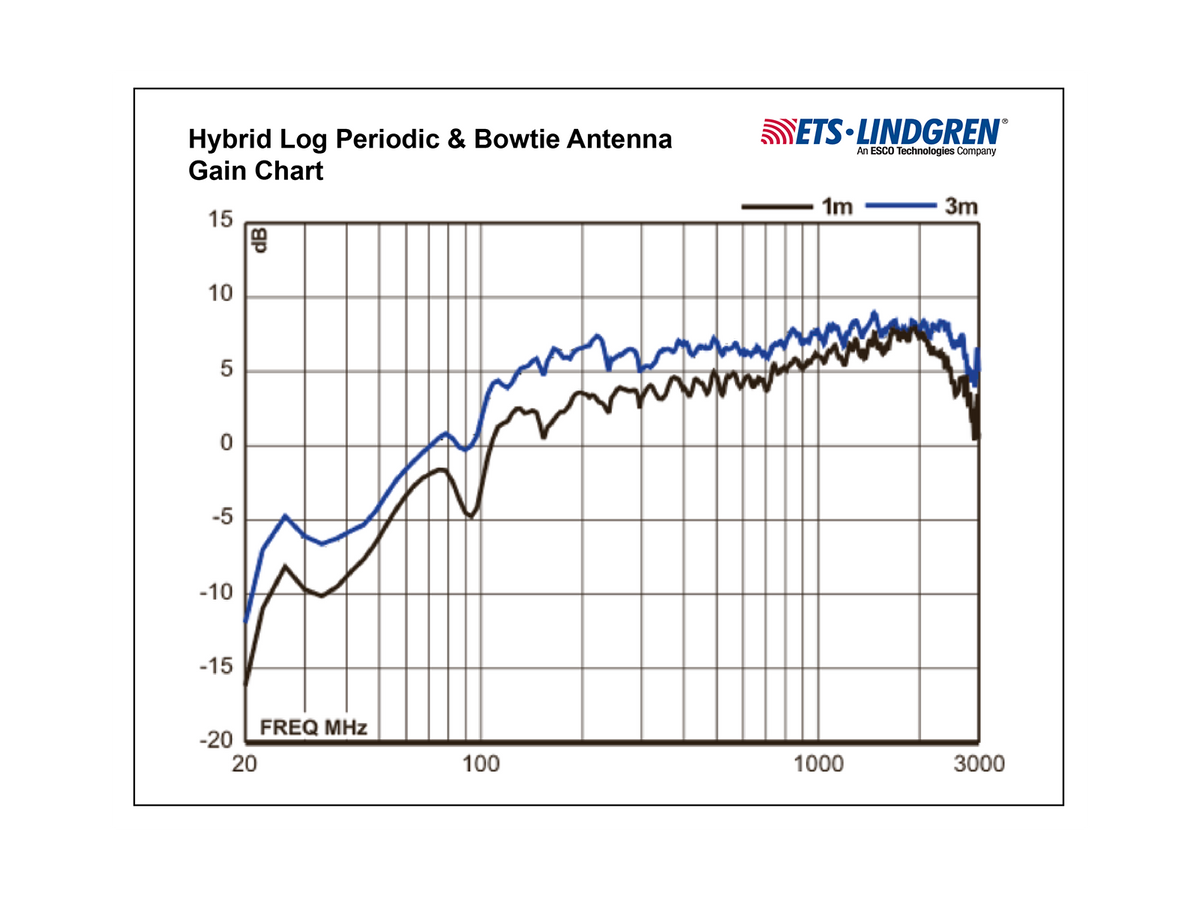

- 3140B Hybrid Log Periodic and Bowtie (BiConiLog™) — The Model 3140B BiConiLog Antenna delivers radiated immunity performance in a rugged, compact design for EMC testing. Frequency range: 26 MHz to 3 GHz.

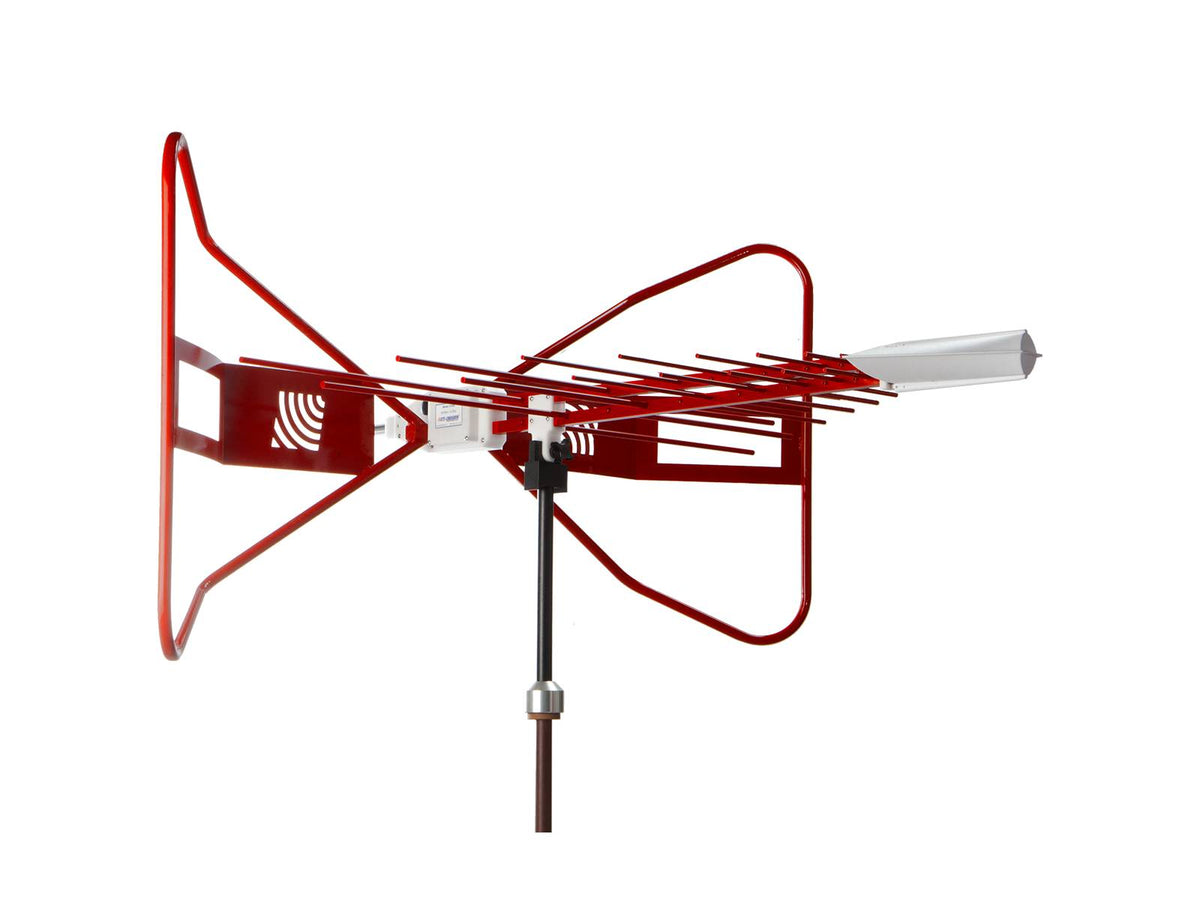

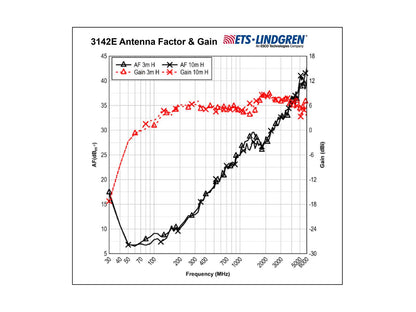

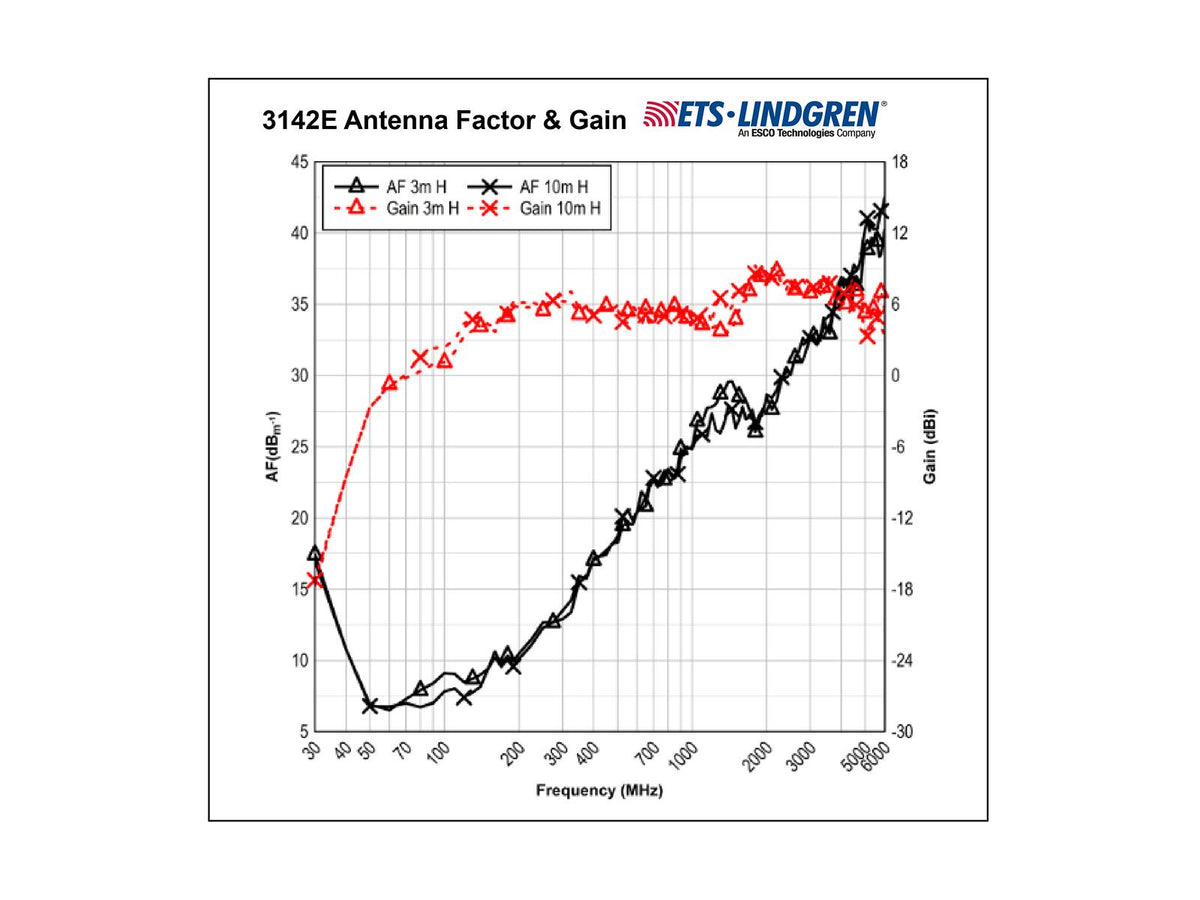

- 3142E BiConiLog™ Antenna — The Model 3142E BiConiLog combines hybrid antenna design and stable, calibrated performance to support accurate emissions and immunity measurements. Frequency range: 30 MHz to 6 GHz.

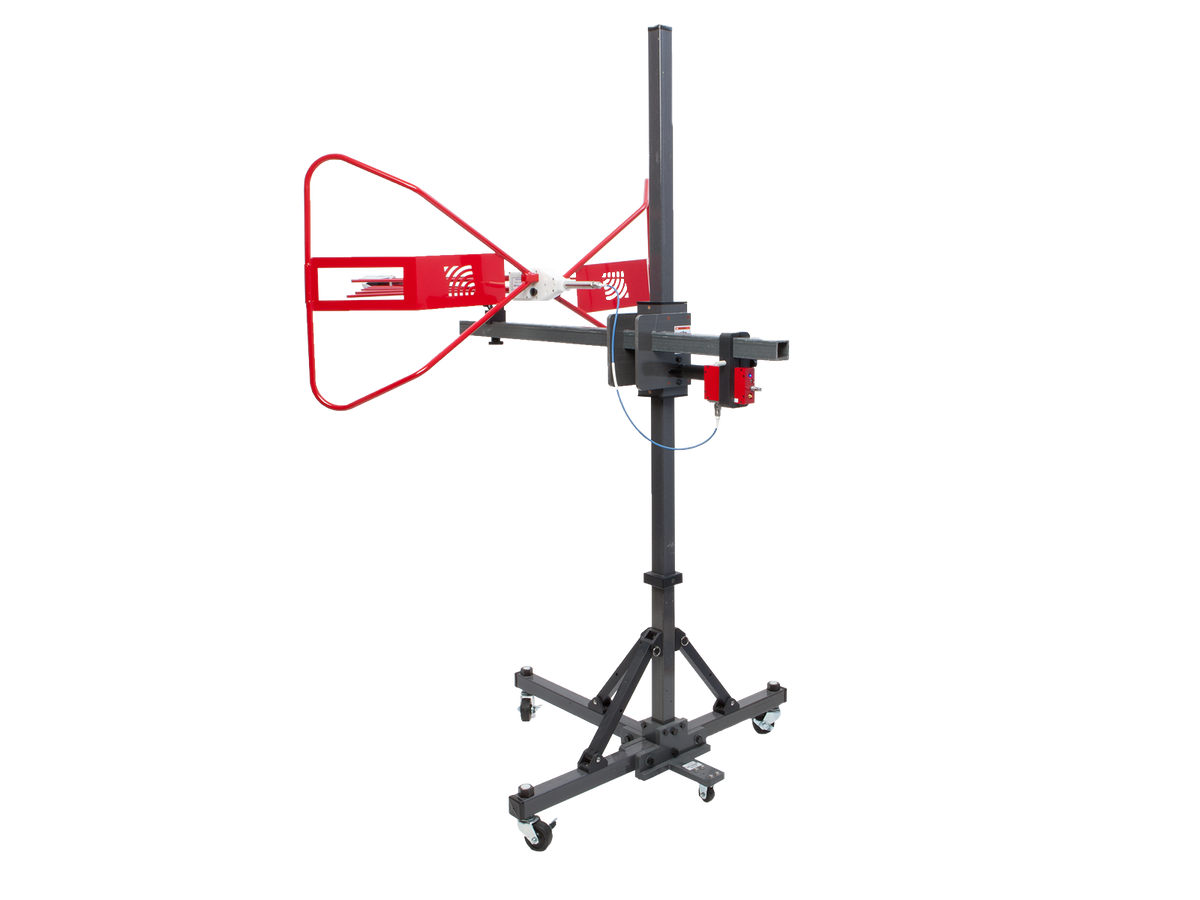

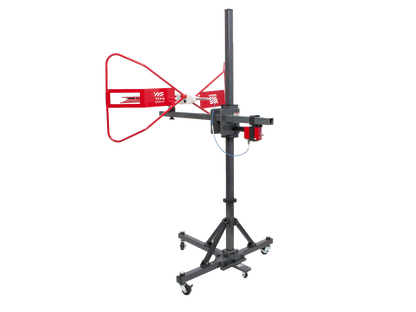

- 3142E-PB BiConiLog™ with Pre-Amplifier — The Model 3142E-PB BiConiLog combines broadband hybrid antenna performance and a built-in pre-amplifier to support accurate, calibrated emissions measurements across a wide frequency range. Frequency range: 30 MHz to 6 GHz.

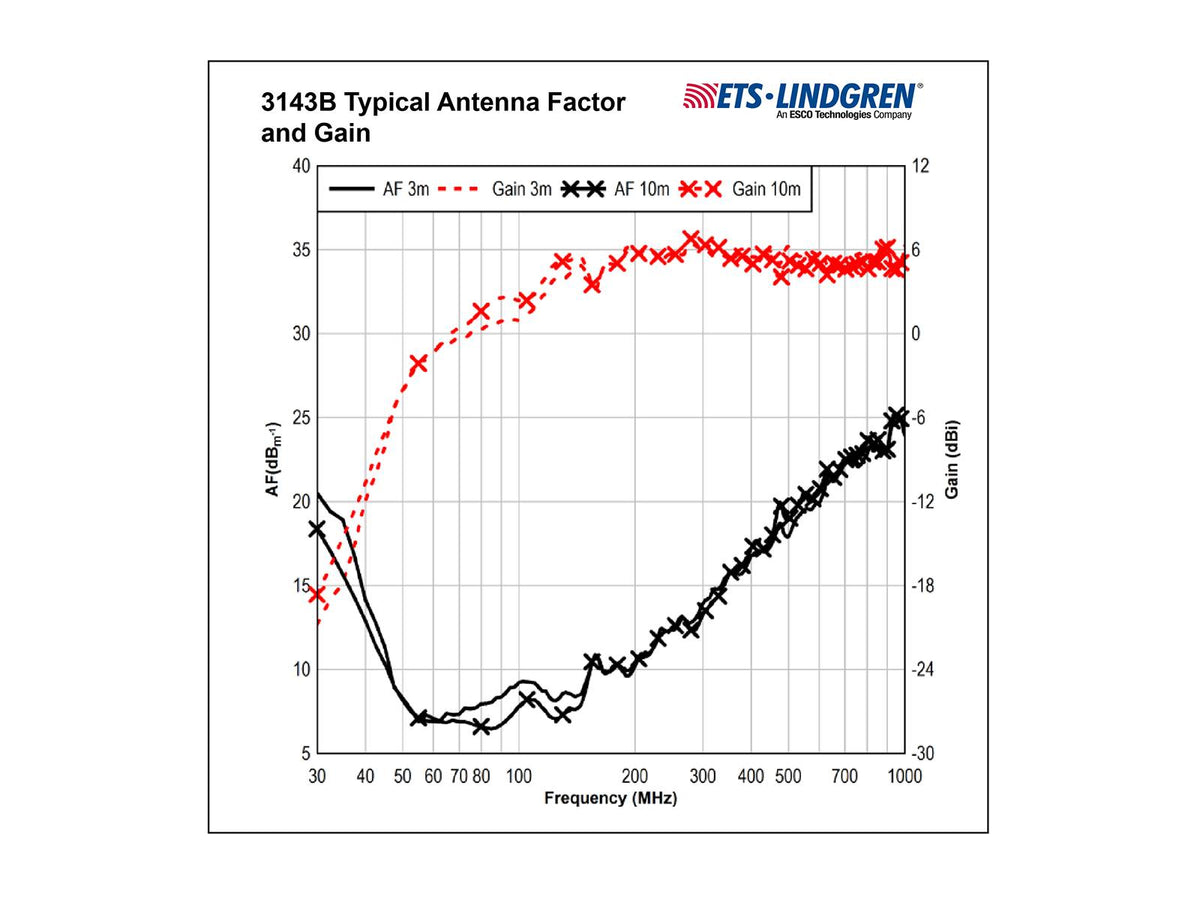

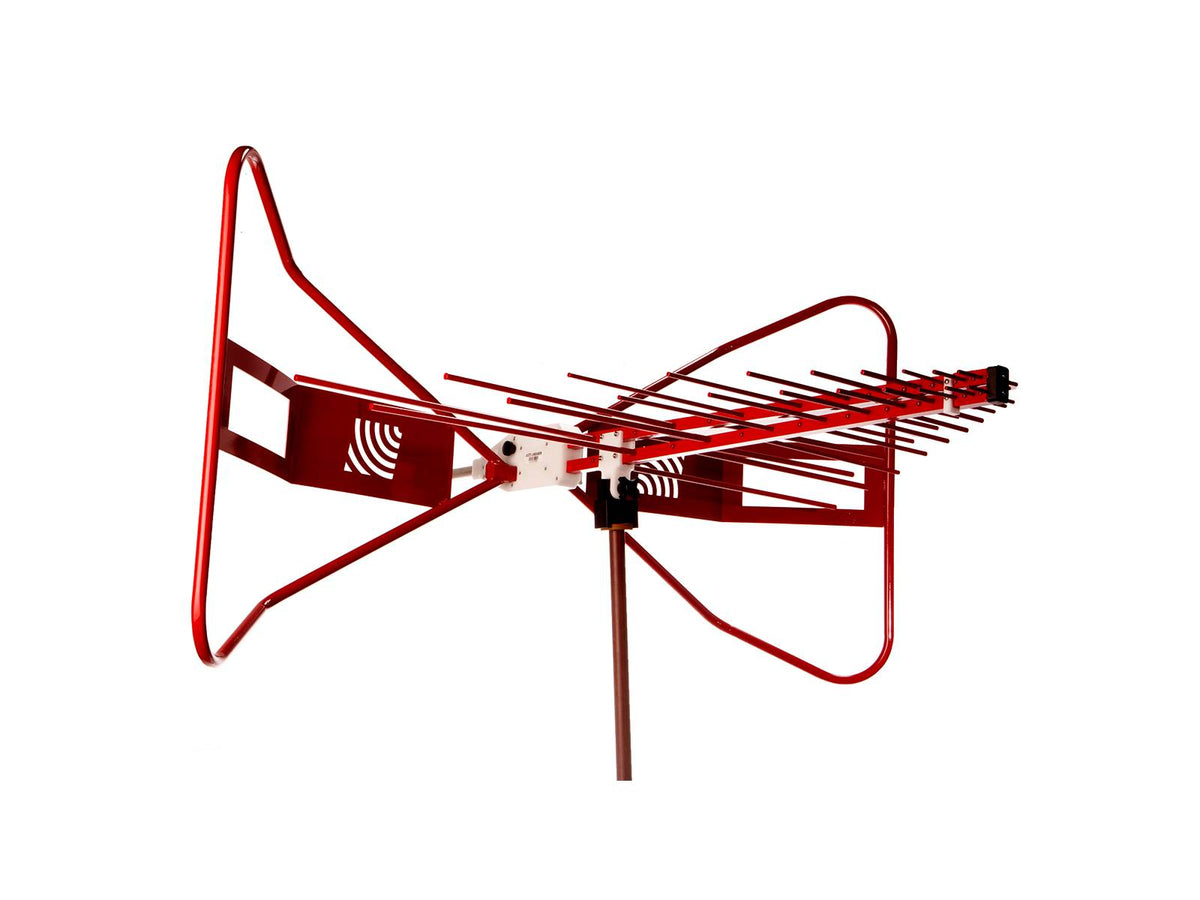

- 3143B BiConiLog™ Antenna — The Model 3143B BiConiLog simplifies EMC testing by replacing multiple antennas with one compact, calibrated solution for emissions and immunity measurements. Frequency range: 30 MHz to 1 GHz.

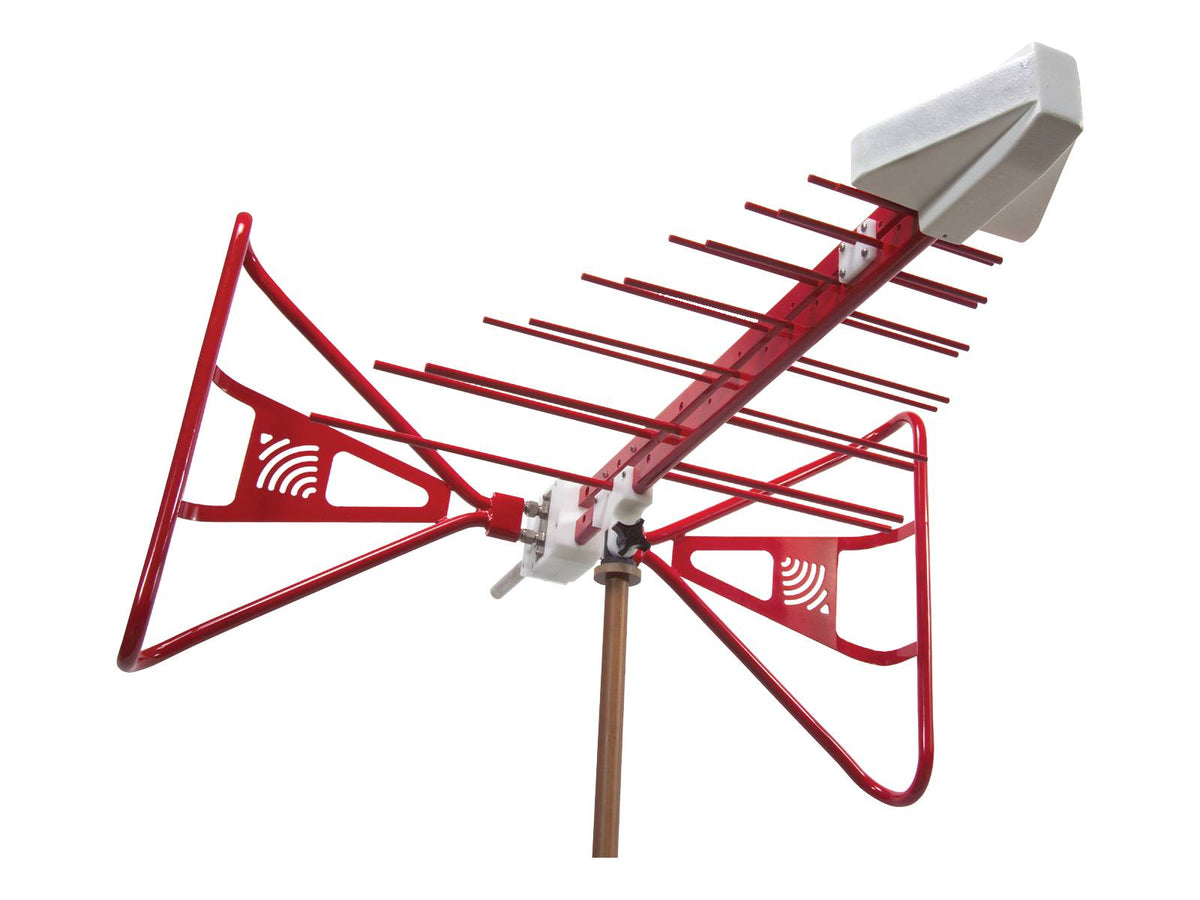

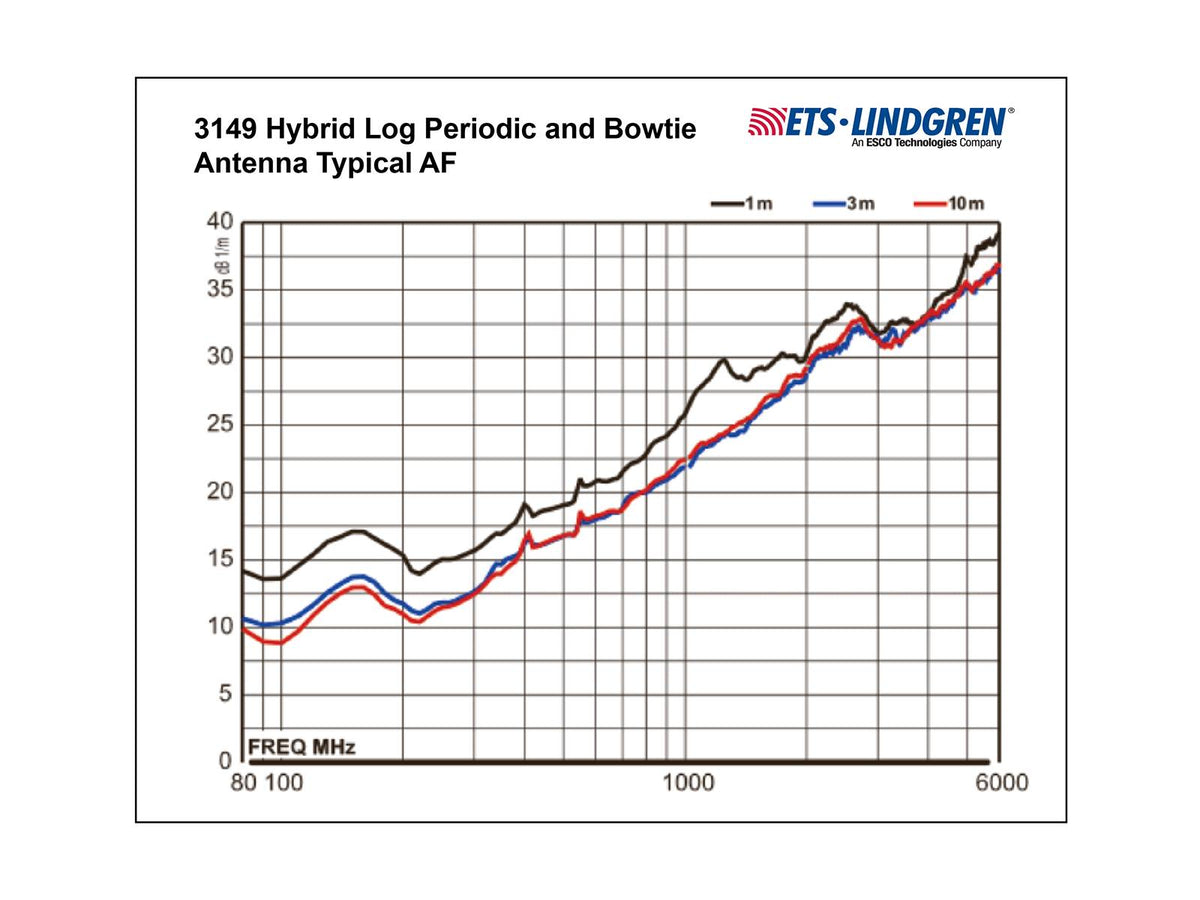

- 3149 Hybrid Log Periodic and Bowtie (BiConiLog™) — The Model 3149 Hybrid Log Periodic and Bowtie Antenna provides stable, repeatable ultra-broadband performance for EMC measurements. Frequency range: 80 MHz to 6 GHz.
Key Features
- 3140B: Two Year Warranty; Fits Compact Chambers; Tough Powder Coat Finish; Avg. 2:1 VSWR above 80 MHz; Best EMC RI Performance from 26 MHz to 80 MHz ≤ 300 W to generate 10 V/m above 30 MHz at 3m, 80% AM
- 3142E: Flexible Mounting; Covers both Immunity and Emissions Testing; Individually Calibrated
- 3142E-PB: Built-In Pre-Amplifier Module; Flexible Mounting; For Emissions Testing; Individually Calibrated
- 3143B: 3:1 VSWR Above 70 MHz for Emissions and Immunity Testing; Flexible Mounting; Individually Calibrated
- 3149: Maximum Continuous Power: 750 W; Input Meets CISPR Cross Polarization Requirements; On-Axis Antenna Polarization
Frequency range: 26MHz-6GHz
Official product pages: 3140B | 3142E | 3142E-PB | 3143B | 3149
