ETS-Lindgren Biconical Antennas

Product Features

Frequency range: 20MHz-300MHz
3104D: 20 MHz to 200 MHz — Compact Size for Use in Limited Space; Quality Construction for Trouble-Free Service; Unique Elemental Design Improves Performance
3109: 20 MHz to 300 MHz — Peak Power Handling Capability: up to 2 kW; Unique Elemental Design Improves Performance; Compact Size for Use in Limited Space
3110C: 30 MHz to 300 MHz — Compact Size for Use in Limited Space; Unique Elemental Design Improves Performance; Improved Balun Design for Increased Efficiency
3158: 20 MHz to 120 MHz — Power Handling: Up to 5 kW; Rugged Fabrication with Powder-coated Elements; Elements Can Be Removed for Transportation and Storage
3159C: 30 MHz to 100 MHz — Biconical Elements (2 each); High Power Balun Handles Up to 15 kW RF Input Power; Tilt-angle and Polarization are Easily Adjustable (Optional Pedestal)
Official ETS-Lindgren product
Enquire for quotation and configuration

Model 3104D 3109 3110C 3158 3159C

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

ETS-Lindgren Biconical Antennas

ETS-Lindgren biconical antennas are broadband, linearly polarized antennas for radiated emissions and radiated immunity testing in the 20 MHz to 300 MHz range, suited to ANSI C63.4, FCC, CISPR/EN and MIL-STD measurements.

Models

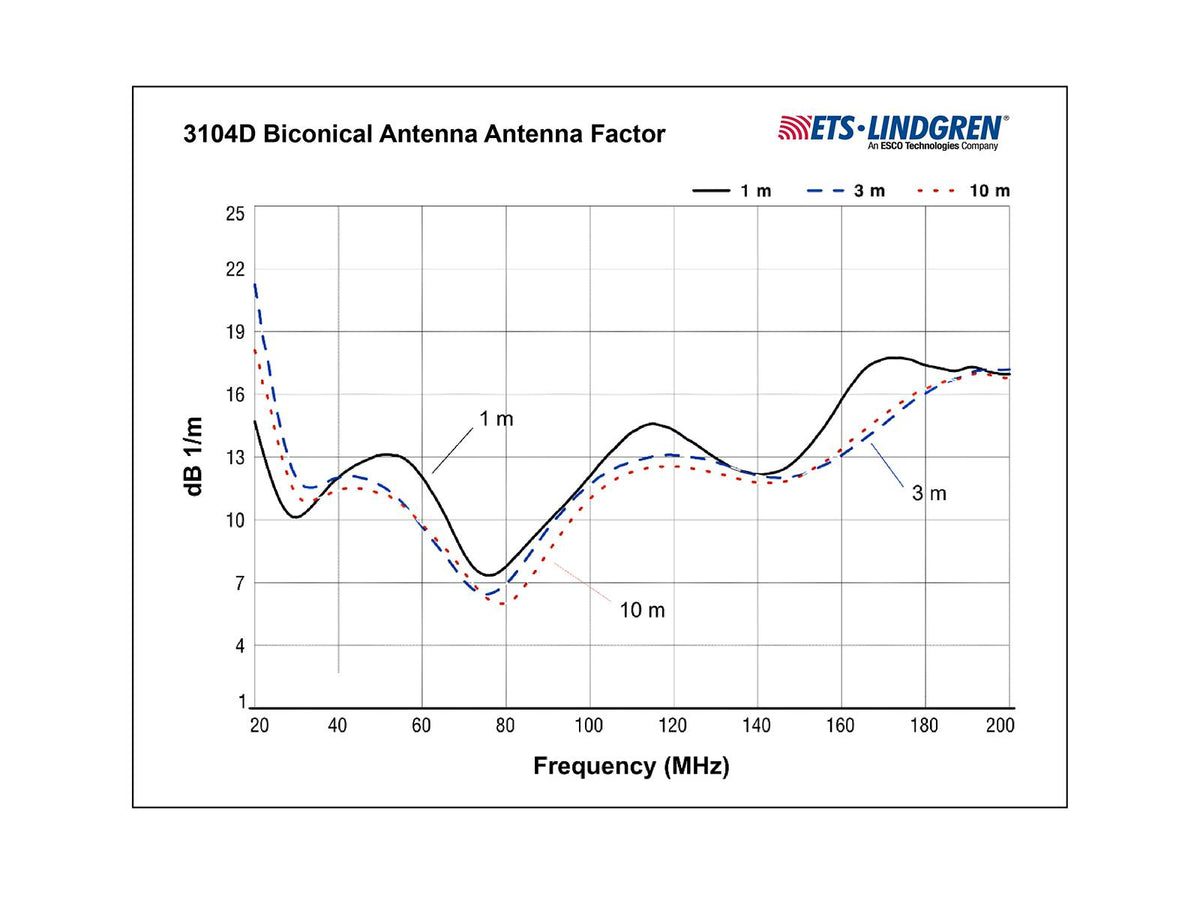

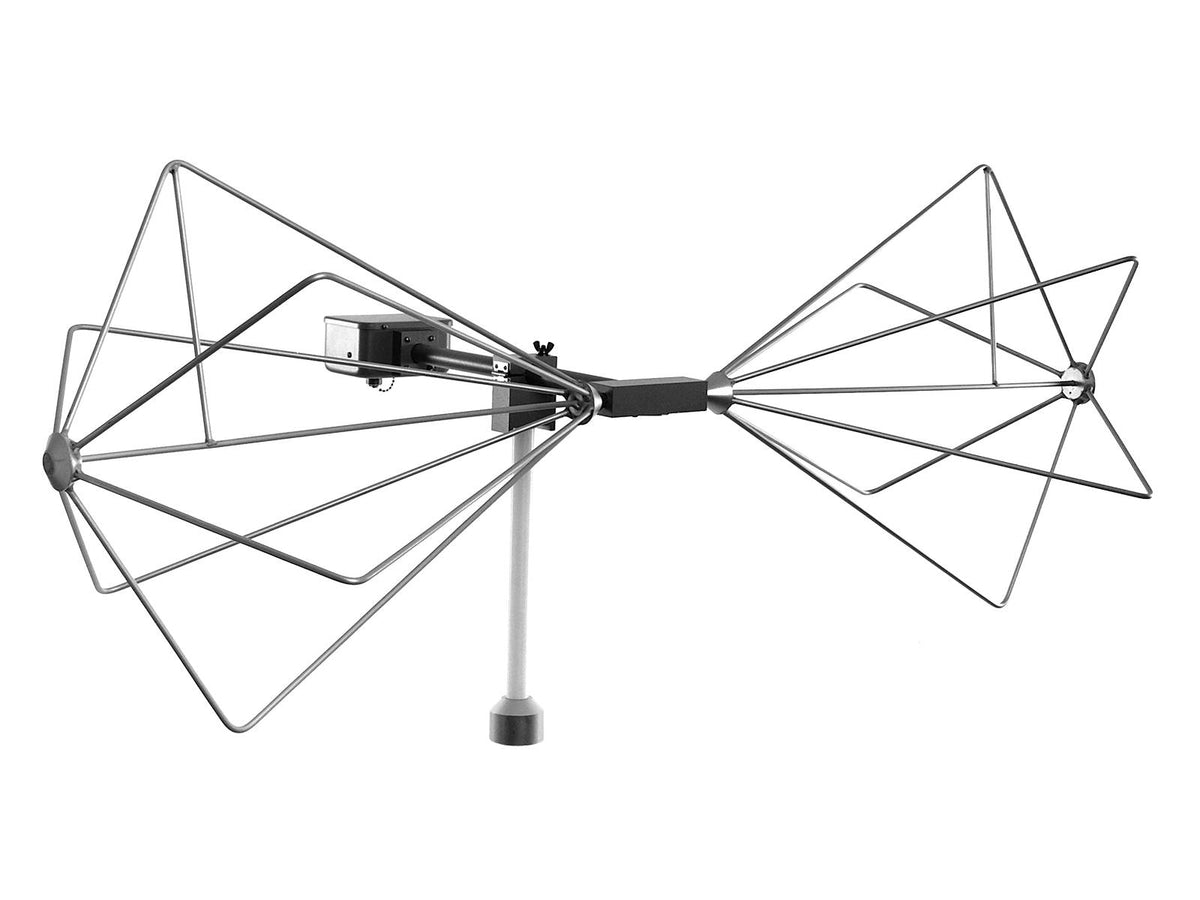

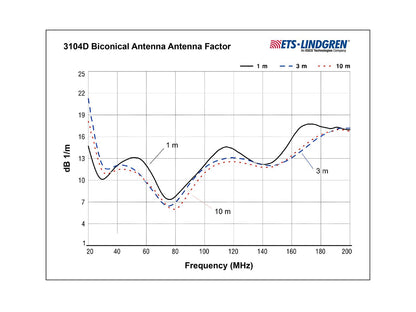

3104D Biconical Antenna — The Model 3104D Biconical Antenna provides reliable radiated immunity performance in a compact design, with optional extended elements to efficiently generate high fields at low frequencies. Frequency range: 20 MHz to 200 MHz.

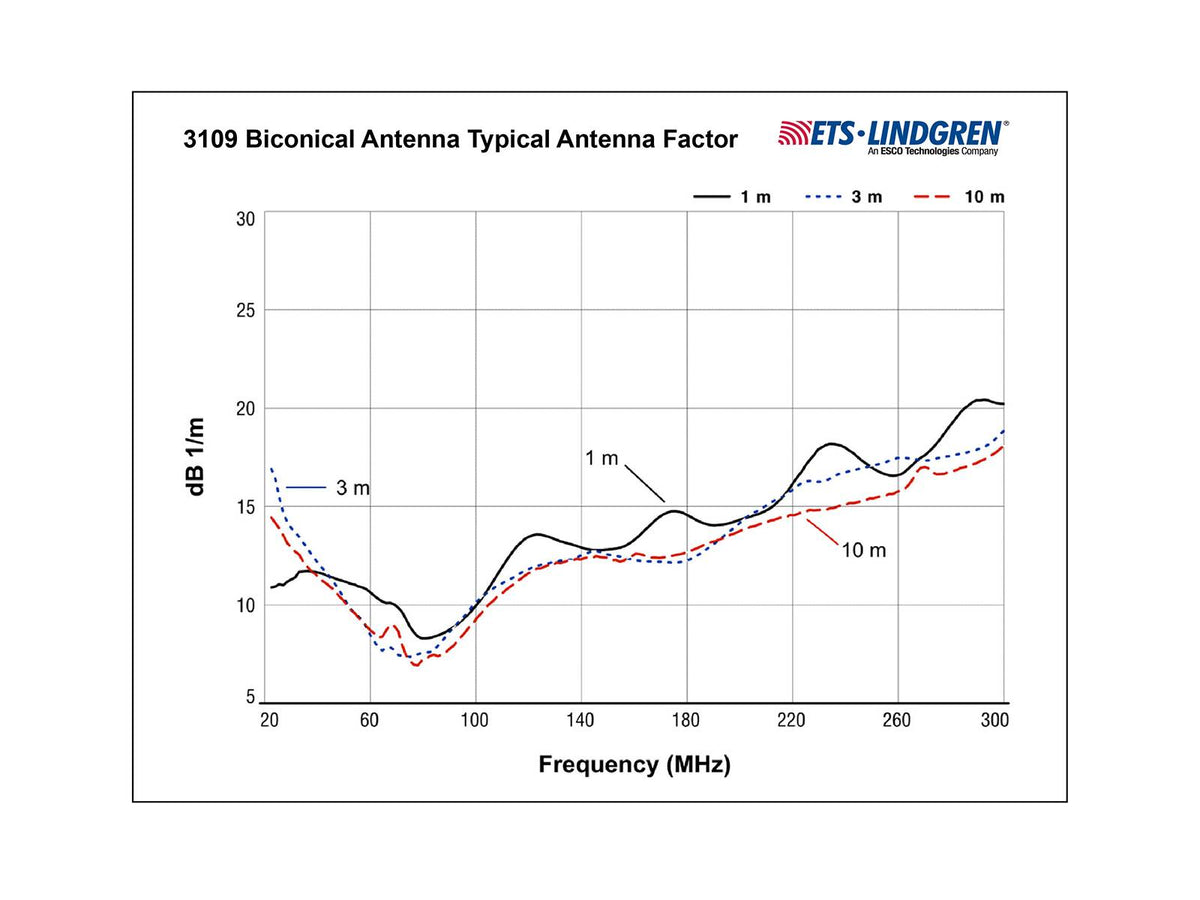

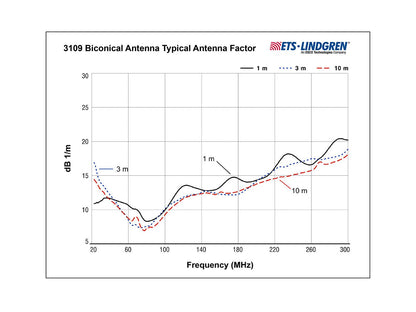

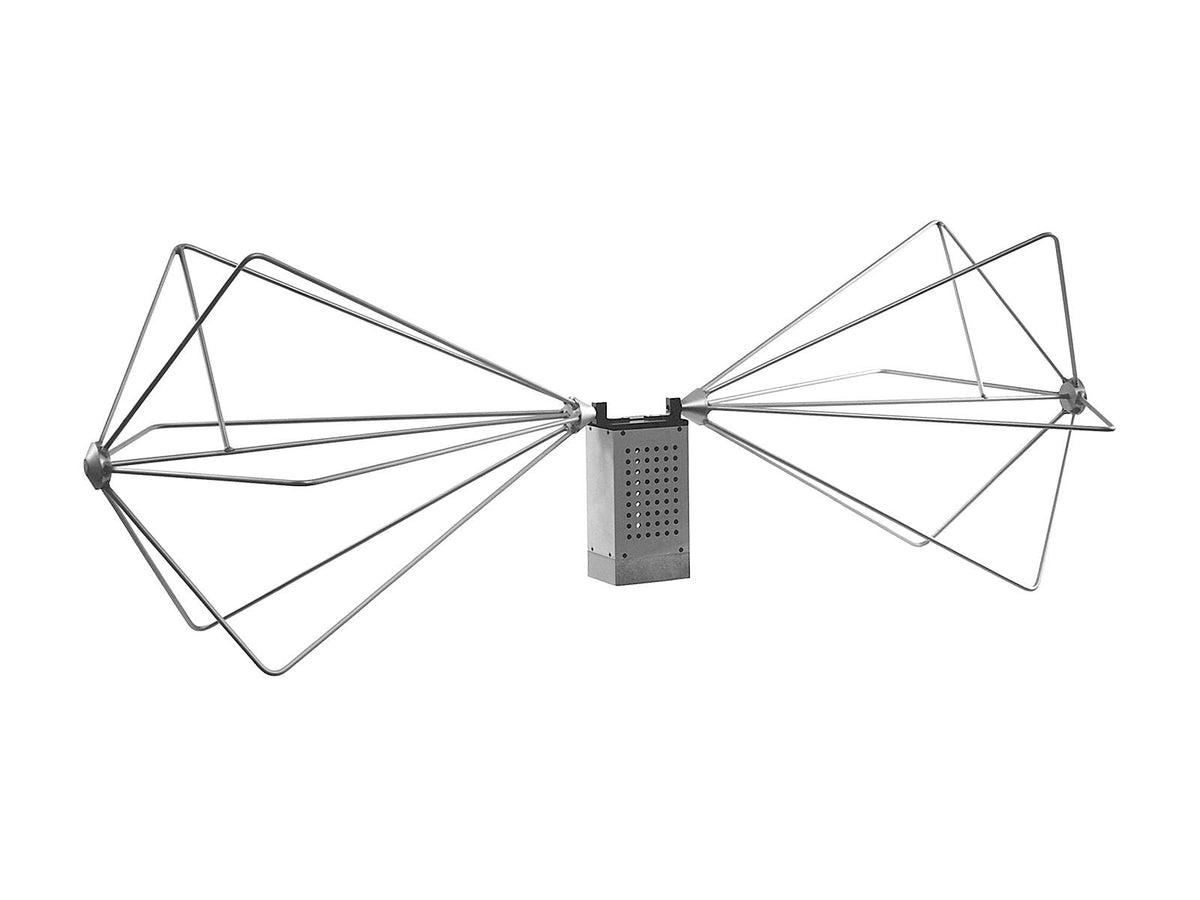

3109 Biconical Antenna — The Model 3109 Biconical Antenna delivers high field strength and high power handling in a rugged, compact design optimized for IEC 61000-4-3 radiated immunity testing. Frequency range: 20 MHz to 300 MHz.

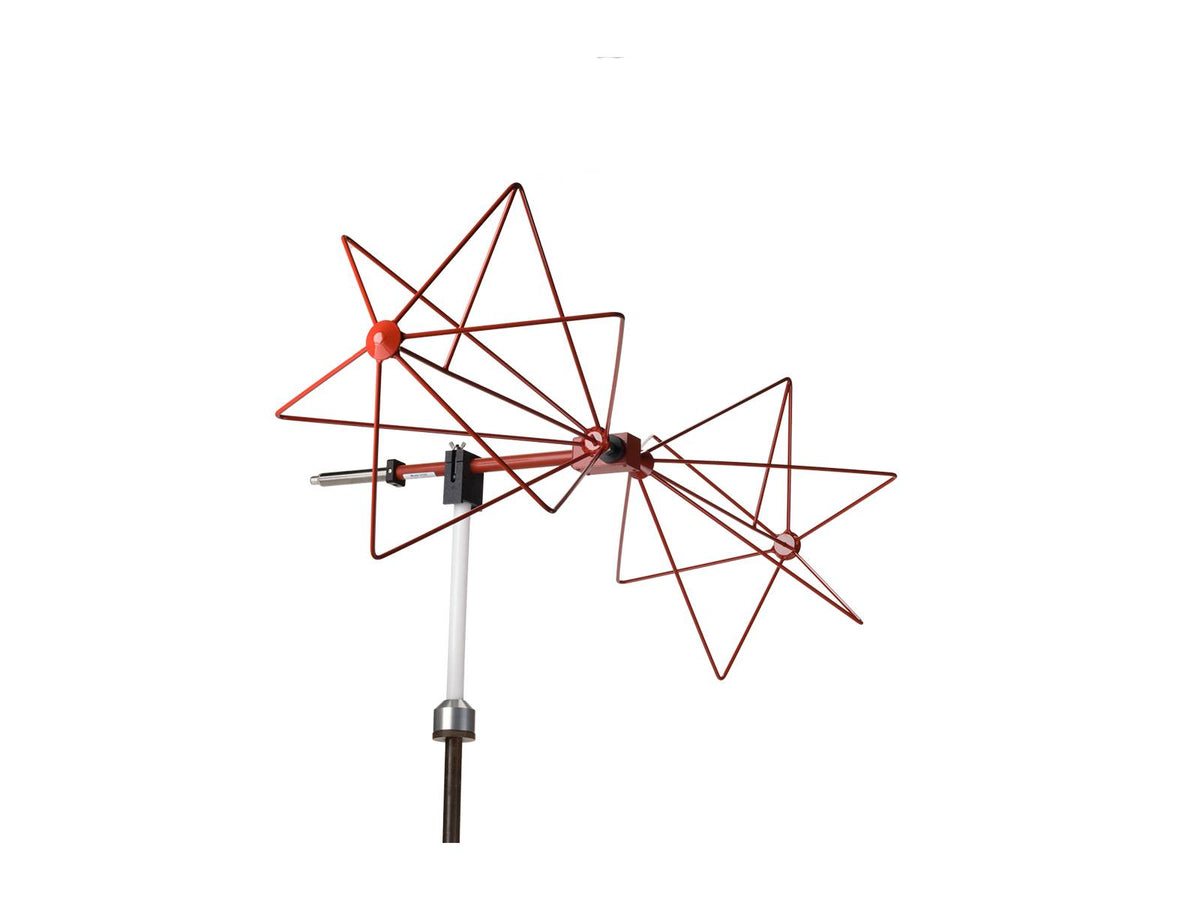

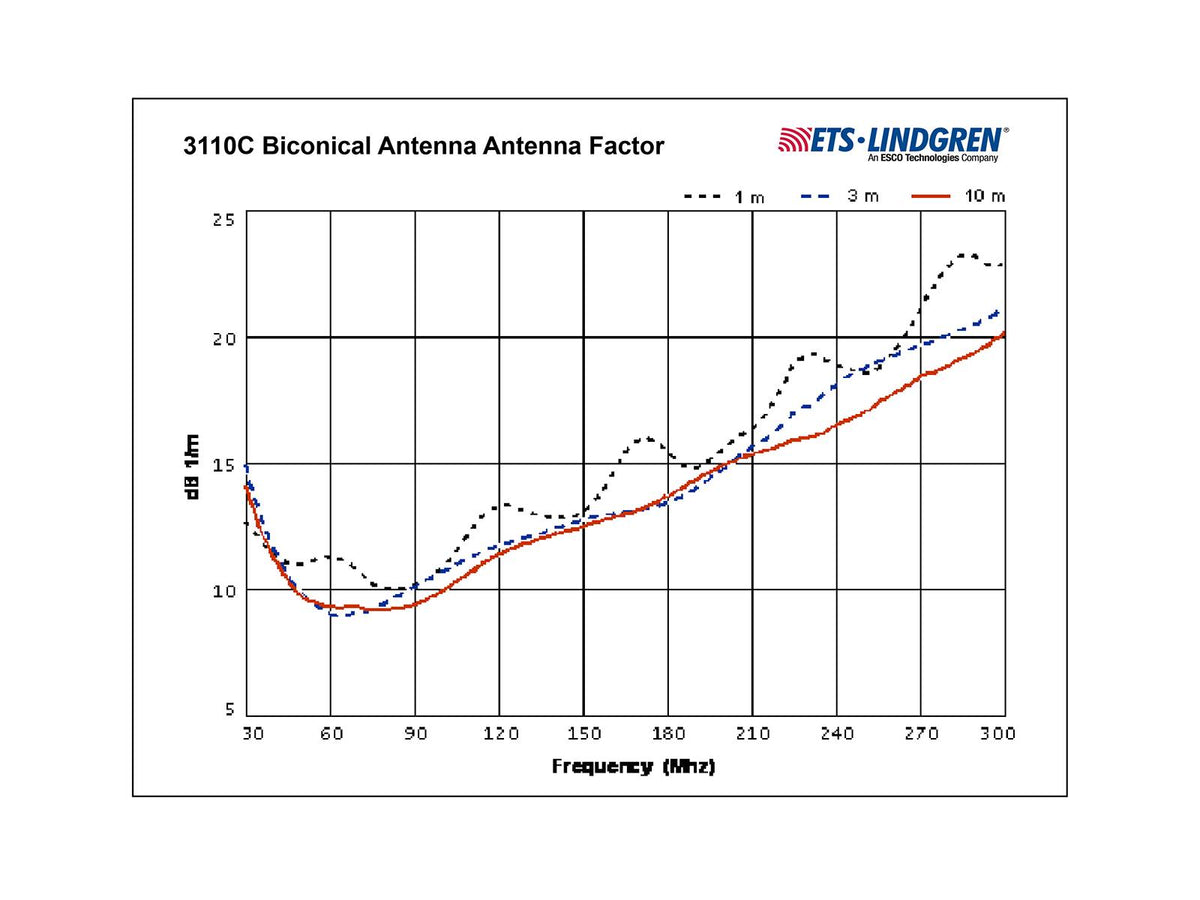

3110C Biconical Antenna — The 3110C Biconical Antenna combines several unique features to achieve high levels of performance: the balun, the feedline, and the elemental cage. Frequency range: 30 MHz to 300 MHz.

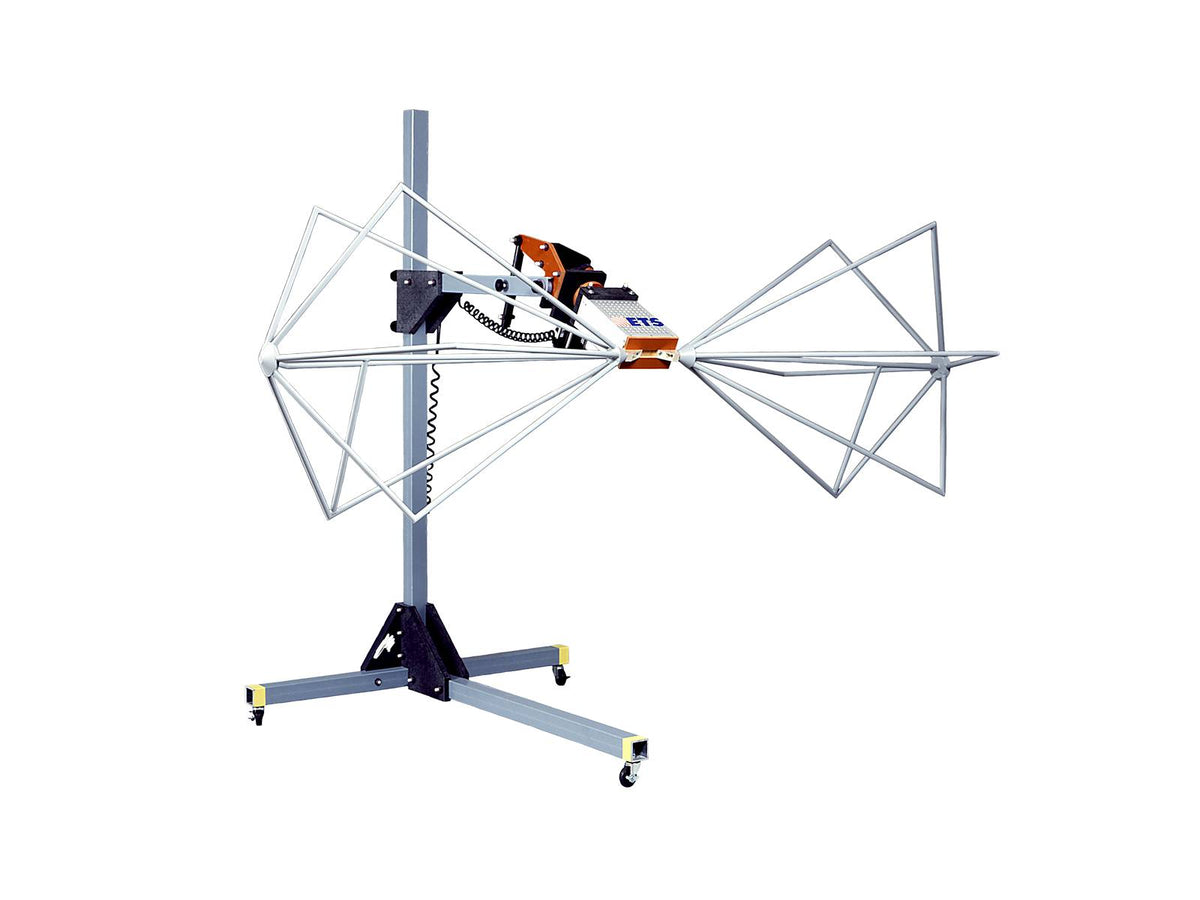

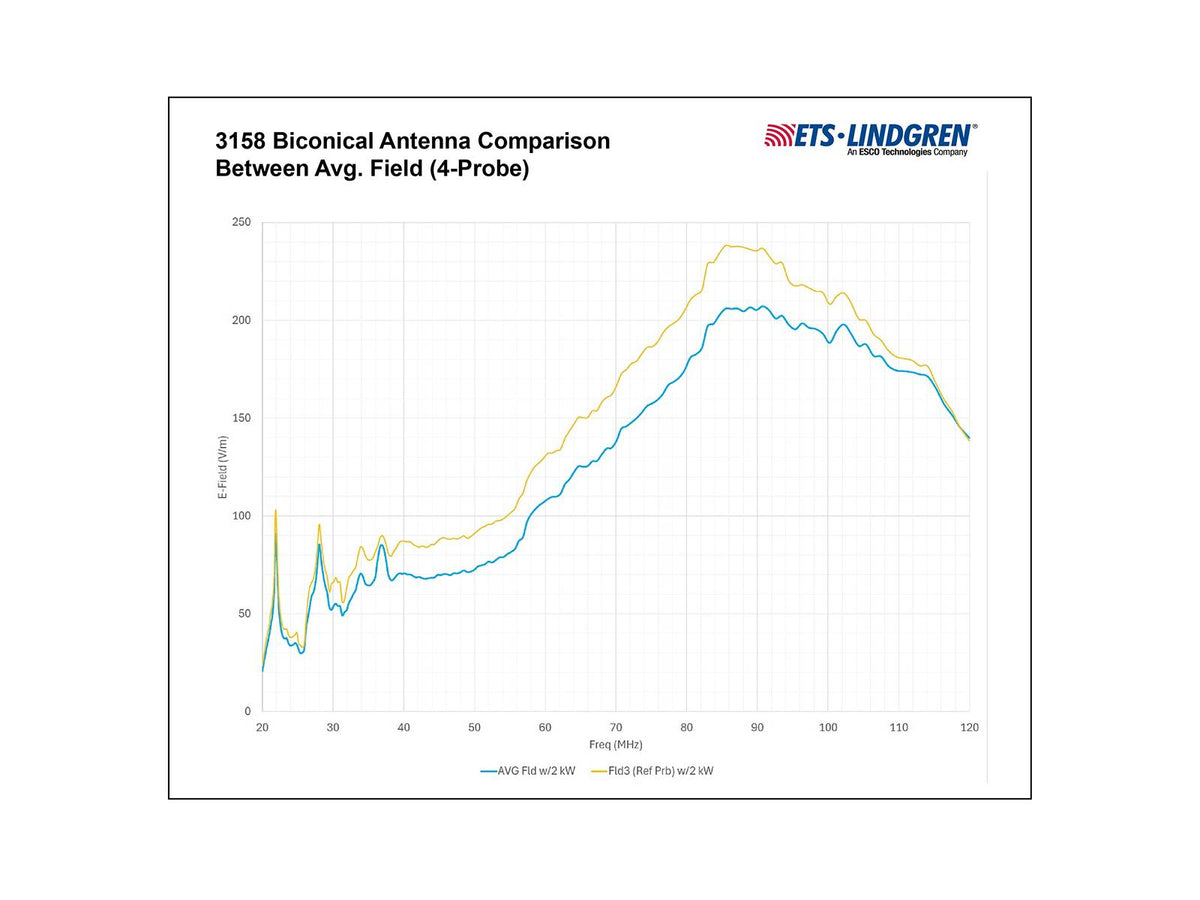

3158 Biconical Antenna — The Model 3158 Biconical Antenna is a high power biconical designed for high level immunity. Frequency range: 20 MHz to 120 MHz.

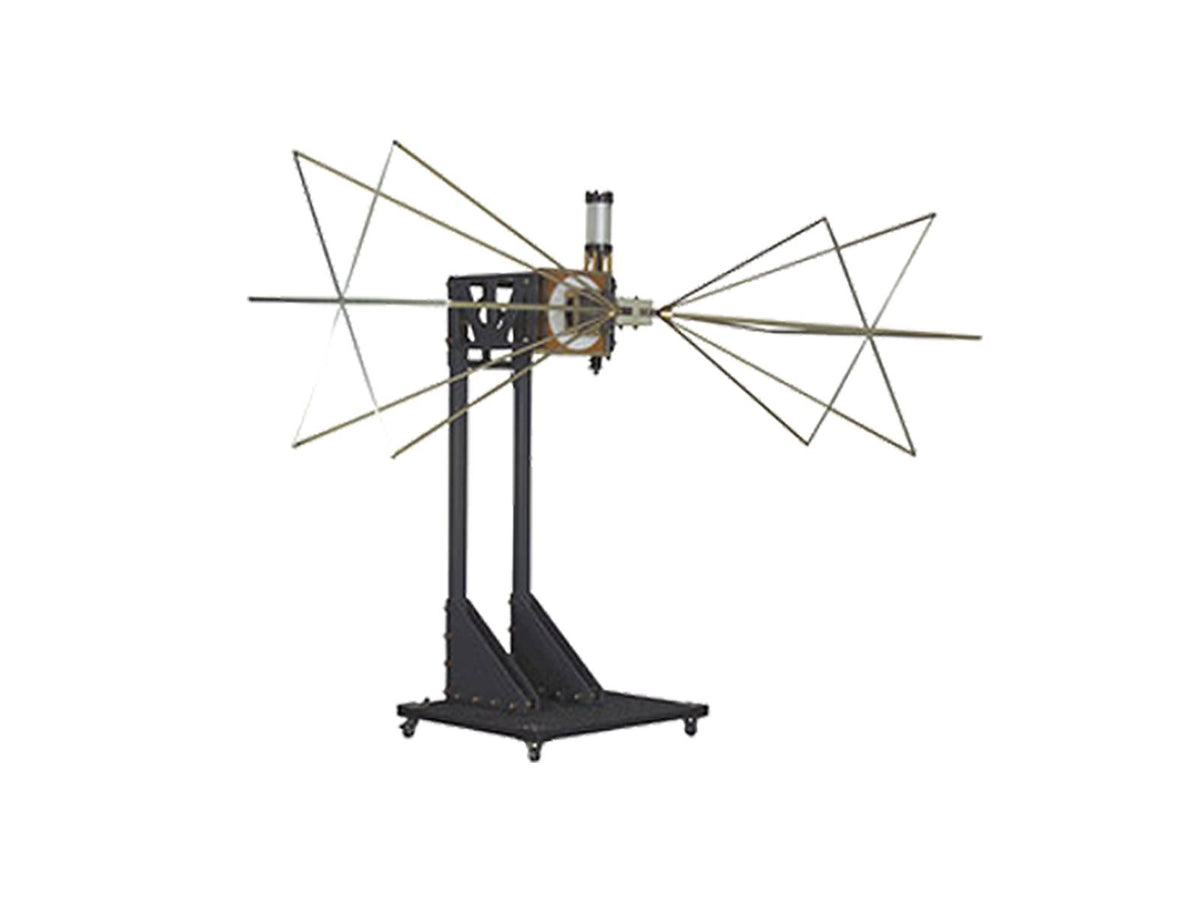

3159C Biconical Antenna — The Model 3159C Biconical Antenna is a broadband, linearly-polarized biconical antenna. Frequency range: 30 MHz to 100 MHz.

Key Features

3104D: Compact Size for Use in Limited Space; Quality Construction for Trouble-Free Service; Unique Elemental Design Improves Performance; Peak Power Handling Capability Up to 100 W
3109: Peak Power Handling Capability: up to 2 kW; Unique Elemental Design Improves Performance; Compact Size for Use in Limited Space; Improved Balun Design for Increased Efficiency; Quality Construction for Trouble-Free Service
3110C: Compact Size for Use in Limited Space; Unique Elemental Design Improves Performance; Improved Balun Design for Increased Efficiency; Flexible Mounting; Excellent RF Symmetry
3158: Power Handling: Up to 5 kW; Rugged Fabrication with Powder-coated Elements; Elements Can Be Removed for Transportation and Storage; 7/16 DIN Connector Stand
3159C: Biconical Elements (2 each); High Power Balun Handles Up to 15 kW RF Input Power; Tilt-angle and Polarization are Easily Adjustable (Optional Pedestal); Mounted on Wheeled Base for Easy Mobility (Optional Pedestal)

Frequency range: 20MHz-300MHz

Official product pages: 3104D | 3109 | 3110C | 3158 | 3159C
