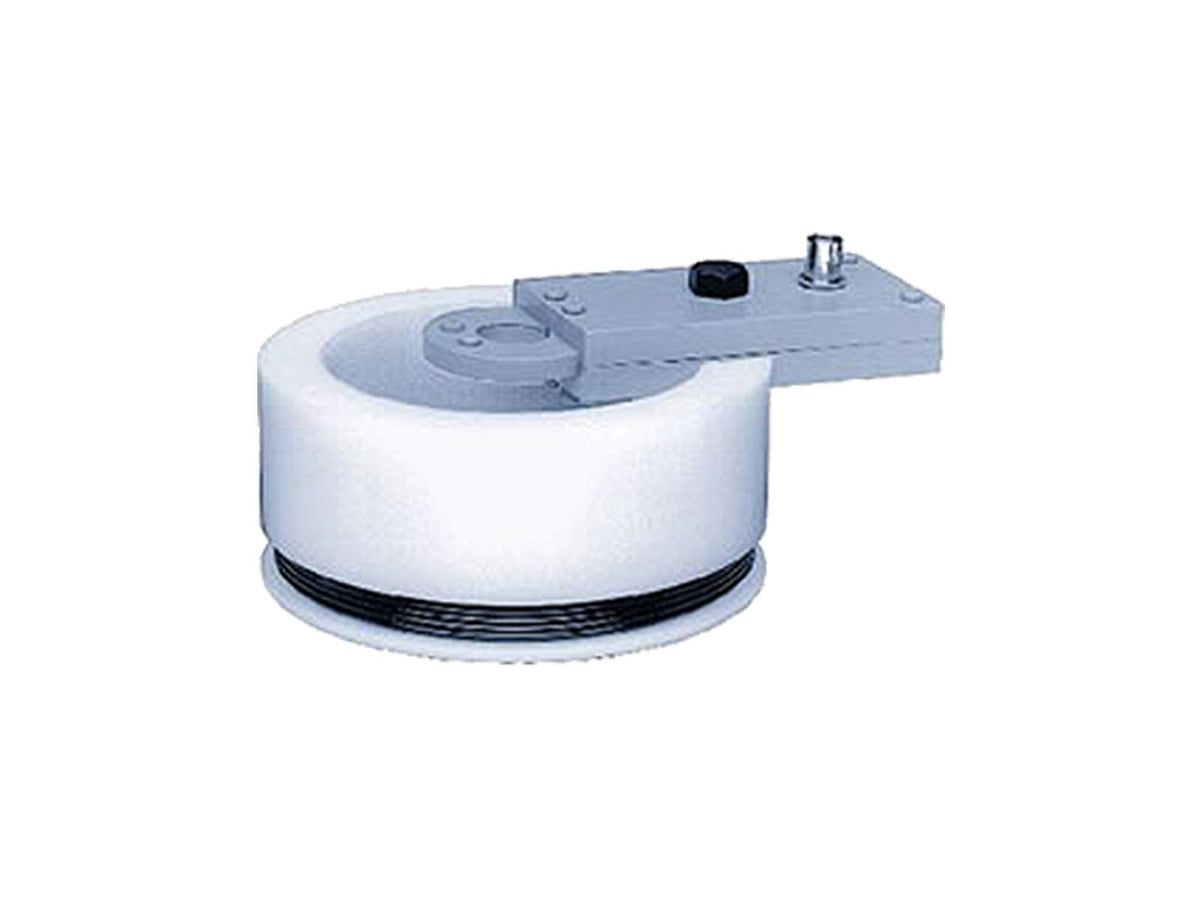

7606B Shielded Sensing Loop Coil Antenna

Product Features

Frequency range: 30 Hz – 100 kHz
Ideal for MIL-STD 461G, Method RS101
Electrostatically-Shielded 4 cm Sensing Loop
Used to Calibrate the 7605 Radiating Loop
BNC Connector
Official ETS-Lindgren product
Enquire for quotation and configuration

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

7606B Shielded Sensing Loop Coil Antenna

The Model 7606B Sensing Loop is precision-built to the exact specifications as described in MIL-STD 461G for Method RS101. It is a 4 cm diameter, electrostatically-shielded loop antenna which has 51 turns of 7-strand AWG-41 Litz wire.

The model 7606B is used together with the Model 7605 Radiating Loop to calibrate the model 7605 and the other instrumentation used in the test. A table containing the conversion factors for the model 7606B can be found in the manual.
