3167 TEM Horn Antenna

Product Features

  • Frequency range: 3 GHz – 6 GHz
  • Generates Homogenous Fields for Immunity Testing
  • Close Proximity Immunity Testing
  • IEC/EN 61000-4-39
  • VSWR: 2:1
  • Maximum Continuous Power: 250 W
  • Official ETS-Lindgren product
  • Enquire for quotation and configuration
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

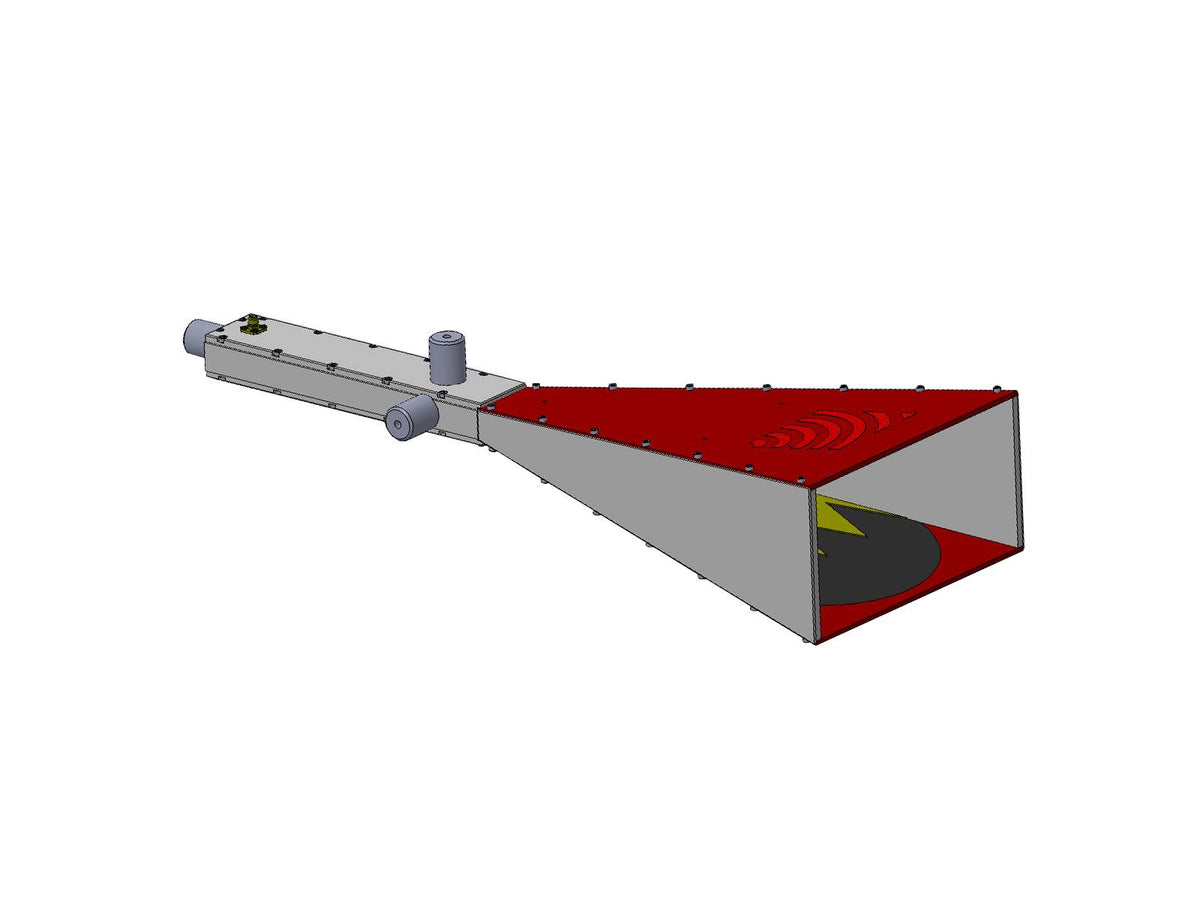

3167 TEM Horn Antenna

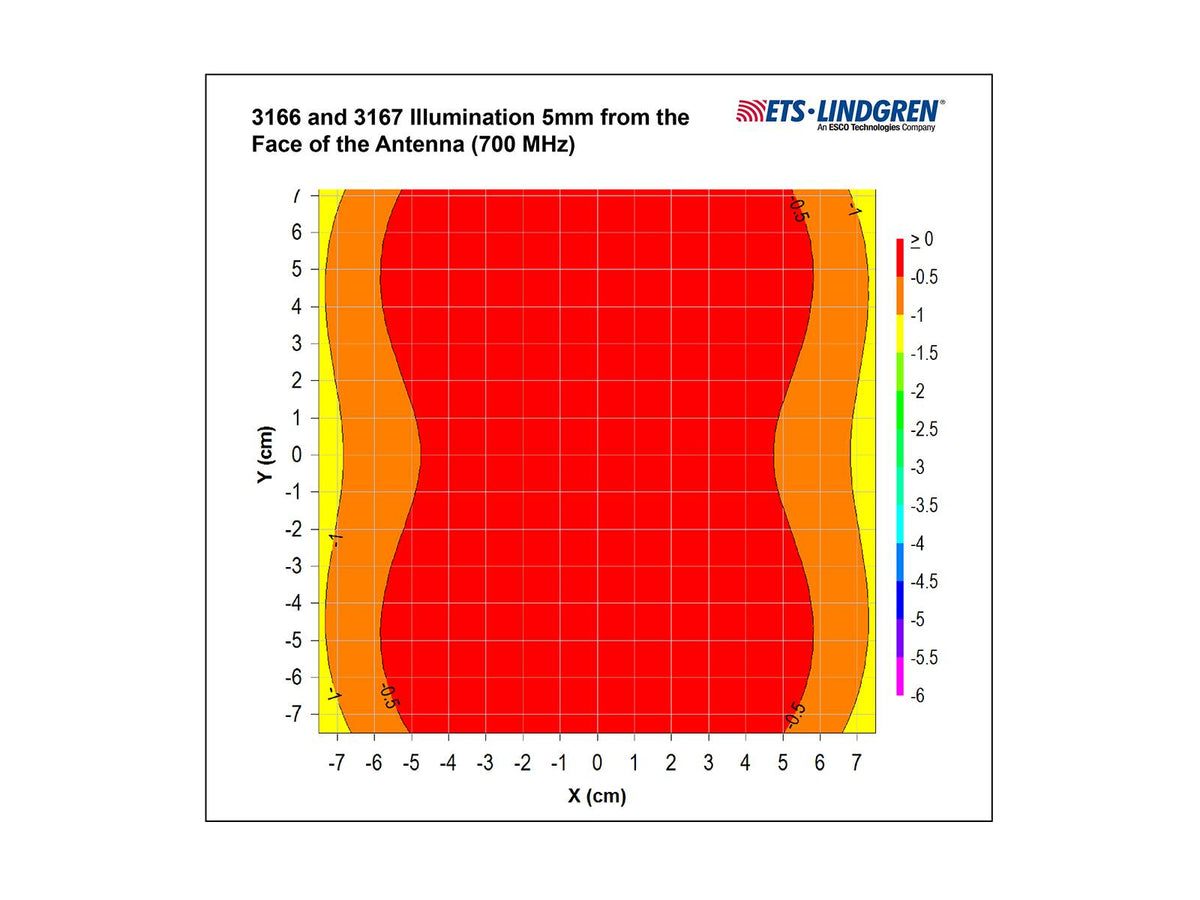

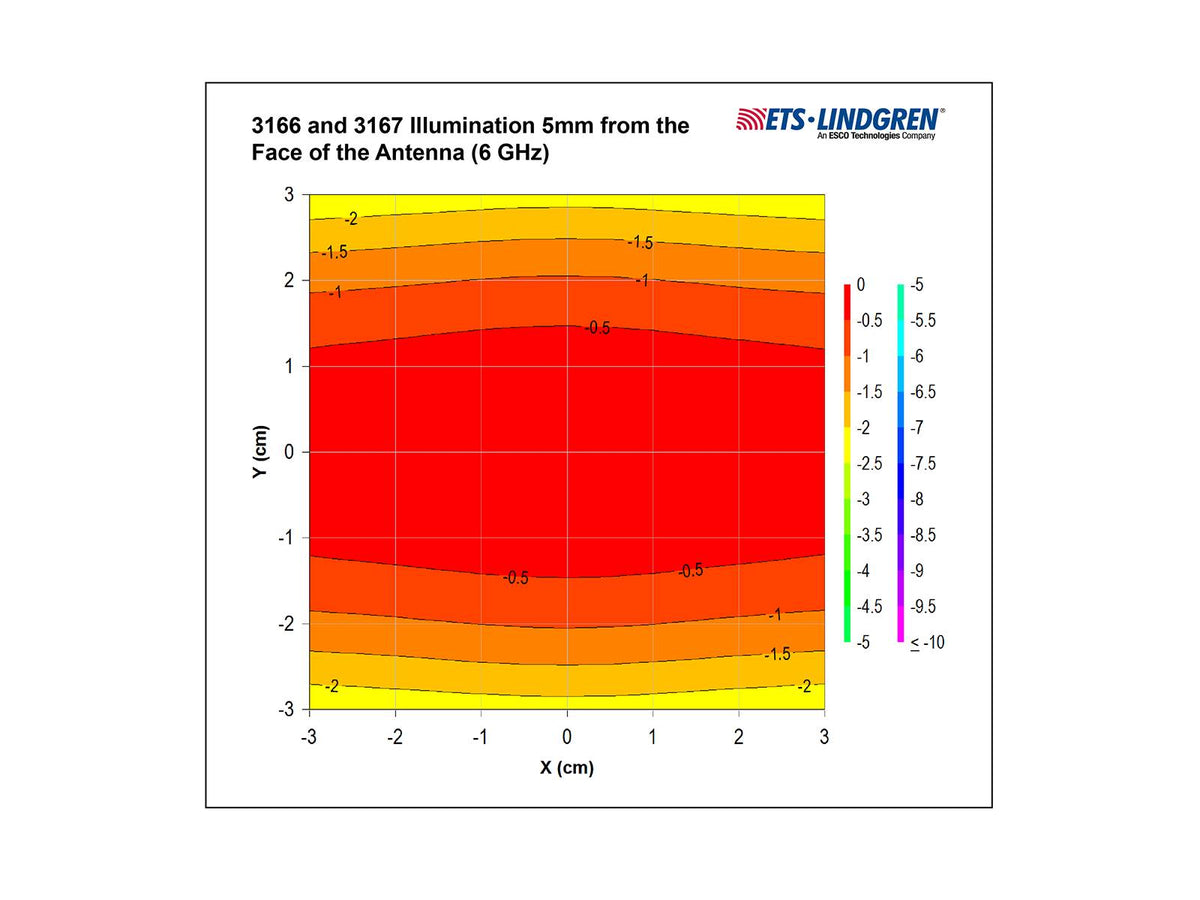

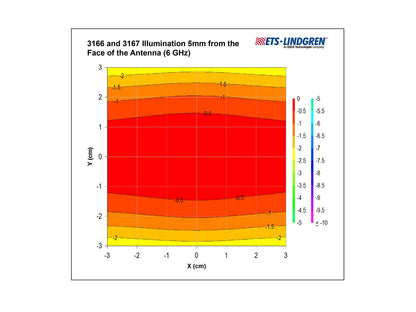

The Model 3166 and 3167 TEM Horn Antennas generate homogenous fields in the frequency range 380 MHz to 6 GHz specifically for immunity testing in close proximity as per the IEC/EN 61000-4-39 standard.

The 3167 model operates from 3 GHz to 6 GHz with less than 2:1 VSWR. Maximum continuous power is 250 W via an N-type female connector.

Key Features

  • Frequency Range: 3 GHz – 6 GHz
  • Generates Homogenous Fields for Immunity Testing
  • Close Proximity Immunity Testing
  • IEC/EN 61000-4-39
  • VSWR: 2:1
  • Maximum Continuous Power: 250 W
  • Connector: N Type, Female
  • Dimensions: 5.7 × 17.6 × 3.2 cm, approx. 0.2 kg
