3164-11 Open Boundary Quad-Ridged Horn Antenna

Product Features

Frequency range: 1 GHz – 18 GHz
Flat Gain for Upper 80% of Range
Dual Linearly Polarized Compact Design
Flexible Mounting Schemes
Flange for Wall Mounting
Bracket for Tripod Mounting
Official ETS-Lindgren product
Enquire for quotation and configuration

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

3164-11 Open Boundary Quad-Ridged Horn Antenna

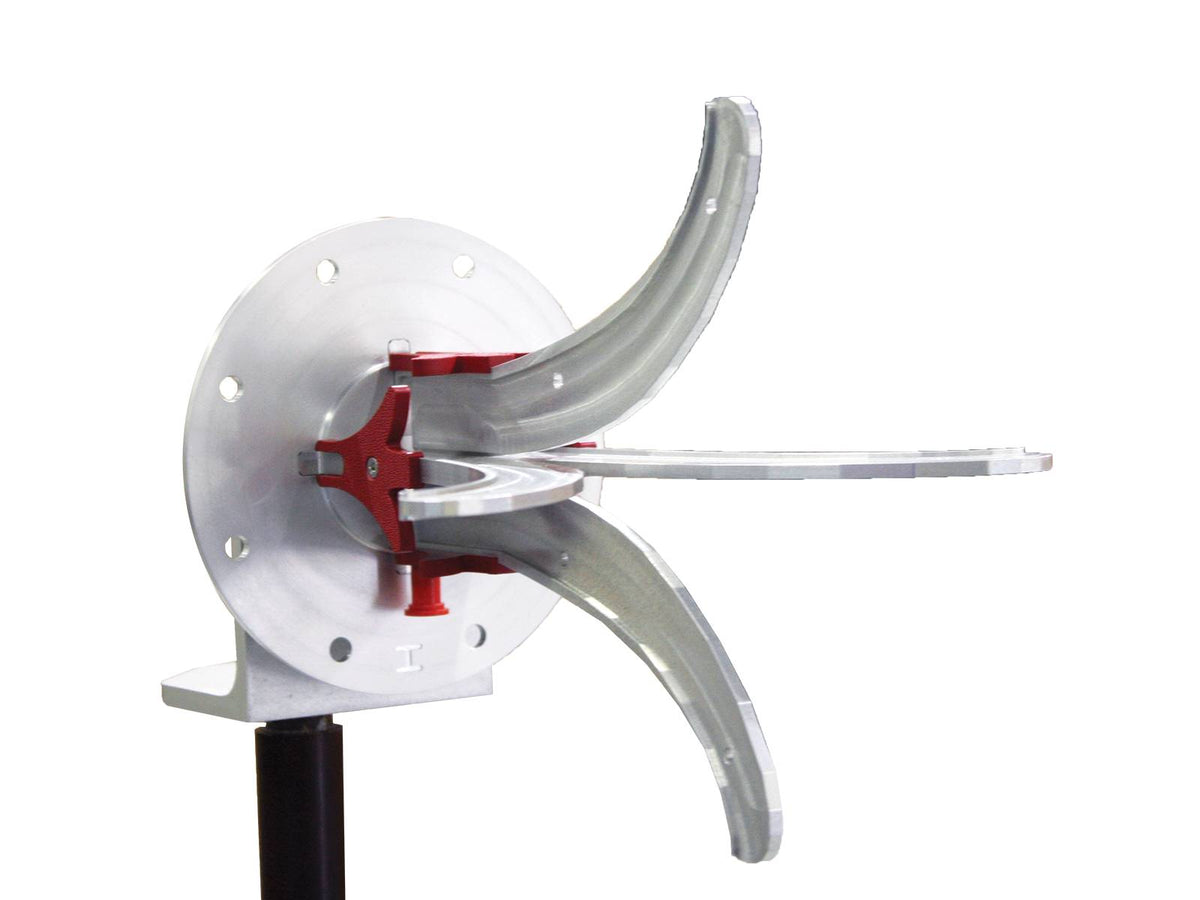

Model 3164-11 Open Boundary Quad-ridged Horn is the latest in a series of quad-ridged horns from ETS‑Lindgren. The open boundary design with its absence of side plates makes this antenna unique in both appearance and performance. Numerically modeled, the Model 3164-11 is a super open boundary quad-ridged horn where the feed cavity is not enclosed. This gives wider frequency range and reduces the weight of the horn.

The 3164-11 antenna has a range that covers 1 GHz to 18 GHz, making it ideal for antenna measurement applications and as an EMC antenna for measuring emissions above 1 GHz.
