3161-01 Octave Horn Antenna

Product Features

Frequency range: 1 GHz – 2 GHz
Constant Antenna Factor Over Frequency
Complete with Feed, Waveguide, Mount
Increased Power Dissipation
Optimal Beam Width
Low VSWR
Official ETS-Lindgren product
Enquire for quotation and configuration

Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

3161-01 Octave Horn Antenna

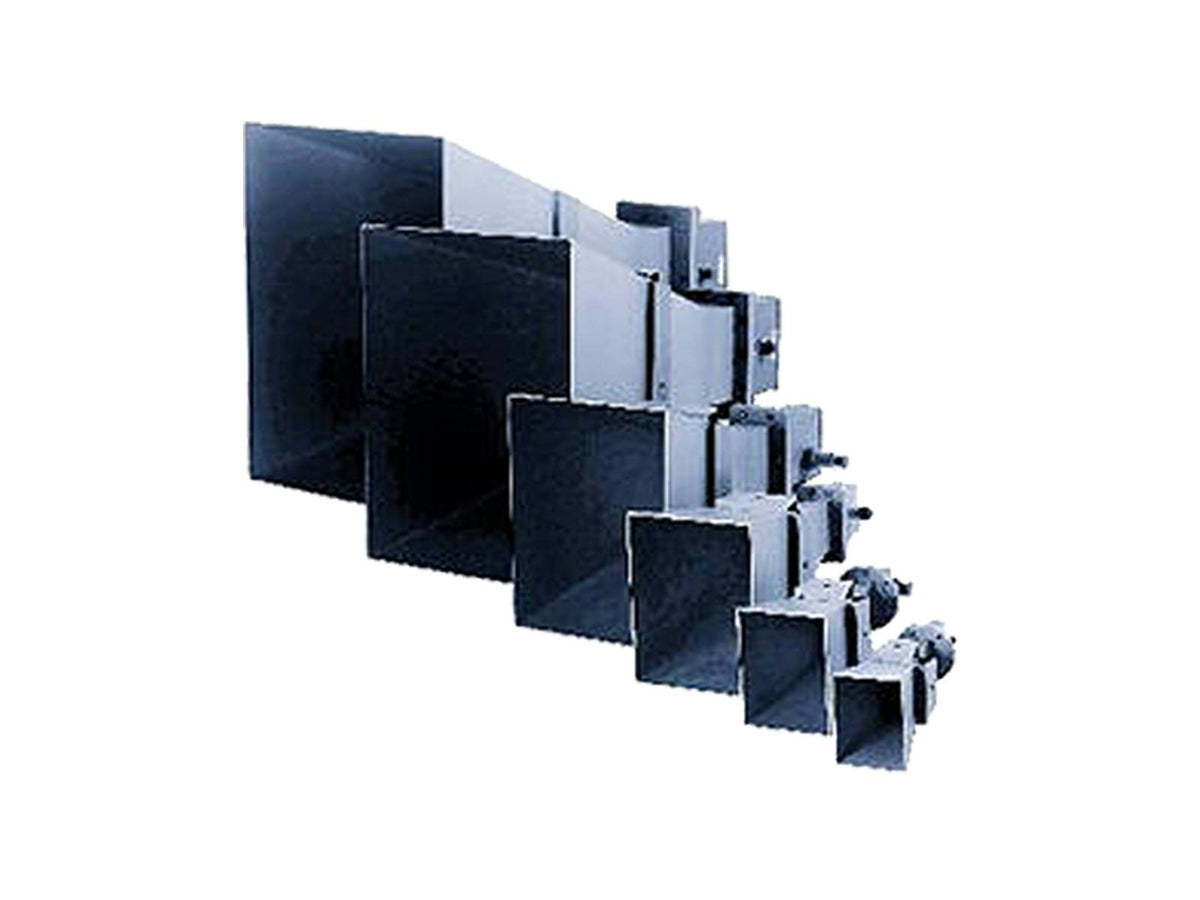

The Model 3161 Octave Horn Antenna Series are lineraly polarized, have medium gain, optimum half power beam width (equal in both horizontal and vertical planes), low VSWR, and cover a bandwidth of 1 GHz to 8 GHz.

Model 3161-01 covers 1 GHz – 2 GHz (WR-650 waveguide, Type N female connector), with a typical gain of 16.3 dBi, antenna factor of 16.9 dB(1/m), maximum continuous power of 550 W and typical field strength of 700 V/m.
