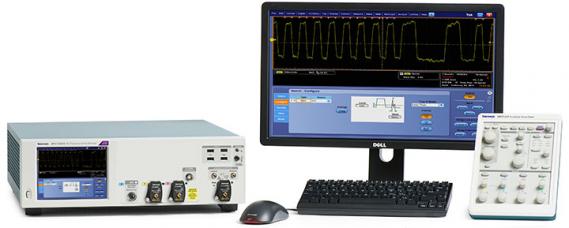

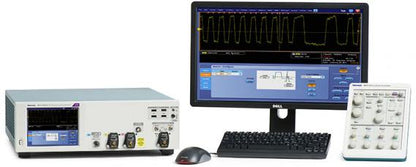

DPO70000SX ATI

  • Low noise, 70 GHz real time signal capture using patented
    ATI architecture
  • Compact 5 ¼" (3U) instrument package for the most versatile
    multi-channel systems

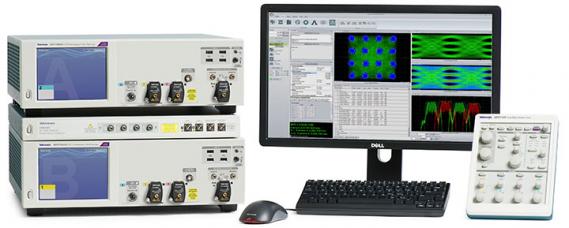

  • Precise, scalable performance using UltraSync multi-unit time
    synchronization bus
  • Highest trigger performance with >25 GHz Edge trigger
    bandwidth, unique Envelope trigger
  • 14.1 Gbps hardware serial trigger - Assures triggering on the
    first instance of a specified 8b/10b, 64b/66b, or generic NRZ
    pattern to allow isolation of pattern-dependent effects
  • Bit error detector - Implemented within the trigger system, this
    feature provides simple bit error measurement against a
    defined pattern file, with no missed bits

Bandwidth
Channels

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

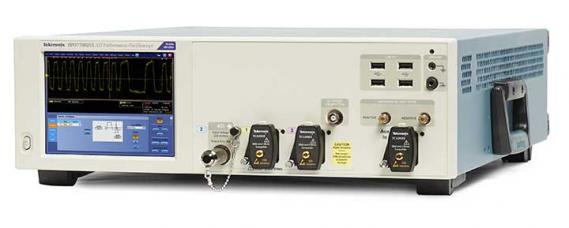

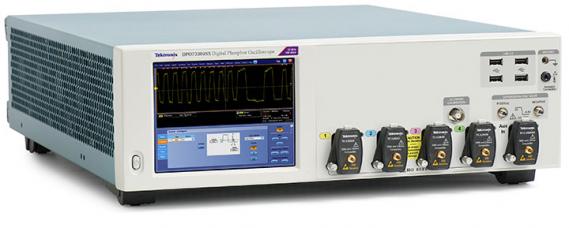

DPO70000SX ATI Performance Oscilloscope

DPO70000SX ATI Performance Oscilloscopes deliver the industry’s most accurate capture of high-speed signal behavior to verify, validate and characterize your next generation designs. Capture up to 70 GHz signals with the lowest noise and highest fidelity, ensuring the most accurate measurements of your signal’s true characteristics.
