CT6 6A 2 GHz

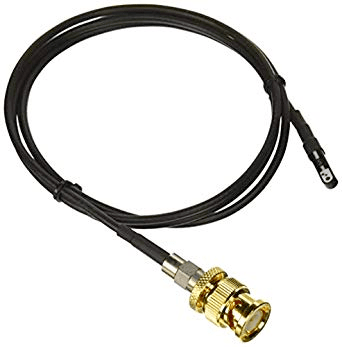

CT6 Current Probe

The CT6 is the newest addition to the Tektronix portfolio of highfrequency current probes. It is designed to meet the needs of
high-speed circuit design and test applications which require ultrahigh
bandwidth, low inductance, and extremely small form factor.
The CT6 provides up to 2 GHz bandwidth when used with highbandwidth oscilloscopes such as the Tektronix TDS694C, TDS794D,
and TDS7000 Series oscilloscopes or with other compatible 50 Ω
input measuring instruments. Low inductance (<3 nH) assures that the
loading effect of the CT6 on the circuit-under-test will be negligible,
which is especially important for today's low-amplitude, high-speed
circuit designs such as disk drive read/write preamplifiers. The probe is
a closed-circuit design which will accept uninsulated wire sized up to
20 gauge. This product is exempt from CE mark by virtue of its 30 V
voltage limit.

Features and Benefits

• High Bandwidth
• Ultra-low Inductance
• Very Small Form Factor
• Characterize Current Waveforms up to <200 ps Rise Times
• Very Low Loading of Circuit Under Test
• Fits Into Dense, Closely-spaced Circuit Designs
