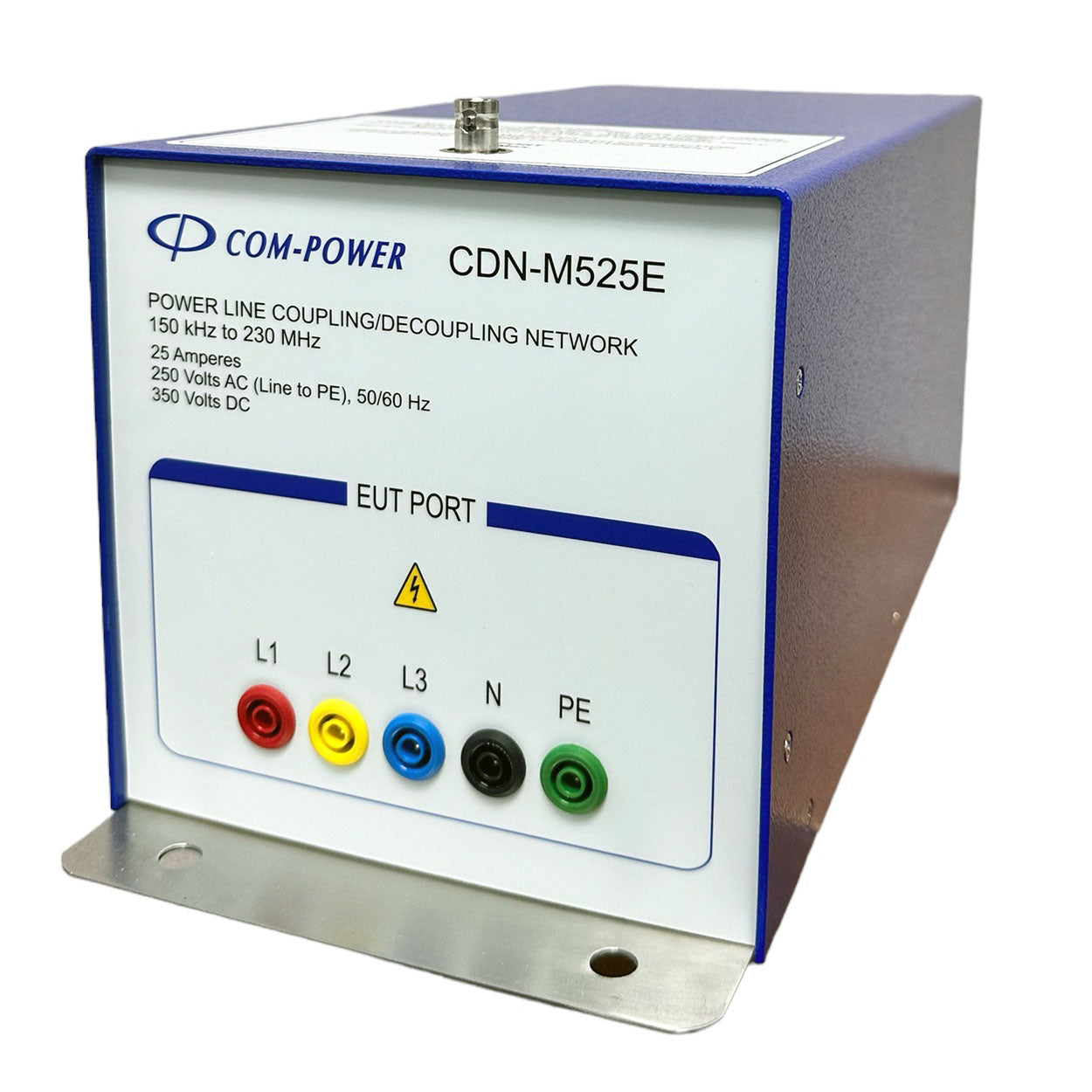

CDN-M525E

Five-line 25 A three-phase power CDN, 150 kHz–230 MHz — the full three-phase IEC 61000-4-6 unit covering 3L + N + PE configurations standard in European industrial mains.

4 mm shrouded banana sockets, 250 VAC / 350 VDC rating — complete five-conductor support for 230 / 400 VAC TN-S service used widely in EU industrial installations.

150 Ω common-mode impedance, 9.5 dB VDF, 50 Ω BNC RF port — per-line injection across 5 conductors with full IEC 61000-4-6 profile compliance.

Industrial VFDs and motor controllers with neutral — three-phase variable frequency drives in TN-S installations requiring per-conductor injection on all 5 lines.

UPS systems and three-phase power conditioning — data-center UPS, three-phase line-interactive systems, and power-quality equipment requiring 3L+N+PE testing.

Industrial automation cabinets and PLCs on 3-phase — complete factory-floor electrical cabinets, drive panels, and SCADA equipment fed from 5-wire industrial mains.

Commercial building electrical systems and BMS controllers — building management systems, large UPS, and commercial lighting controllers on TN-S three-phase service.

NIST-traceable individual calibration with three-year warranty — ISO/IEC 17025 accredited calibration optional; ADA-515-X 150 Ω / 50 Ω calibration adapters available separately for IEC 61000-4-6 test-level setting; integrates into Com-Power Conducted Immunity Test Systems.
