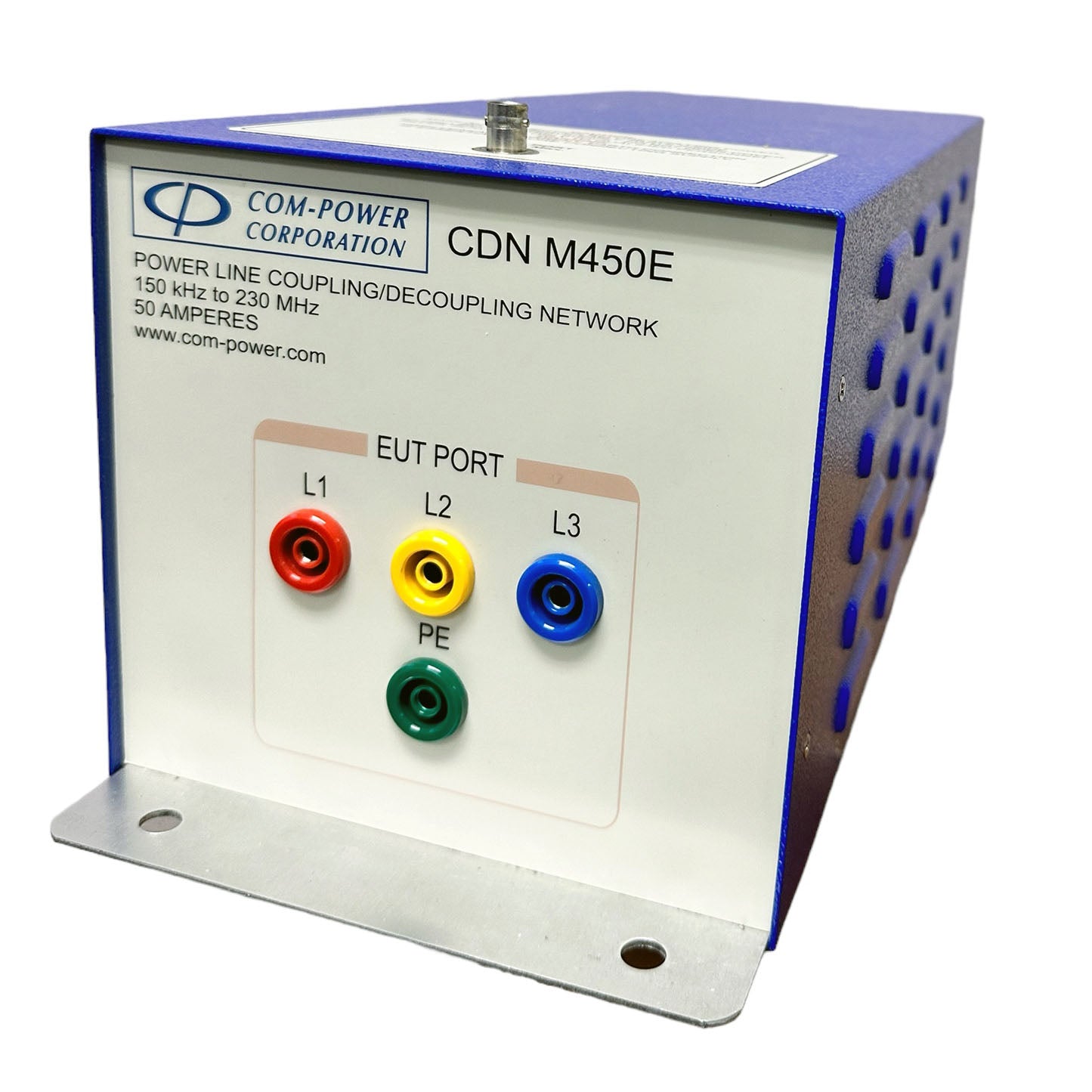

CDN-M450E

Four-line 50 A three-phase power CDN, 150 kHz–230 MHz — IEC 61000-4-6 conducted immunity for high-power three-phase products without separate neutral or with 2L+N+PE configuration.

4 mm shrouded banana sockets, 250 VAC / 350 VDC rating — doubled current capacity over the CDN-M425E for higher-power industrial three-phase loads.

150 Ω common-mode impedance, 9.5 dB VDF, 50 Ω BNC RF port — per-line injection across 4 conductors at up to 50 A per line with full IEC 61000-4-6 compliance.

Three-phase EV DC fast-charging stations (input side) — high-power AC mains input on DCFC and supercharger equipment up to 50 A per phase.

Three-phase industrial motor drives 15–40 kW — mid-power VFDs, machine-tool spindle drives, and process-pump controllers without neutral conductor.

Commercial kitchen and laundry equipment — large commercial ovens, industrial dishwashers, and commercial laundry machines on three-phase service.

Three-phase battery energy storage systems (BESS) input side — grid-tied storage inverters and battery cabinet electronics on 3-phase mains input.

NIST-traceable individual calibration with three-year warranty — ISO/IEC 17025 accredited calibration optional; ADA-515-X 150 Ω / 50 Ω calibration adapters available separately for IEC 61000-4-6 test-level setting; integrates into Com-Power Conducted Immunity Test Systems.
