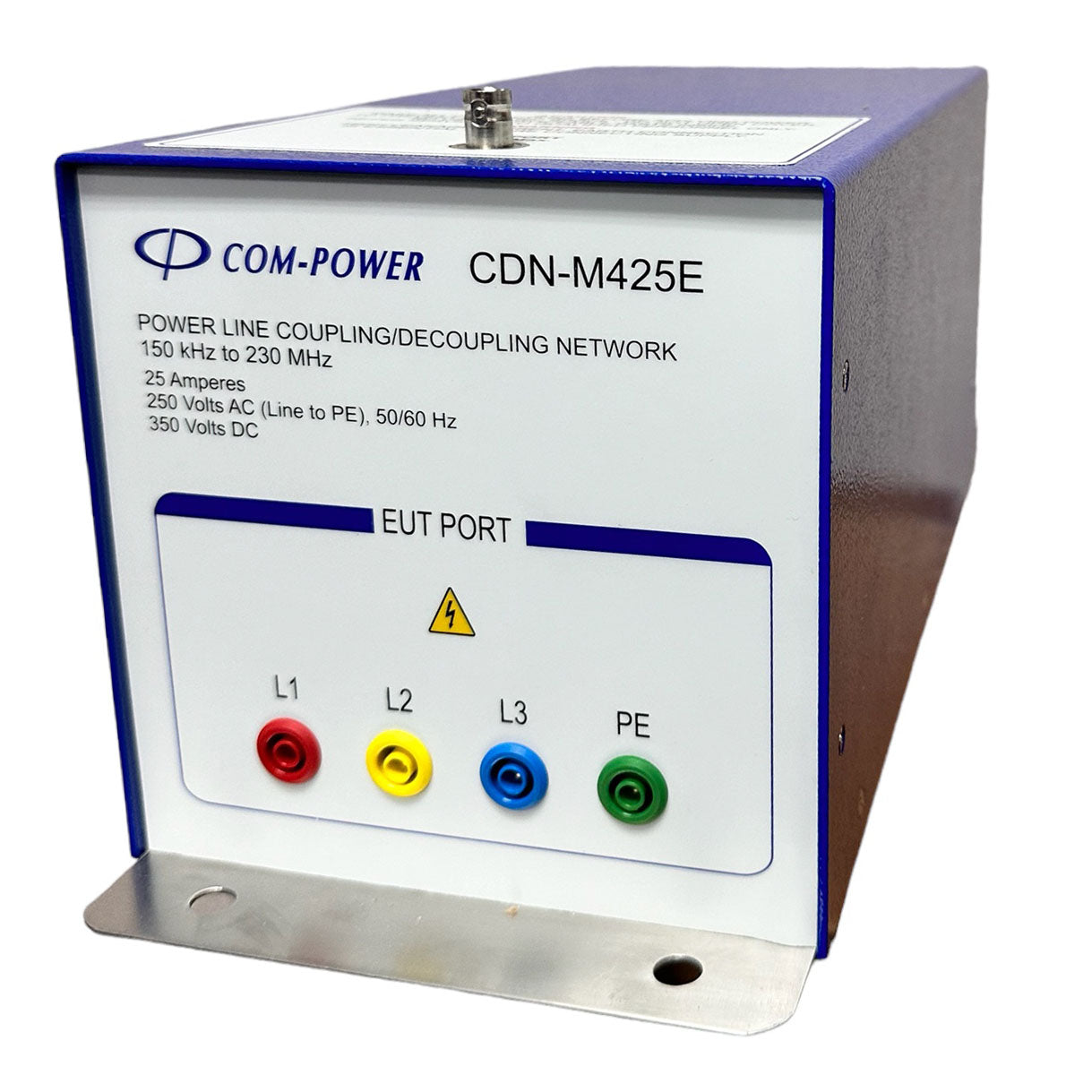

CDN-M425E

▸Four-line 25 A power CDN, 150 kHz–230 MHz — IEC 61000-4-6 conducted immunity for three-phase mains products without separate neutral (3L + PE) or with combined (2L + N + PE).

4 mm shrouded banana sockets, 250 VAC / 350 VDC rating — supports common European 230 / 400 VAC three-phase service configurations.

150 Ω common-mode impedance, 9.5 dB VDF, 50 Ω BNC RF port — per-line injection across 4 conductors with full IEC 61000-4-6 profile compliance.

Three-phase industrial machinery without neutral — 3L+PE motor drives, machine tools, CNC equipment, and industrial robots on delta-connected supplies.

Three-phase commercial HVAC and refrigeration — rooftop air handlers, walk-in coolers, and packaged HVAC units operating on 3-phase service.

Two-phase + neutral lighting circuits in commercial buildings — large lighting installations, LED arrays, and architectural lighting controllers on 2L+N+PE.

Three-phase variable frequency drives (VFDs) without neutral — pump drives, fan drives, and conveyor systems on industrial 3-phase service.

NIST-traceable individual calibration with three-year warranty — ISO/IEC 17025 accredited calibration optional; ADA-515-X 150 Ω / 50 Ω calibration adapters available separately for IEC 61000-4-6 test-level setting; integrates into Com-Power Conducted Immunity Test Systems.
