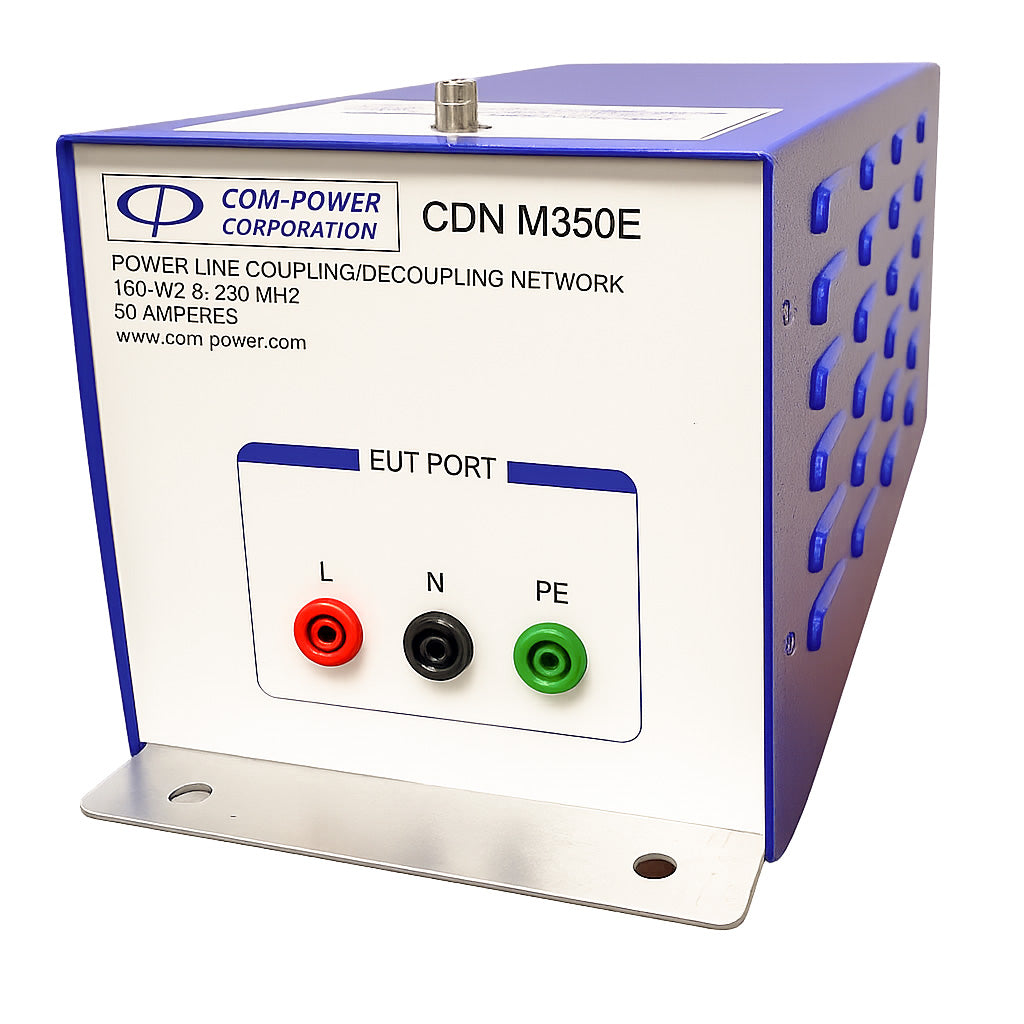

CDN-M350E

Three-line 50 A single-phase power CDN, 150 kHz–230 MHz — IEC 61000-4-6 conducted immunity for high-current single-phase mains products (L + N + PE) up to 50 A.

4 mm shrouded banana sockets rated 250 VAC / 350 VDC — doubled current capacity over the CDN-M325E for higher-power single-phase loads.

150 Ω common-mode impedance, 9.5 dB VDF, 50 Ω BNC RF port — full IEC 61000-4-6 coupling profile with 40 V_rms RF input rating.

EV charging equipment (Level 1 / Level 2 single-phase) — AC charging stations and EVSE up to 240 VAC / 50 A on grounded single-phase service per UL 2231 and IEC 61851 supporting immunity work.

Industrial heating and process equipment — resistive heaters, dryers, and process ovens with high single-phase current draw requiring IEC 61000-6-2 testing.

Commercial appliances and food-service equipment — commercial refrigeration, deep fryers, electric ranges, and dishwashers on 240 VAC / 30–50 A circuits.

HVAC compressors and high-current motor loads — air-conditioning condenser units, heat pumps, and large blower motors operating at high single-phase currents.

NIST-traceable individual calibration with three-year warranty — ISO/IEC 17025 accredited calibration optional; ADA-515-X 150 Ω / 50 Ω calibration adapters available separately for IEC 61000-4-6 test-level setting; integrates into Com-Power Conducted Immunity Test Systems.
