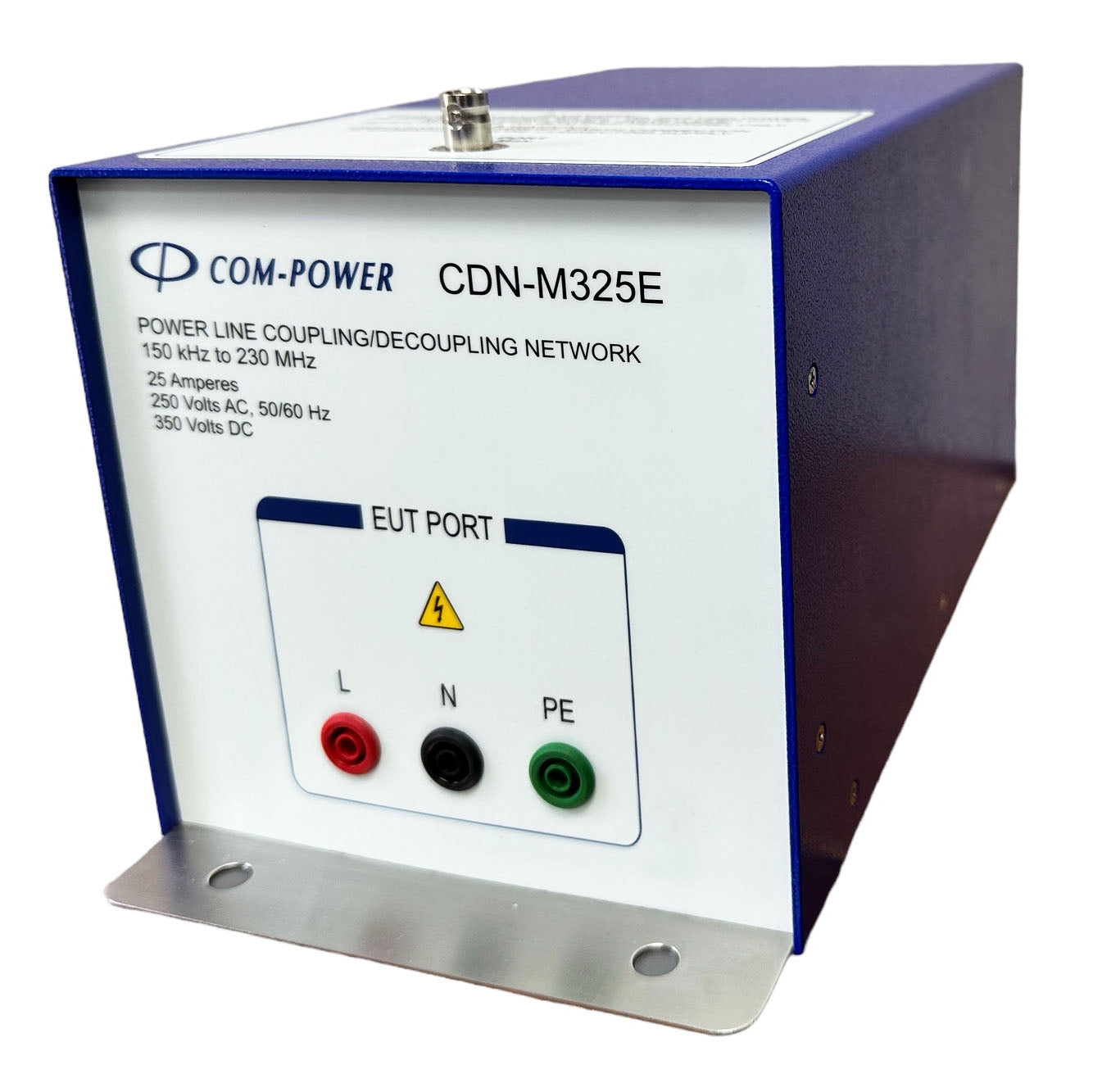

CDN-M325E

Three-line 25 A power CDN, 150 kHz–230 MHz — the standard IEC 61000-4-6 unit for single-phase AC mains products with grounded power cords (L + N + PE).

4 mm shrouded banana sockets, 250 VAC / 350 VDC rating — the most commonly purchased M-series CDN, covering the majority of single-phase commercial and industrial product lines.

150 Ω common-mode impedance, 9.5 dB VDF, 50 Ω BNC RF port — precise per-line injection per IEC 61000-4-6 with 40 V_rms RF input rating.

IT and multimedia equipment per IEC 61000-6-1/2 — computers, servers, network equipment, AV receivers, and consumer electronics with grounded mains cords.

Medical devices per IEC 60601-1-2 — patient monitors, infusion pumps, imaging-system electronics, and laboratory benchtop instruments requiring single-phase grounded mains immunity testing.

Industrial control equipment per IEC 61000-6-2 — PLCs, HMI panels, motor controllers, and process-control electronics on standard 120/230 VAC service.

Household appliances per IEC 61000-6-1 and EN 55014-2 — major appliances, kitchen appliances, HVAC controls, and smart-home equipment with 3-prong cords.

NIST-traceable individual calibration with three-year warranty — ISO/IEC 17025 accredited calibration optional; ADA-515-X 150 Ω / 50 Ω calibration adapters available separately for IEC 61000-4-6 test-level setting; integrates into Com-Power Conducted Immunity Test Systems.
