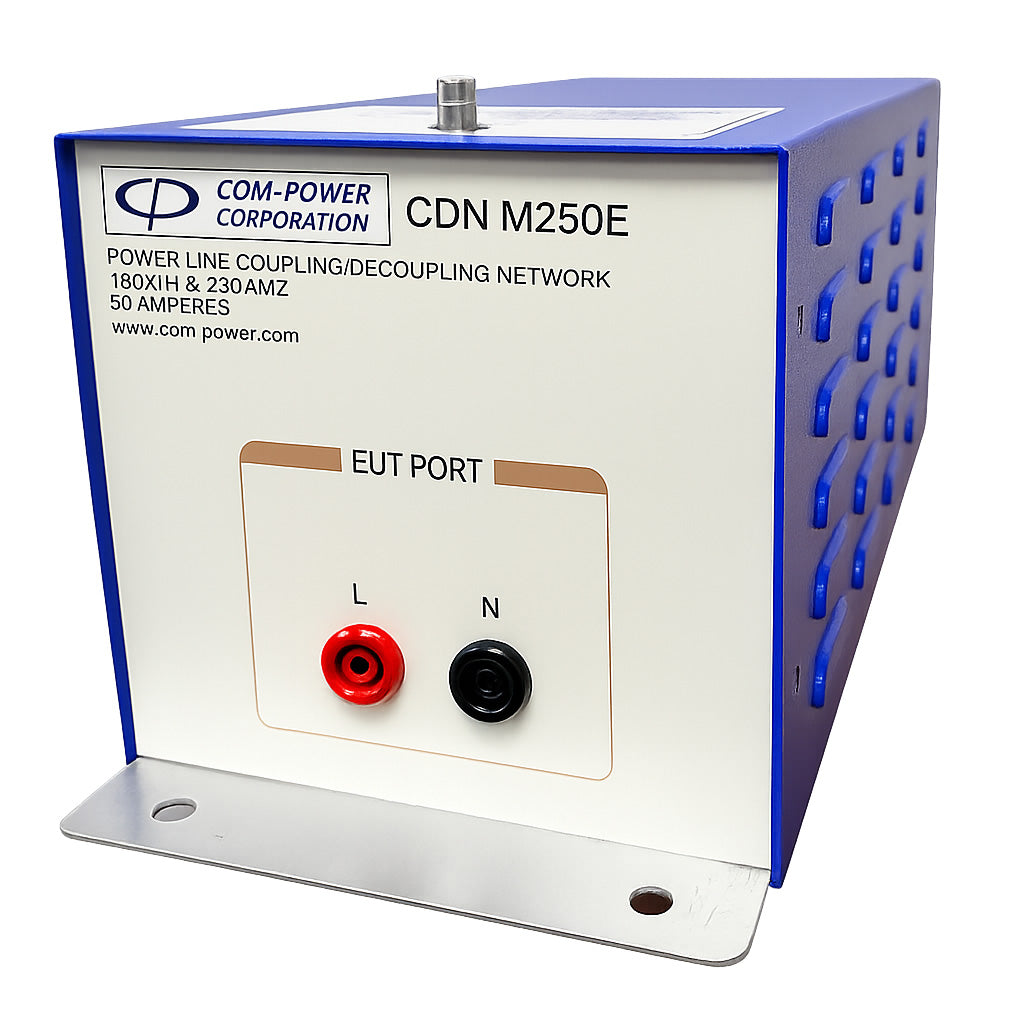

CDN-M250E

Two-line 50 A power CDN, 150 kHz–230 MHz — IEC 61000-4-6 conducted immunity for 2-wire DC or single-phase AC equipment drawing up to 50 A continuous current.

4 mm shrouded banana sockets rated 250 VAC / 350 VDC — doubled current capacity over the CDN-M225E without changing connector type or footprint.

150 Ω common-mode impedance, 9.5 dB VDF, 50 Ω BNC RF port — full IEC 61000-4-6 coupling profile with 40 V_rms RF input rating.

High-current DC industrial supplies — 48 VDC server rack distribution, telecom plant rectifiers, and forklift / AGV battery chargers needing 50 A test capability.

EV and e-mobility module-level testing — on-board chargers, traction inverter logic supplies, and high-power 24/48 VDC subsystems within electric vehicles.

Welding equipment and induction heating power inputs — 2-wire input stages drawing tens of amps requiring CISPR 11 / FCC Part 18 supporting immunity work.

Industrial DC motor drives and BLDC controllers — pump drives, conveyor controllers, and material-handling equipment up to 50 A DC bus current.

NIST-traceable individual calibration with three-year warranty — ISO/IEC 17025 accredited calibration optional; ADA-515-X 150 Ω / 50 Ω calibration adapters available separately for IEC 61000-4-6 test-level setting; integrates into Com-Power Conducted Immunity Test Systems.
