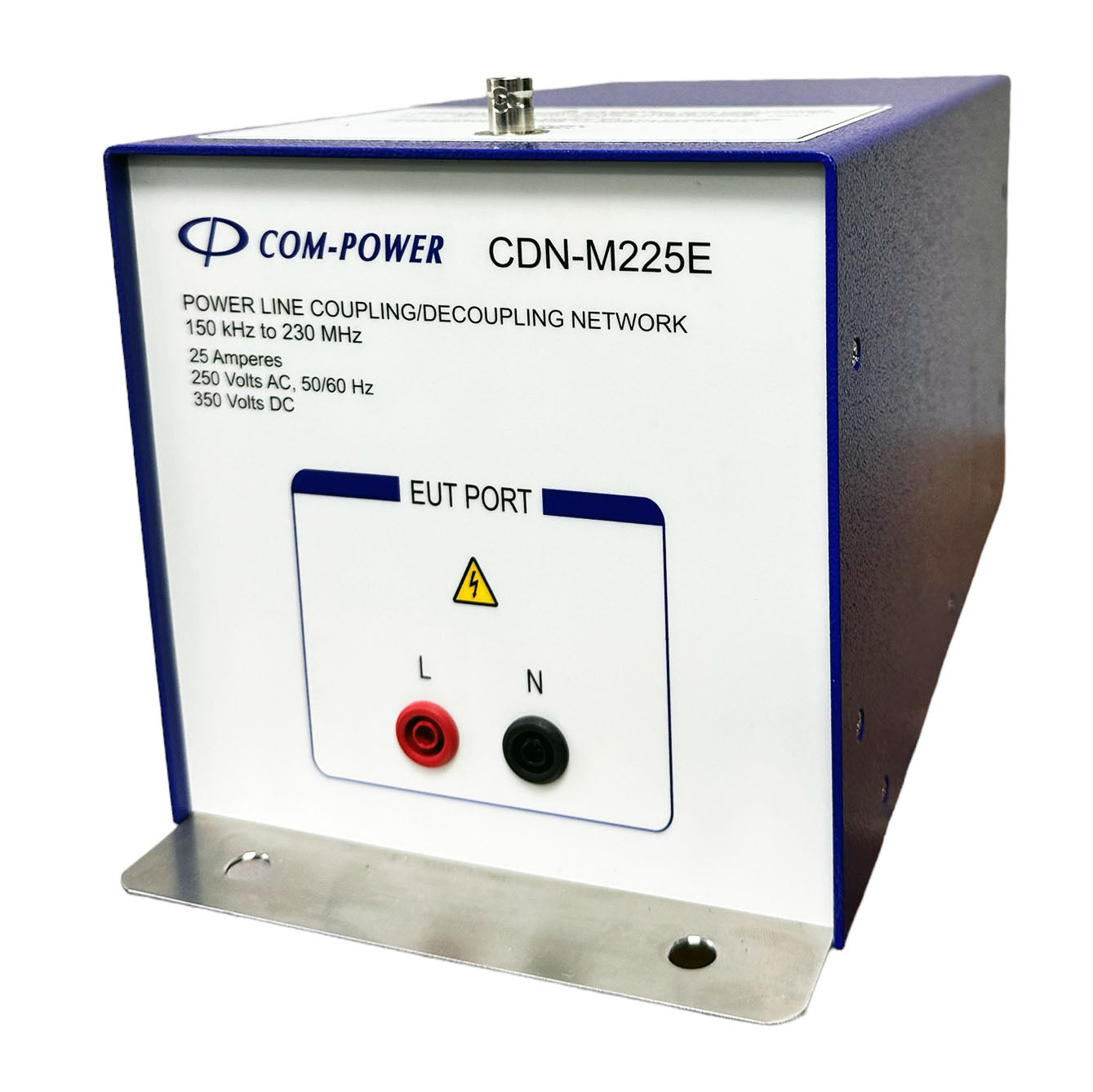

CDN-M225E

Two-line 25 A power CDN, 150 kHz–230 MHz — injects common-mode RF disturbance per IEC 61000-4-6 into 2-wire DC or 2-wire AC mains without ground (L+N).

4 mm shrouded banana sockets, 250 VAC / 350 VDC rating — supports both AC and DC supply configurations on the same unit.

150 Ω common-mode impedance, 9.5 dB VDF, 50 Ω BNC RF port — matches IEC 61000-4-6 profile with 40 V_rms max RF input headroom.

DC-powered industrial and IT equipment — servers, telecom rectifier outputs, DC-distribution backplanes, and 24/48 VDC industrial controllers.

Battery-powered and battery-backed devices — UPS-fed loads, energy-storage system electronics, and lead-acid / lithium DC systems requiring 2-wire injection.

Two-wire AC mains products without earth (Class II / double insulated) — small appliances, hand tools, and consumer electronics with figure-8 power cords.

Lighting drivers and LED power supplies — 2-wire AC mains lighting products requiring CISPR 15 / IEC 61000-4-6 conducted immunity per EN 55015 and EN 61547.

NIST-traceable individual calibration with three-year warranty — ISO/IEC 17025 accredited calibration optional; ADA-515-X 150 Ω / 50 Ω calibration adapters available separately for IEC 61000-4-6 test-level setting; integrates into Com-Power Conducted Immunity Test Systems.
