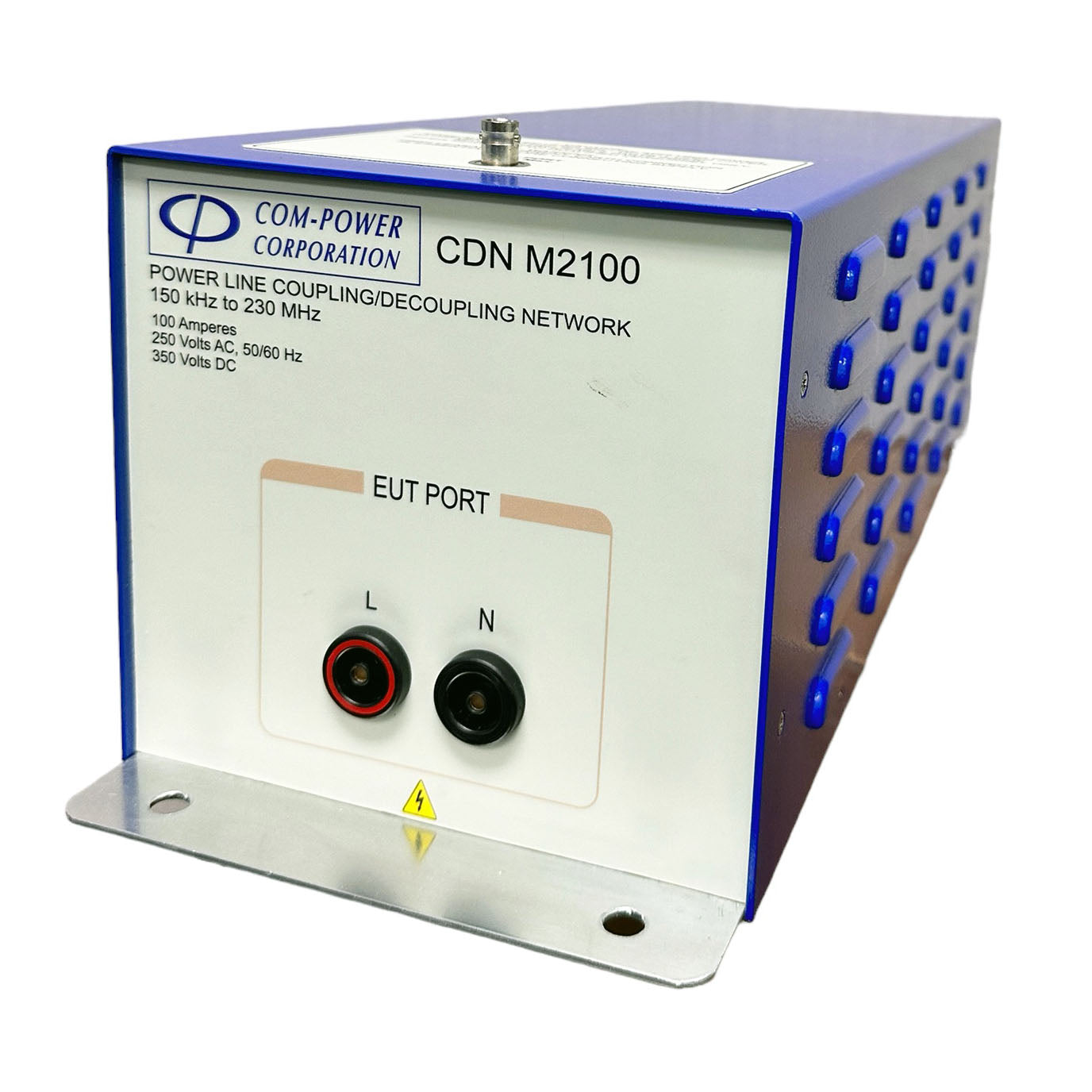

CDN-M2100 Coupling Decoupling Network for two-line power cable 150 kHz to 230 MHz

Two-line 100 A high-current power CDN, 150 kHz–230 MHz — the highest dual-line M-series rating, supporting 2-wire DC or single-phase AC at 100 A per IEC 61000-4-6.

5.2 mm banana sockets with shrouded sheath, 250 VAC / 350 VDC — heavy-duty connections for very-high-current 2-wire systems.

150 Ω common-mode impedance, 9.5 dB VDF, 50 Ω BNC RF port — standard IEC 61000-4-6 coupling profile maintained at 100 A continuous per line.

EV charging cable and DC fast-charge output testing — CCS / CHAdeMO DC-output stages and high-power battery charging cables drawing 100 A continuous DC.

Energy storage system DC bus testing — battery energy storage systems (BESS), grid-scale storage inverter DC inputs, and home backup systems with high DC current.

Industrial 2-wire 100 A DC systems — electroplating, electrolysis, and industrial DC process equipment with very high current draw on simple 2-wire architecture.

Heavy-duty AC mains products on 2-wire service — commercial induction-melting furnaces, large welders, and industrial heaters drawing up to 100 A on single-phase L+N service.

NIST-traceable individual calibration with three-year warranty — ISO/IEC 17025 accredited calibration optional; ADA-515-X 150 Ω / 50 Ω calibration adapters available separately for IEC 61000-4-6 test-level setting; integrates into Com-Power Conducted Immunity Test Systems.
