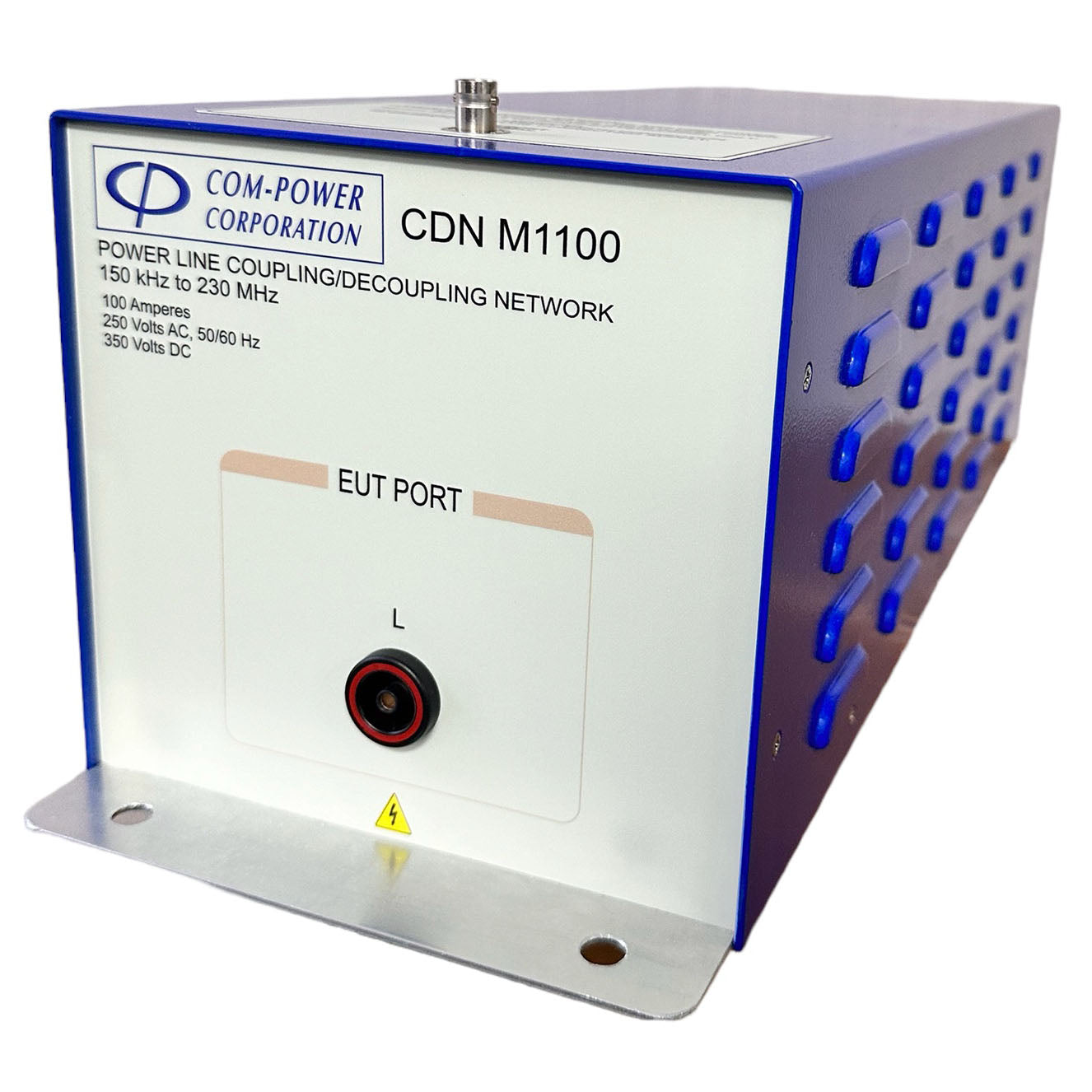

CDN-M1100 CDN Common mode adapter for CDN-M1100E

Single-line 100 A high-current power CDN, 150 kHz–230 MHz — the highest single-line current rating in the M-series, designed for very-high-current single conductors per IEC 61000-4-6.

5.2 mm banana sockets with shrouded sheath — oversized terminals rated for 100 A continuous current at 250 VAC / 350 VDC, distinct from the standard 4 mm 25/50 A connectors.

150 Ω common-mode impedance, 9.5 dB VDF, 50 Ω BNC RF port — standard IEC 61000-4-6 coupling profile maintained at very high current capacity.

High-current DC bus and battery systems — large UPS battery strings, telecom −48 V plants, and heavy-duty traction battery testing where one bus conductor draws 100 A.

Industrial welding and electric-arc equipment — high-current single-conductor RF immunity work for heavy industrial equipment per CISPR 11 / IEC 61000-6-2.

Forklift, AGV, and industrial vehicle 24/48 VDC systems — high-current battery-powered industrial mobility platforms requiring 100 A per-conductor stress testing.

EV traction inverter and motor logic supply lines — electric-vehicle propulsion electronics where individual high-current bus rails must be qualified independently.

NIST-traceable individual calibration with three-year warranty — ISO/IEC 17025 accredited calibration optional; ADA-515-X 150 Ω / 50 Ω calibration adapters available separately for IEC 61000-4-6 test-level setting; integrates into Com-Power Conducted Immunity Test Systems.
