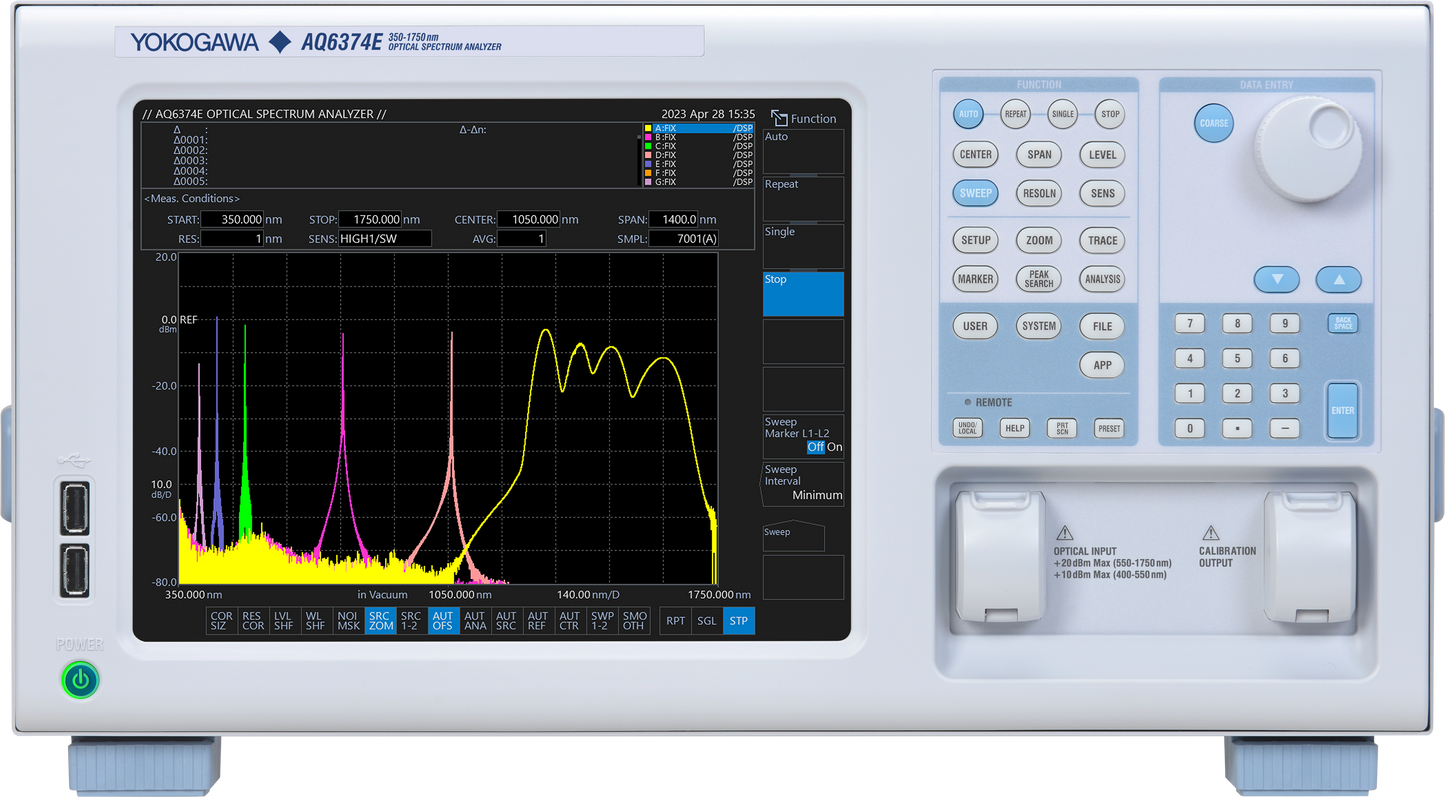

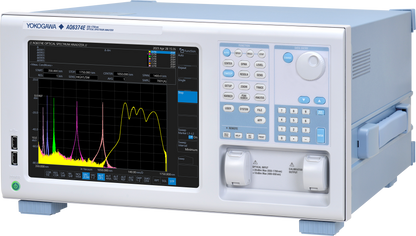

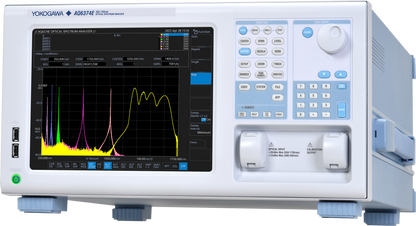

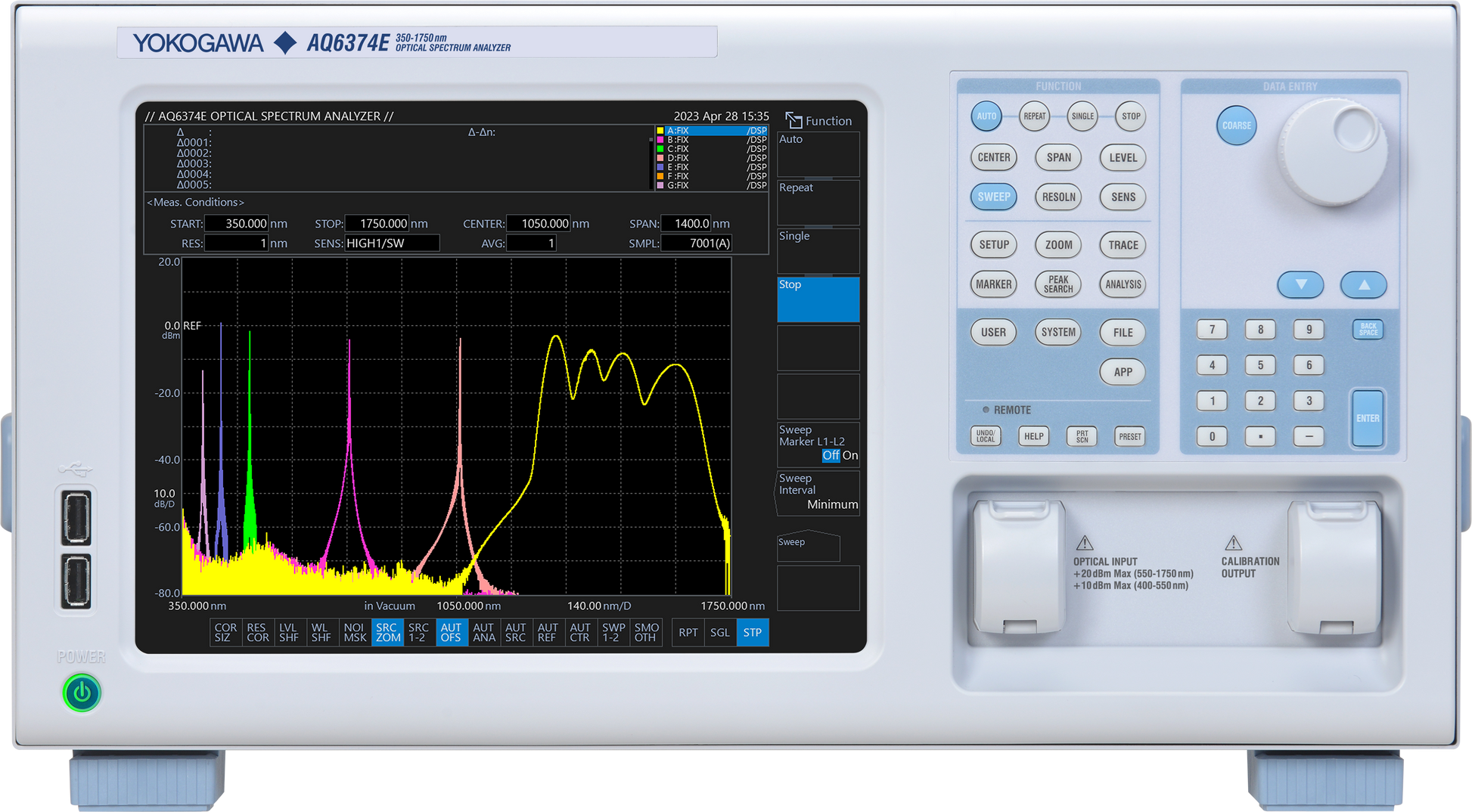

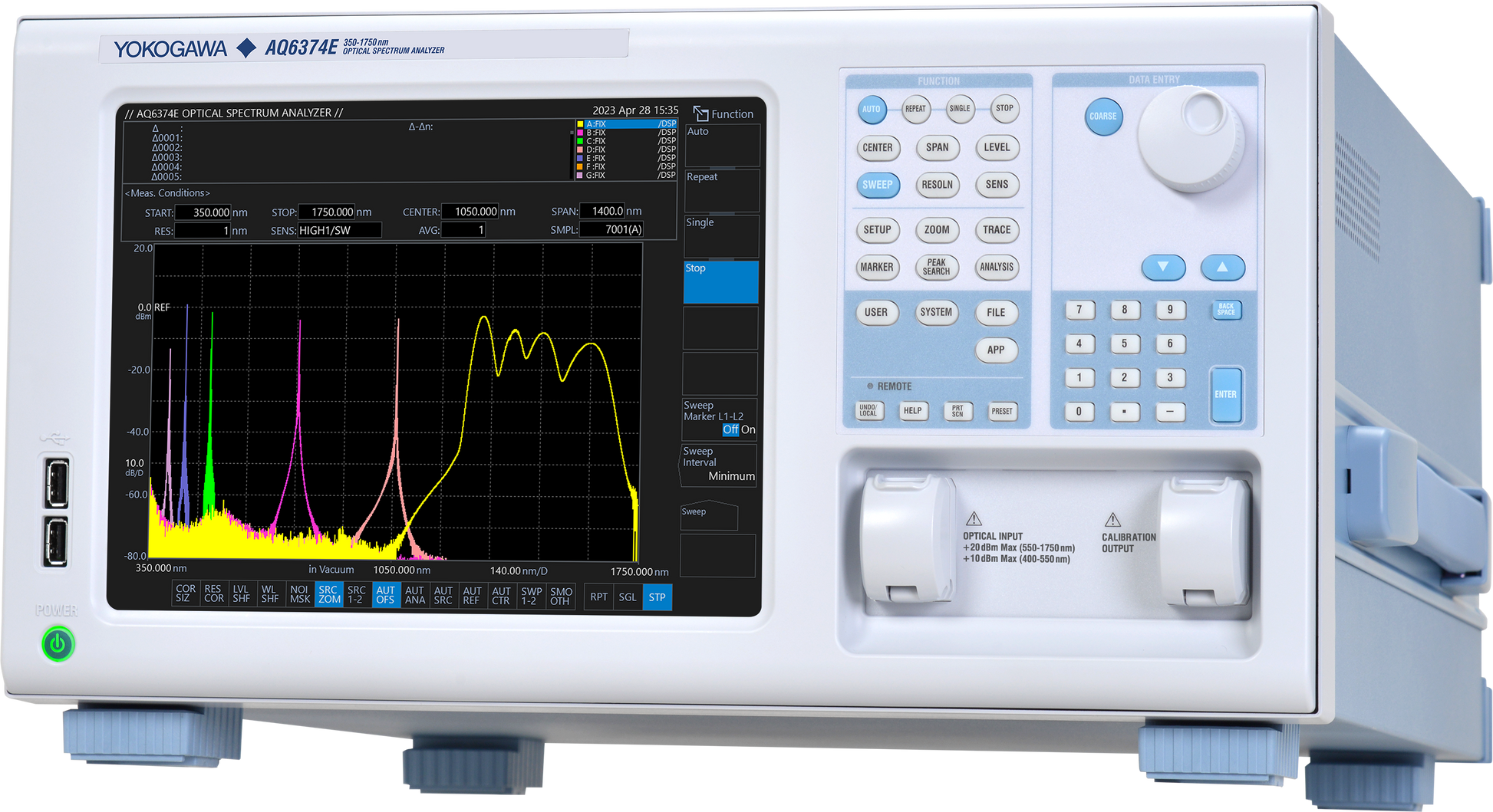

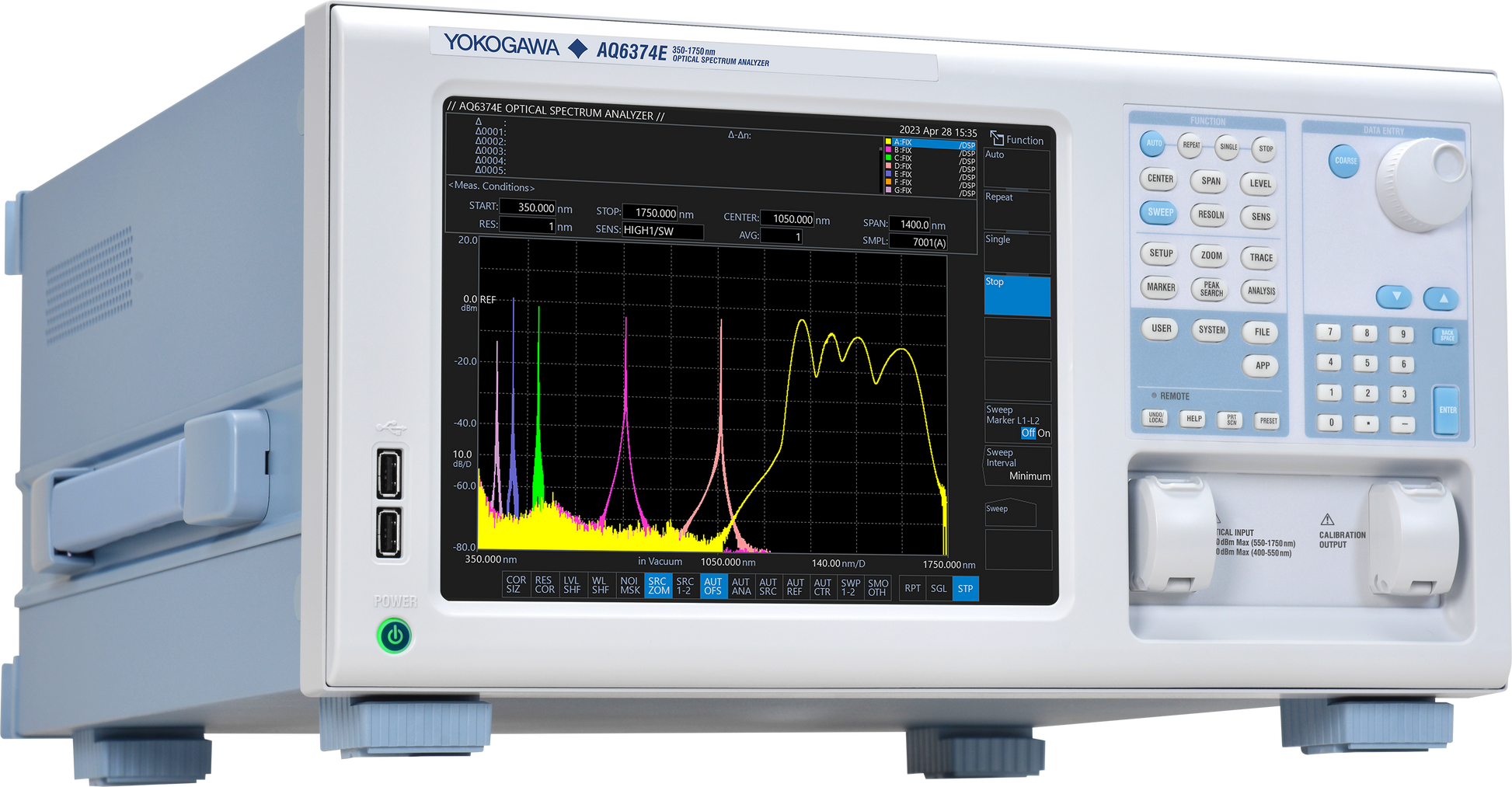

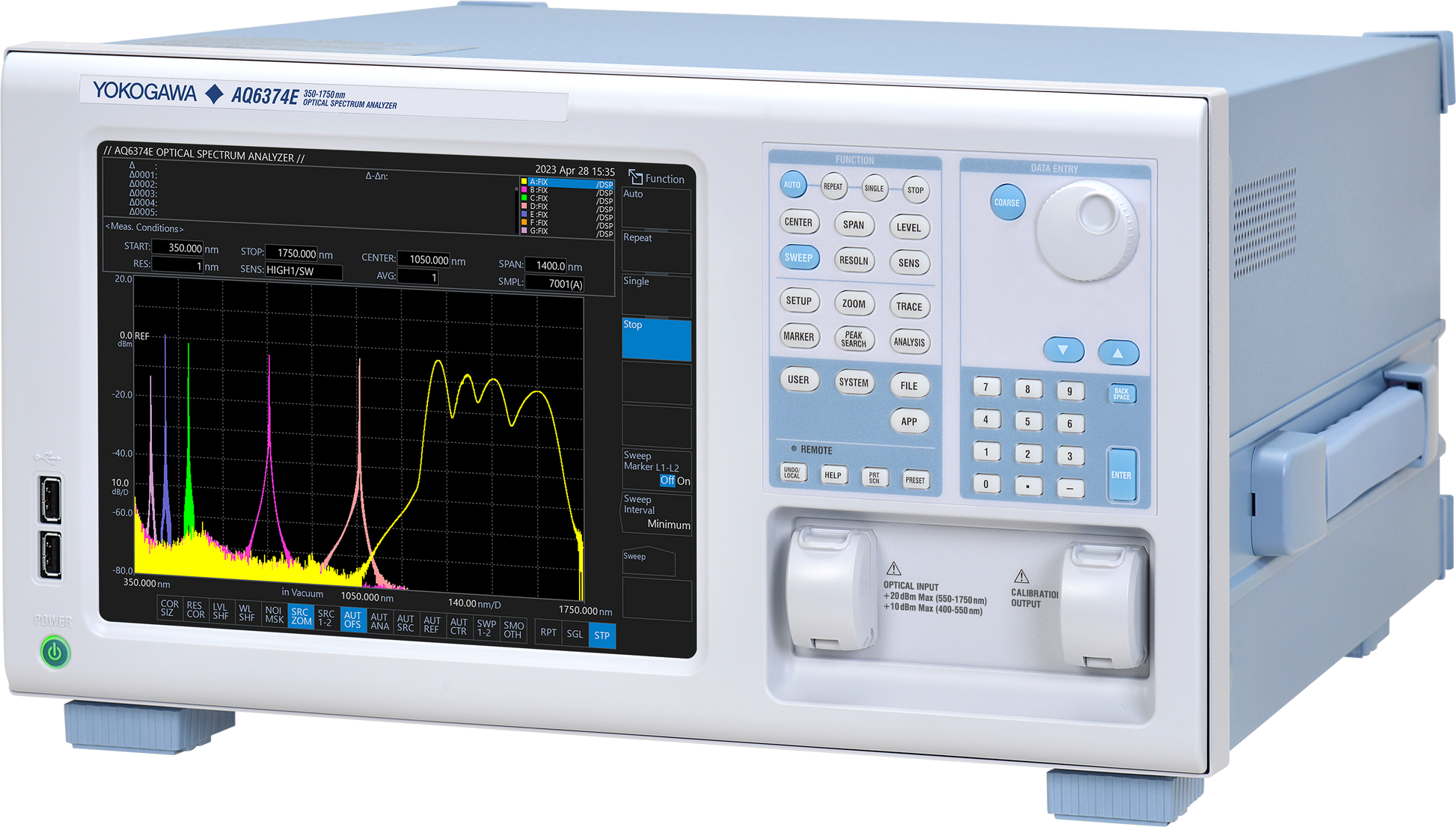

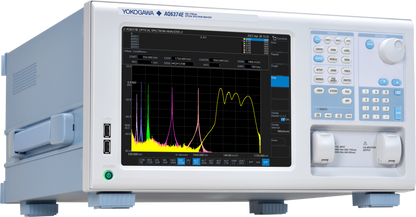

AQ6374E Optical Spectrum Analyzer 350 - 1750 nm

Wide Wavelength Range & High Performance OSA

The AQ6374E Wide Range Optical Spectrum Analyzer covers wavelengths from 350 to 1750 nm, spanning visible light (380–780 nm) and telecommunication wavelengths, and is well suited for next-generation fiber research, including hollow-core fiber technologies.

It delivers high optical performance and provides clear, reliable insight into laser spectra and optical signals, supporting efficient development, evaluation, and characterization across research, manufacturing, and advanced photonics applications.


Wavelength

Regular price $0.00
Sale price $0.00 Regular price

Key Features

  • Wide wavelength range: 350–1750 nm
  • High wavelength resolution: 0.05 nm
  • High wavelength accuracy: ±0.05 nm (633/1523 nm), ±0.2 nm(350–1750 nm)
  • Close-in dynamic range: 60 dB (λPK ±1 nm)
  • Wide level range: +20 to −80 dBm
  • High sensitivity: −80 dBm (900–1600 nm), −70 dBm (400–900nm)
  • Fast measurement speed: 0.5 s (100 nm span)
