Keithley

2600B

$158,000.00

Key Features

  • Industry leading 10 A @ 10 V, 10 microsecond pulse output
  • No tuning required; works with inductive loads up to 3 μH
  • Dual 1 Megasample/second digitizers for high speed I/V pulse measurements (pulser function only)
  • DC capability up to ±40 V @ ±1.0 A, 40 Wat
  • TSP technology embeds complete test programs inside
    the instrument for best-in-class system-level throughput
  • TSP-Link expansion technology for multi-channel parallel test without a mainframe
  • USB 2.0, LXI Core, GPIB, RS-232, and digital I/O interfaces
  • Supported in the Keithley KickStart non-programming
    software tool
Model
Channels
$158,000.00
$158,000.00

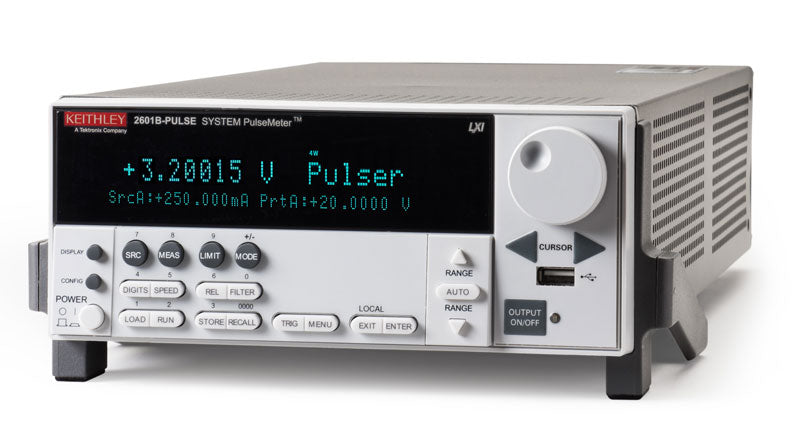

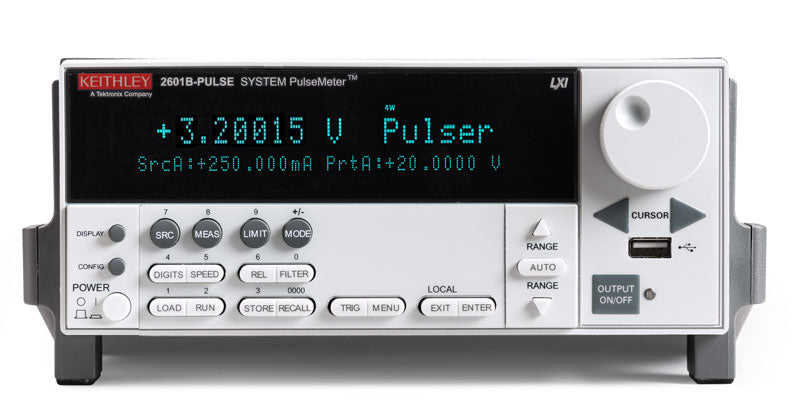

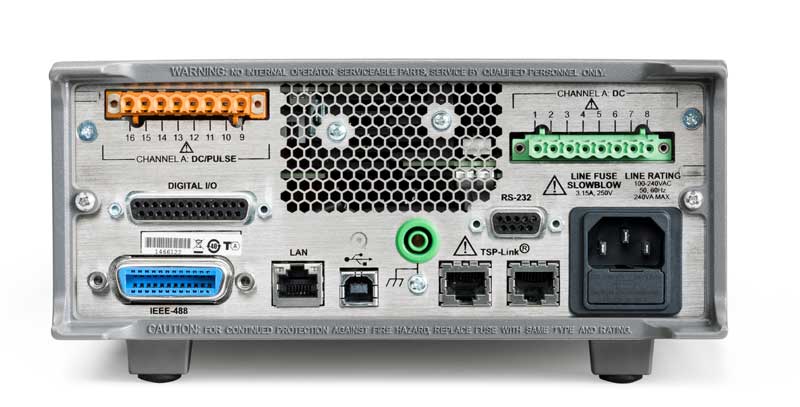

2600B Series SMU

Keithley’s Series 2600B System SMU instruments are the industry standard current-voltage source and measure solution for highly automated production test applications. Both dual- and single-channel models tightly integrate a precision power supply, true current source, DMM, and electronic load with pulse generating capabilities. Plus, TSP® technology runs complete test programs for automated system applications, and TSP-Link® technology enables daisy-chaining up to 64 channels for high volume parallel test.

2600B

$158,000.00
