1466 6kHz-110GHz

Product Features

  • Excellent spectral purity: SSB phase noise -145 dBc/Hz @10 kHz offset at 1 GHz, -132 dBc/Hz @10 kHz offset at 10 GHz; wideband noise -161 dBc/Hz @30 MHz offset at 20 GHz; spurious <-80 dBc at 10 GHz; harmonics <-55 dBc
  • Full range of analog modulation: AM, FM, ΦM and pulse modulation; complex pulse modes including double pulse, pulse train, PRF jittering/staggering/sliding; min pulse width down to 20 ns (option)
  • 110 GHz coaxial frequency coverage (6 kHz–110 GHz depending on model); expandable to 750 GHz with Ceyear 8240X analog signal source extender
  • Large dynamic range / high output power: settable power from -150 dBm to about +25 dBm (model/option dependent)
  • Dual-RF channel option (one main unit, two independently settable channels)
  • Step, list, power and analog (ramp) sweep modes
  • 11.6-inch high-resolution touch screen with graphics-guided signal-flow UI
  • Flexible user-defined control menus / personalized interface
  • SCPI command real-time recording with automatic VS (C++/C#), Qt, Matlab, LabVIEW example project generation
  • Cross-platform web browser based remote control; multi-client sync; mobile browser access
Frequency Range
Channels
Download datasheet

Interested in this product?

Send us your details and we’ll get back to you with availability, pricing, and any additional information you need.

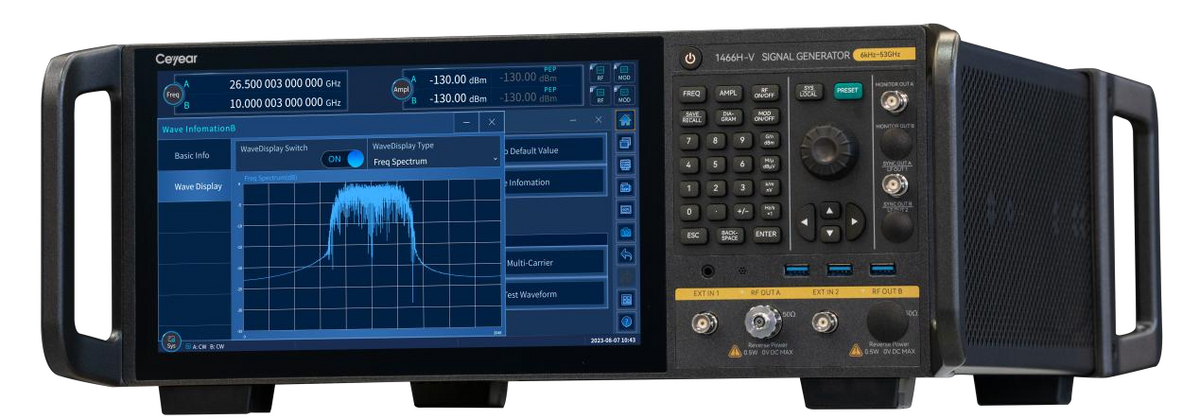

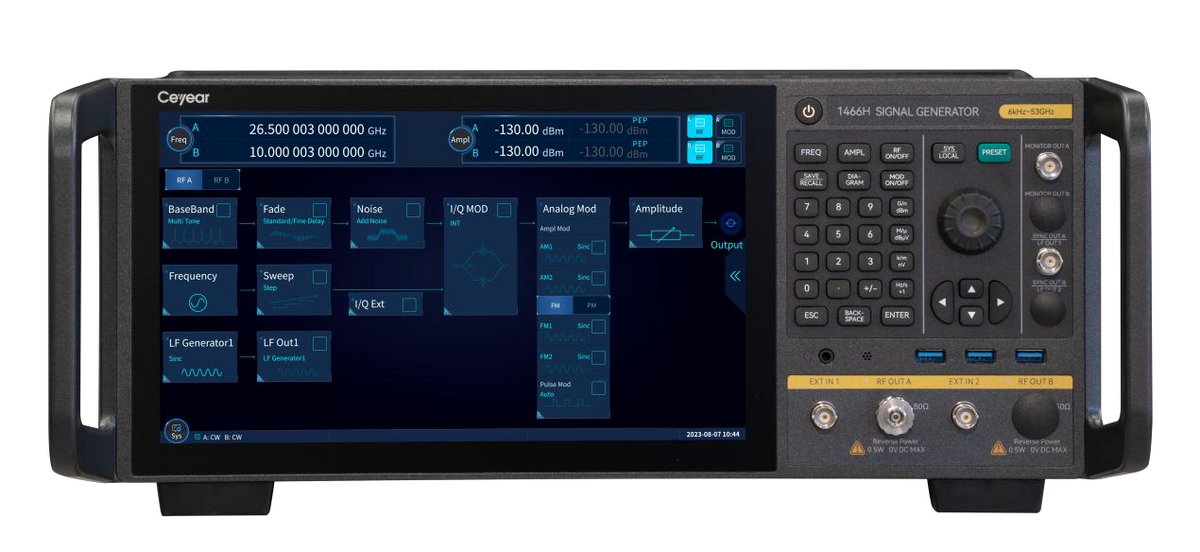

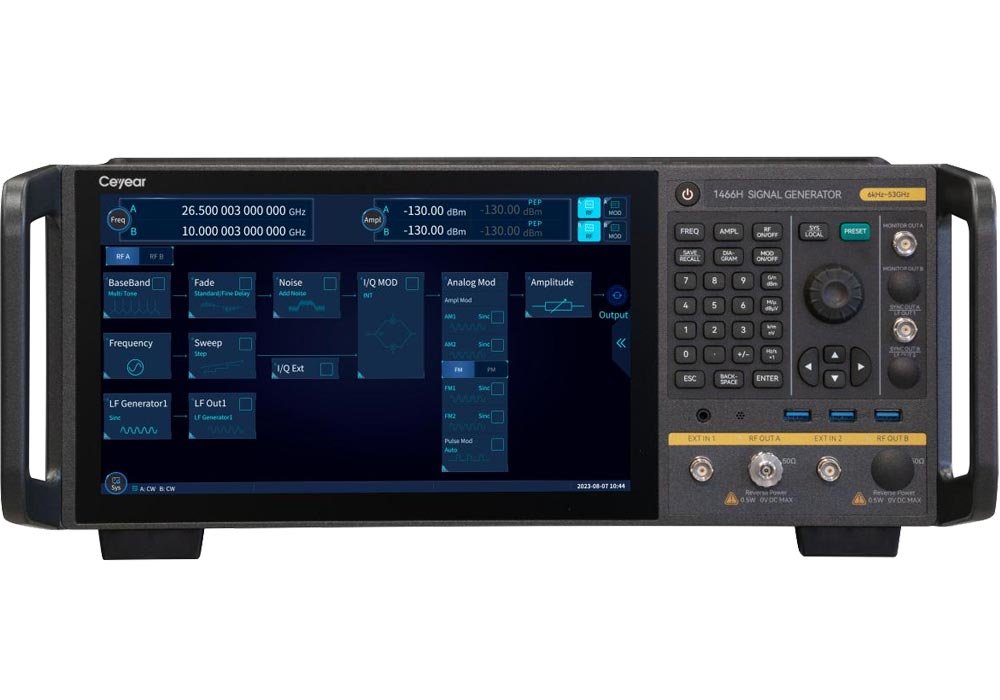

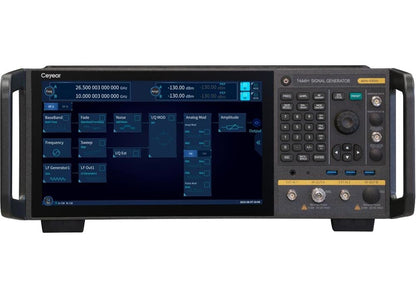

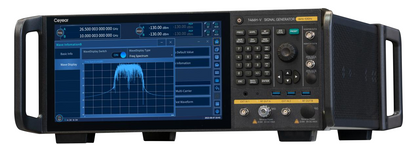

1466 Series Analog Signal Generator

Ceyear 1466 analog signal generator is created to meet the varied test requirements with top performance and functionality, especially in higher frequencies, higher signal spectral purity, higher output power, and dual-RF channels. Also rich built-in functions such as analog scanning, analog modulation and pulse modulation could bring more convenience to daily testing. Friendly designed human-computer interaction, including graphics guided operation, browser based remote control, power meter automatic connection and identification, SCPI command recording, as well as interface user customization could speed up the test operation. The Ceyear 1466 analog signal generator is an ideal choice for high standard testing in components, modules, machines and systems.
